High Strength 8-3100 mesh Stainless Steel Woven Mesh 40 60 Micron
High Strength 8-3100 mesh Stainless Steel Woven Mesh 40 60 Micron
High Strength 8-3100 mesh Stainless Steel Woven Mesh 40 60 Micron
High Strength 8-3100 mesh Stainless Steel Woven Mesh 40 60 Micron
Specifications
Brand Name :
JIUFU
Model Number :
JF-1005
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
1 Square Meter
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Square Meter per Day
Delivery Time :
7-20 days
Packaging Details :
Plastic Film + Water-proof Paper + Woven Bag + Wooden Box or Pallet
Product Name :
Stainless Steel Woven Wire Mesh
Weave Type :
Plain, Twill, Reverse Dutch Woven
Material :
aisi 304, aisi 316, aisi 316L
Wire Diameter :
0.019mm-0.63mm
Mesh Count :
8-3100mesh
Filter Rating :
3 microns -300 microns
Width :
1-1.6m
Weight :
0.45-5.42kg/m2
Feature :
micron filter accuracy
Application :
precision pressure filter
Description

High Strength 8-3100 mesh Stainless Steel Woven Mesh 40 60 Micron

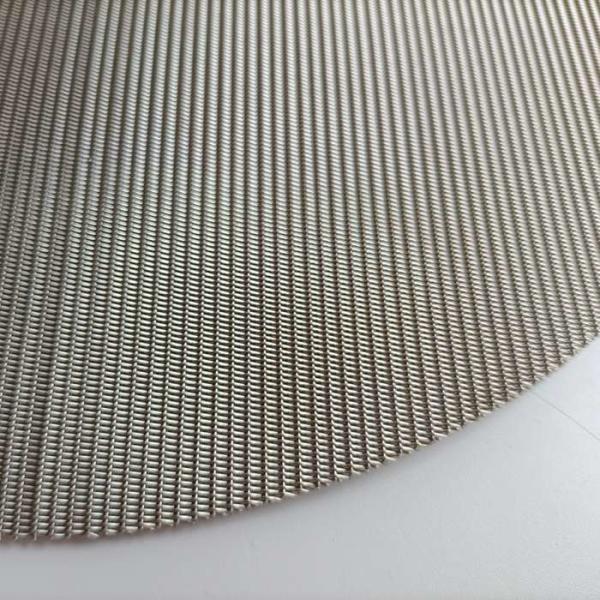

Stainless Steel Woven Mesh -- Dutch Wire Mesh

Dutch Wire Mesh, its warp and weft wire diameter is different, and different mesh count. Reasonable combination of wire and mesh to achieve square mesh (means ordinary stainless steel mesh) can not reach the filtering density. So the dutch wire mesh is fine filter dense mesh, and generally, the warp diameter is larger than the weft diameter.

The length direction is the warp wire, the width direction is the weft wire. The characteristics are: the warp is sparse and the weft is dense, and the warp is thick and the weft is thin.

Material: Stainless steel wire, Nickel wire, Black iron wire, Copper wire, etc
Weave Type: Plain Dutch Weave; Twilled Dutch Weave; Reverse Dutch Weave
Wire Diameter: Plain Dutch Weave -- 0.05mm-0.63mm
Twilled Dutch Weave -- 0.019mm-0.1mm
Mesh Count: Plain Dutch Weave -- 12x64 mesh, 24x110 mesh, 45x250 mesh, 90x550 mesh, etc
Twilled Dutch Weave -- 120x400 mesh, 165x1100 mesh, 254x2000 mesh, etc
Reverse Dutch Weave -- 72x15 mesh, 132x17 mesh, 152x24 mesh, 260x40 mesh, 325x38 mesh
Filter Precision Value: 3 microns - 300 microns
Width: 1-1.6m
Feature: Stable and Fine Filtration Performance
Application: Used for precision pressure filter, fuel filter, vacuum filter, also suitable for aerospace, petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and other industries.
High Strength 8-3100 mesh Stainless Steel Woven Mesh 40 60 Micron
High Strength 8-3100 mesh Stainless Steel Woven Mesh 40 60 Micron
Stainless Steel Woven Mesh Packing
In Rolls: Hard Paper Tube + Waterproof Paper + Woven Bag + Wooden Box / Pallet
In Pieces: Woven Bag / Carton + Wooden Box / Pallet
High Strength 8-3100 mesh Stainless Steel Woven Mesh 40 60 Micron
High Strength 8-3100 mesh Stainless Steel Woven Mesh 40 60 Micron
