ISO 8-25 Micron Stainless Steel Screen 316l Stainless Steel Wire Mesh
ISO 8-25 Micron Stainless Steel Screen 316l Stainless Steel Wire Mesh
ISO 8-25 Micron Stainless Steel Screen 316l Stainless Steel Wire Mesh
ISO 8-25 Micron Stainless Steel Screen 316l Stainless Steel Wire Mesh
Specifications
Brand Name :
JIUFU
Model Number :
JF-1004
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
1 Square Meter
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Square Meter per Day
Delivery Time :
7-20 days

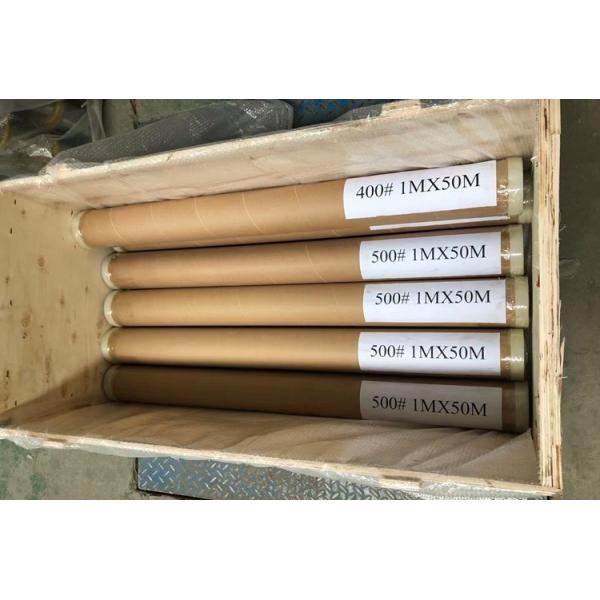

Packaging Details :
Plastic Film + Water-proof Paper + Woven Bag + Wooden Box or Pallet
Product Name :
Stainless Steel Woven Mesh
Weave Type :
Twill Dutch Weave
Material :
304, 316, 316L
Wire Diameter :
0.019mm-0.1mm
Mesh Count :
91-3100mesh
Filter Rating :
3um-25um
Width :
1-1.6m
Weight :
0.45-1.24kg/m2
Feature :
micron filter accuracy
Application :
Filtration
Description

ISO 8-25 Micron Stainless Steel Screen 316l Stainless Steel Wire Mesh

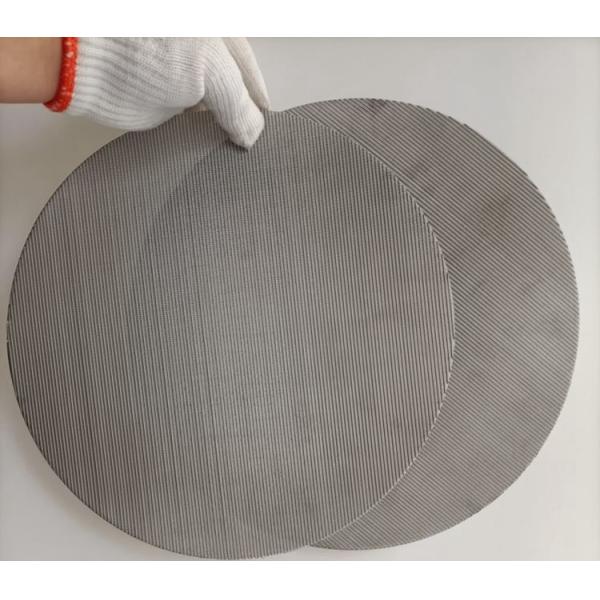

Dutch Weave Stainless Steel Woven Mesh has four types of weaves, which has plain dutch woven, twill dutch woven, reverse dutch woven and five heddle weave.


Dutch Weave Wire Mesh can be weaved by stainless steel wire, nickel wire, brass wire and galvanized wire.

Stainless Steel Twill Dutch Weave Wire Mesh Specification

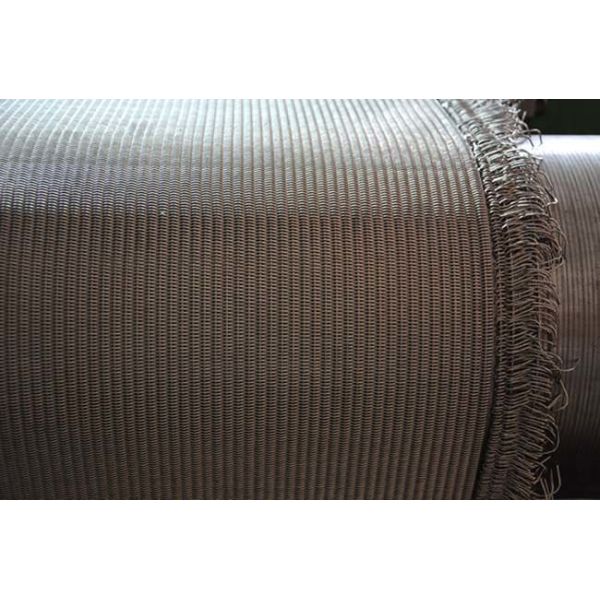

Twill Dutch Weave Wire Mesh is the larger diameter warp wires successively pass over and under the lighter diameter weft wires. Each pass of the weft wires shifts the over and under movement two wires. The weft wires are driven up close, resulting in a tightly woven filter cloth with tapered or wedge shaped openings.
Twill Weave Dutch Wire Mesh
Filter Number

Mesh Count

(warp*weft)

Wire Diameter

(warp*weft)

Hole Size

(um)

Weight

(kg/m2)
360# 91 x 787 0.10mm x 0.07 25 1.24
400# 101 x 900 0.10mm x 0.063 20 1.22
472# 120 x 400 0.10mm x 0.075 — —
500# 127 x 1100 0.07mm x 0.05 17 0.81
630# 160 x 1500 0.063mm x 0.04 15 0.62
650# (1) 165 x 400 0.071 mm x 0.06 — —
650# (2) 165 x 600 0.071mm x 0.05 — —
650# (3) 165 x 800 0.071 mm x 0.05 25 —
650# (4) 165 x 1100 0.071 mm x 0.045 — —
650# (5) 165 x 1400 0.071mm x 0.04 16 0.76
685# 174 x 1700 0.063mm x 0.032 13 0.61
787#(1) 200 x 600 0.071mm x 0.06 — —
787# (2) 200 x 800 0.071mm x 0.06 — —
787# (3) 200 x 1400 0.071mm x 0.04 12 0.8
795# 202 x 1760 0.05mm x 0.032 10 0.6
850# 216 x 1860 0.045mm x 0.030 9 —
1000# 254 x 2000 0.04mm x 0.028 8 0.5
1125# 285 x 2235 0.036mm x 0.025 7 —
1228# 312 x 2100 0.035mm x 0.025 — —
1250# 318 x 2235 0.036mm x 0.025 — —
1280# 325 x 2300 0.035mm x 0.025 5 0.45
1575# 400 x 3100 0.035mm x 0.019 3 —
Width: 1-1.6m

ISO 8-25 Micron Stainless Steel Screen 316l Stainless Steel Wire Mesh

ISO 8-25 Micron Stainless Steel Screen 316l Stainless Steel Wire Mesh

ISO 8-25 Micron Stainless Steel Screen 316l Stainless Steel Wire Mesh

FAQ

1.What's the order process?

1) Inquiry---provide us all clear requirements (total qty and package details).

2) Quotation---official quotation from with all clear specifications from our professional team.

3) Marking Sample --- confirm all quotation details and the final sample.

4) Production---mass production.

5) Shipping---by sea or by air.

2.What terms of payment you use?

As for the payment terms, it depends on the total amount.

3.How do you ship the products?

By Sea, By Air, By courier, TNT, DHL, Fedex, UPS Etc. It is up to you.

4.What is the average delivery time?

Sample usually takes about 5-10 days depending on product type. Bulk order usually takes about 25 days.

5.How would I get a price list for a wholesaler?

Please e-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
