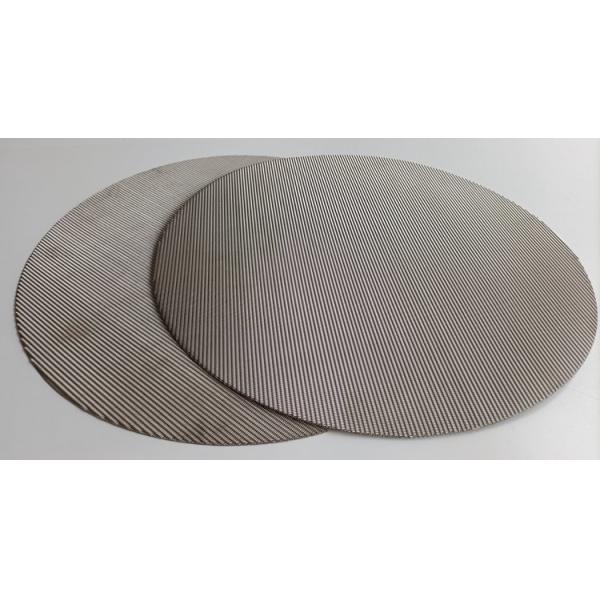

1m-1.6m 30 Micron Stainless Steel Mesh 304 Stainless Steel Woven Wire Mesh
1m-1.6m 30 Micron Stainless Steel Mesh 304 Stainless Steel Woven Wire Mesh
1m-1.6m 30 Micron Stainless Steel Mesh 304 Stainless Steel Woven Wire Mesh
1m-1.6m 30 Micron Stainless Steel Mesh 304 Stainless Steel Woven Wire Mesh
Specifications
Brand Name :
JIUFU
Model Number :
JF-1003
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
1 Square Meter
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Square Meter per Day
Delivery Time :
7-20 days
Packaging Details :
Plastic Film + Water-proof Paper + Woven Bag + Wooden Box or Pallet
Product Name :
Stainless Steel Dutch Woven Mesh
Weave Type :
Plain Dutch Weave
Material :
SS304
Wire Diameter :
0.05mm-0.63mm
Mesh Count :
8-550mesh
Filter Rating :
30 microns -300 microns
Width :
1-1.6m
Weight :
1.22-5.42kg/m2
Feature :
Micron Grade Filter
Application :
Filtration
Description

1m-1.6m 30 Micron Stainless Steel Mesh 304 Stainless Steel Woven Wire Mesh

Dutch Weave Stainless Steel Woven Mesh has four types of weaves, which has plain dutch woven, twill dutch woven, reverse dutch woven and five heddle weave.


Dutch Weave Wire Mesh can be weaved by stainless steel wire, nickel wire, brass wire and galvanized wire.

Stainless Steel Plain Dutch Weave Wire Mesh Specification

Plain Dutch Weave Wire Mesh is woven with a large wire diameter in the warp direction and a relatively smaller wire in the weft direction. This weave has great strength and is available in wide range of micron ranges. It is primarity used to filter a wide range of liquid and slurry products.
Plain Dutch Weave Mesh
Filter Number

Mesh Count

(warp*weft)

Wire Diameter

(warp*weft)

Hole Size

(um)

Weight

(kg/m2)
32# 8 x 62 0.63mm x 0.45mm 300 5.42
40# 10 x 79 0.50mm x 0.355mm 250 3.16
48# 12 x 64 0.58mm x 0.40mm 280 2.90
55# 14 x 88 0.40mm x 0.30mm 180 2.54
76# 19 x 140 0.315mm x 0.20mm 140 1.88
80# 20 x 300 0.35mm x 0.20mm — 3.60
95# 24 x 110 0.355mm x 0.25mm 120 2.45
100# 25 x 140 0.28mm x 0.20mm 100 1.95
120# 30 x 150 0.25mm x 0.18mm 80 1.68
140# 35 x 175 0.224mm x 0.16mm 71 1.52
160# 40 x 200 0.20mm x 0.14mm 60 1.40
180# 45 x 250 0.16mm x 0.112mm 56 1.09
200# 50 x 250 0.14mm x 0.11mm 53 1.04
220# 55.5 x 280 0.14mm x 0.10mm 50 0.92
240# 65 x 330 0.11 mm x 0.08mm 36 0.71
280#(1) 70 x 350 0.11 mm x 0.08mm 35 0.72
280# (2) 70 x 385 0.11 mm x 0.07mm 32 0.75
300# 78 x 700 0.11 mm x 0.08mm 30 1.39
315#(1) 80 x 400 0.10mm x 0.065mm 29 0.62
315#(2) 80 x 600 0.10mm x 0.06mm — —
315#(3) 80 x 800 0.15mm x 0.04mm — —
320# 81 x 780 0.10mm x 0.07mm 30 1.22
354# 90 x 550 0.12mm x 0.05mm — —
Width:1-1.6m

1m-1.6m 30 Micron Stainless Steel Mesh 304 Stainless Steel Woven Wire Mesh

1m-1.6m 30 Micron Stainless Steel Mesh 304 Stainless Steel Woven Wire Mesh

1m-1.6m 30 Micron Stainless Steel Mesh 304 Stainless Steel Woven Wire Mesh

Company Certifications

We have exported more than 80 countries like USA, Australia, France, UK, Romania, Qatar, Singapore, India etc.

We provide certificate of origin for different countries, commercial invoice embassy seal, ISO certification, etc.

We can also provide other certifications if necessary. Thank you.
1m-1.6m 30 Micron Stainless Steel Mesh 304 Stainless Steel Woven Wire Mesh
1m-1.6m 30 Micron Stainless Steel Mesh 304 Stainless Steel Woven Wire Mesh
