Corrosion Resistant Stainless Steel Woven Mesh 0.015mm-2mm Wire Diameter
Corrosion Resistant Stainless Steel Woven Mesh 0.015mm-2mm Wire Diameter
Corrosion Resistant Stainless Steel Woven Mesh 0.015mm-2mm Wire Diameter
Corrosion Resistant Stainless Steel Woven Mesh 0.015mm-2mm Wire Diameter
Specifications
Brand Name :
JIUFU
Model Number :
JF-10015
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
10 Square Meter
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Square Meter per Day
Delivery Time :
7-20 days
Packaging Details :
Plastic Film + Water-proof Paper + Woven Bag + Wooden Box or Pallet
Product Name :
Stainless Steel Woven Mesh
Weave Type :
Plain Twill Dutch Weave
Material :
stainless steel, nickel, copper wire
Wire Diameter :
0.015mm-2mm
Mesh Count :
1-3000 mesh
Feature :
Corrosion Resistant
Application :
screen filter
Mesh Type :
fine mesh, coarse mesh
Technique :
Woven mesh
Sample :
Avaliable
Description

Corrosion Resistant Stainless Steel Woven Mesh 0.015mm-2mm Wire Diameter

Stainless Steel Woven Mesh Parameter

Material: Stainless Steel Wire, Nickel Wire, Copper Wire, etc.

Stainless Steel Wire is divided into SUS 201, 202, 304, 316, 316L, 321, etc

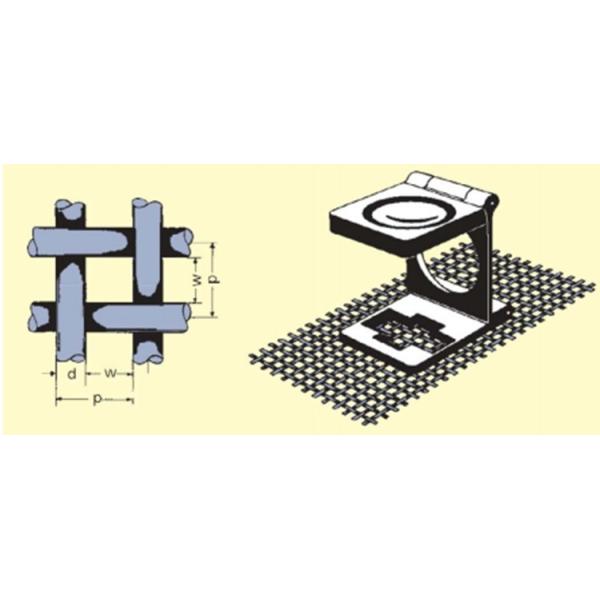

Mesh Count: The number of meshes per inch of length is called mesh.

The mesh number reflects the thinness or density of the mesh.
Generally, stainless steel meshes higher than 80 meshes are called fine meshes

those below 80 meshes are called coarse meshes

Corrosion Resistant Stainless Steel Woven Mesh 0.015mm-2mm Wire Diameter

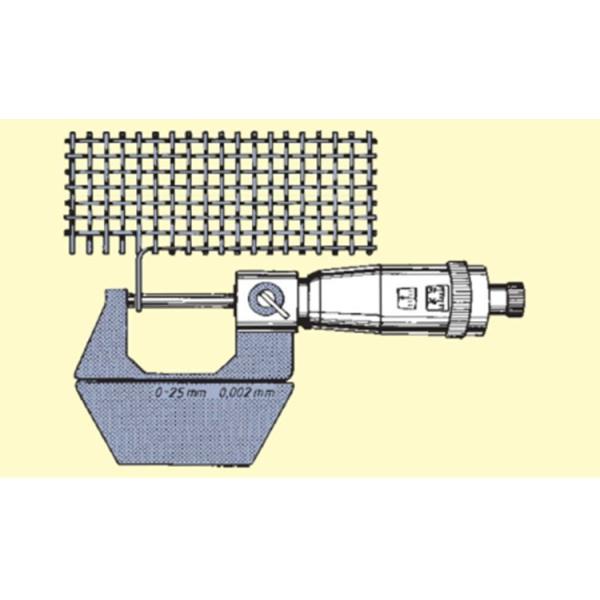

Wire Diameter: Unit -- mm, wire number, inch.
In length direction -- Warp (warp wire / line wire)

In width direction -- Weft (cross wire / weft wire / shute wire)

Corrosion Resistant Stainless Steel Woven Mesh 0.015mm-2mm Wire Diameter

Aperture / Mesh Size / Opening Size / Hole Size: Unit -- mm, inch.

Corrosion Resistant Stainless Steel Woven Mesh 0.015mm-2mm Wire Diameter

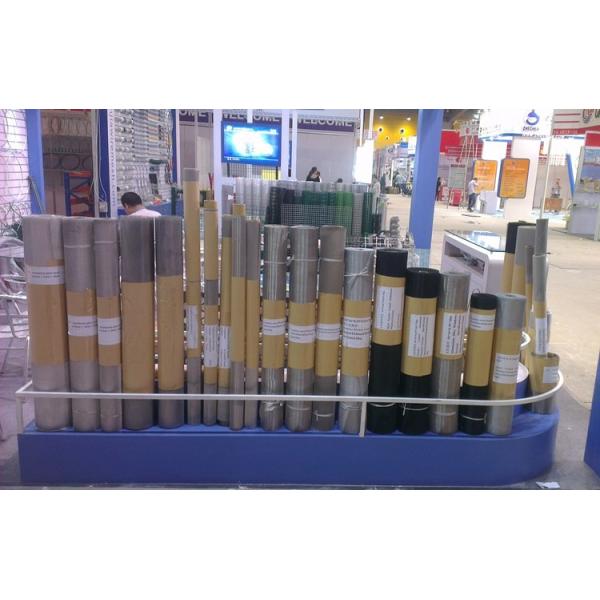

Stainless Steel Woven Mesh Pictures:

Corrosion Resistant Stainless Steel Woven Mesh 0.015mm-2mm Wire Diameter

Stainless Steel Woven Mesh Specification

Weaving Type Mesh Count Wire Diameter Aperture (mm) Weight (kg/m2)
Plain 1 2mm 23.4 2.0
Plain 2 1.5mm 11.2 2.25
Plain 3 1.0mm 7.466 1.5
Plain 4 0.9mm 5.45 1.62
Plain 5 0.8mm 4.28 1.6
Plain 6 0.7mm 3.53 1.47
Plain 7 0.6mm 3.02 1.26
Plain 8 0.5mm 2.675 1.0
Plain 9 0.5mm 2.322 1.125
Plain 10 0.8mm 1.74 3.2
Plain 11 0.7mm 1.609 2.695
Plain 12 0.6mm 1.516 2.16
Plain 13 0.5mm 1.453 1.625
Plain 14 0.4mm 1.414 1.12
Plain 15 0.4mm 1.293 1.2
Plain 16 0.35mm 1.237 0.98
Plain 17 0.35mm 1.144 1.041
Plain 18 0.35mm 1.061 1.10
Plain 19 0.35mm 0.986 1.16
Plain 20 0.4mm 0.97 0.97
Plain 21 0.3mm 0.909 0.945
Plain 22 0.3mm 0.854 0.99
Plain 23 0.25mm 0.854 0.718
Plain 24 0.25mm 0.858 0.48
Plain 25 0.2mm 0.816 0.50
Plain 26 0.2mm 0.776 0.52
Plain 27 0.2mm 0.740 0.54
Plain 28 0.3mm 0.607 1.26
Plain 29 0.3mm 0.575 1.30
Plain 30 0.3mm 0.546 1.35
Plain 40 0.25mm 0.385 1.25
Plain 50 0.2mm 0.308 1.0
Plain 60 0.15mm 0.273 0.675
Plain 70 0.14mm 0.222 0.686
Plain 80 0.12mm 0.197 0.576

Mesh Count Wire Diameter (mm) Aperture (mm)
80 0.12 0.197
100 0.1 0.154
120 0.08 0.131
150 0.07 0.099
200 0.05 0.077
300 0.03 0.054
400 0.018 0.0455
500 0.0128 0.038
