PW TW DW Weaving Stainless Steel Woven Mesh 316 Ss Wire Mesh
PW TW DW Weaving Stainless Steel Woven Mesh 316 Ss Wire Mesh
PW TW DW Weaving Stainless Steel Woven Mesh 316 Ss Wire Mesh
PW TW DW Weaving Stainless Steel Woven Mesh 316 Ss Wire Mesh
Specifications
Brand Name :
JIUFU
Model Number :
JF-10016
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
10 Square Meter
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Square Meter per Day
Delivery Time :
7-20 days
Packaging Details :
Plastic Film + Water-proof Paper + Woven Bag + Wooden Box or Pallet
Product Name :
Stainless Steel Woven Wire Mesh
Weave Type :
PW TW DW
Material :
201, 202, 304, 316, 316L
Wire Diameter :
0.015mm-2mm
Mesh Count :
1-3000 mesh
Feature :
Different filter precision
Application :
screen filter
Mesh Type :
fine mesh, coarse mesh
Technique :
Woven mesh
Sample :
Avaliable
Description

PW TW DW Weaving Stainless Steel Woven Mesh 316 Ss Wire Mesh

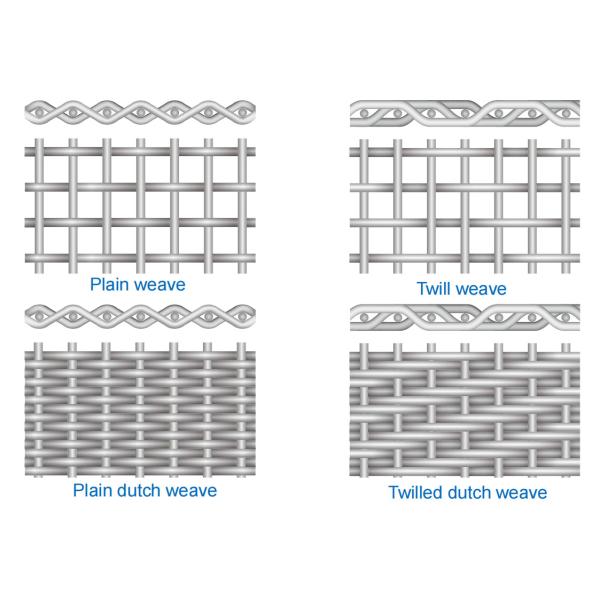

Stainless Steel Woven Wire Mesh Weaving Type:

①: Plain weave (PW)
Each warp thread crosses above and below each weft thread, the diameter thread is the same thickness as the weft thread, and the warp thread and the weft thread form a 90-degree angle.


②: Twill weave (TW)
The weaving method in which each warp thread crosses up and down every 2 weft threads, and each weft thread crosses over each 2 diameter threads.


③: Dense weave (DW)
The dense mesh is also called a mat mesh. The wire diameters of the warp and weft are different, and the number of meshes is also different.

Dense mesh is divided into mat type mesh plain weave and mat type mesh twill weave.


④: Mat-type mesh twill weave

Each diameter wire crosses up and down every 2 weft wires, and each weft wire crosses above and below every 2 diameter wires.

PW TW DW Weaving Stainless Steel Woven Mesh 316 Ss Wire Mesh

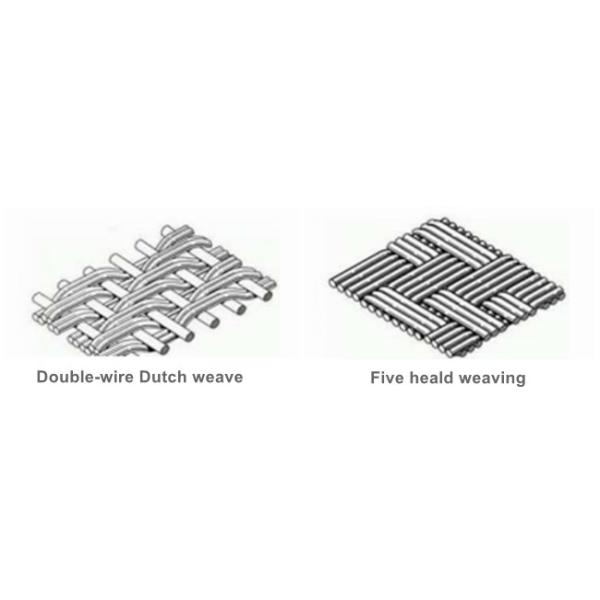

⑤: Double-wire Dutch weave

This weave is very similar to the twill dutch weave, there are two wefts, which can be stacked closely with the warp. This silk cloth is mostly used for filtering micron-level filtration.


⑥: Five heald weaving

This kind of weaving warp and weft is not made of single wire but woven with several separate wires. This weave is based on the twill weave to provide a stronger and stronger.

PW TW DW Weaving Stainless Steel Woven Mesh 316 Ss Wire Mesh

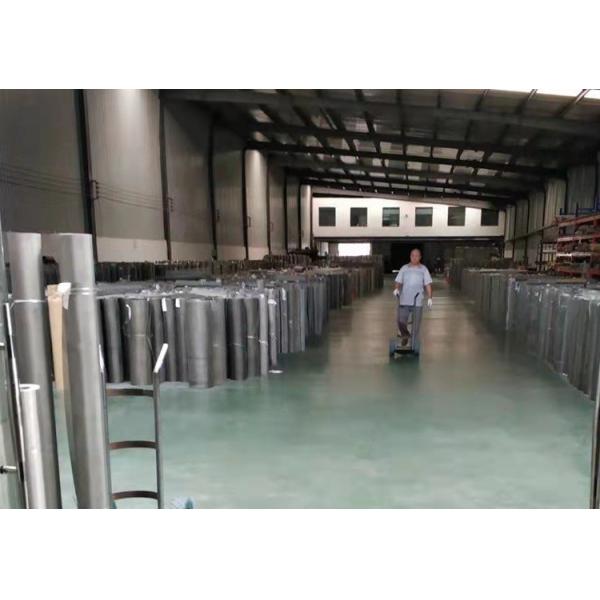

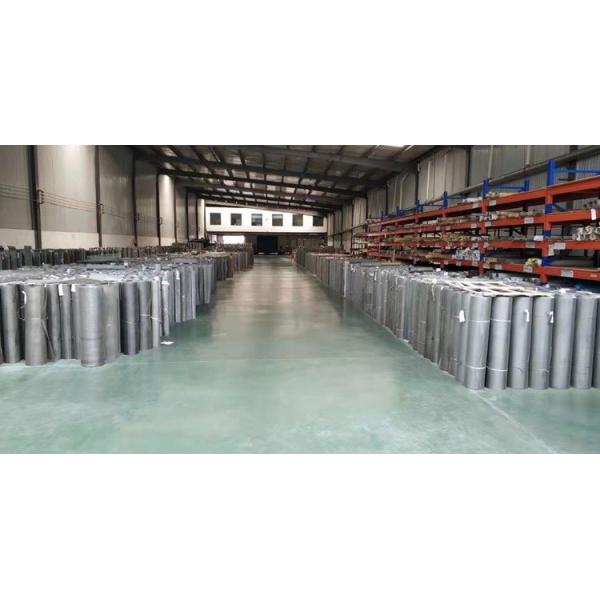

Stainless Steel Woven Wire Mesh Stock

PW TW DW Weaving Stainless Steel Woven Mesh 316 Ss Wire Mesh

PW TW DW Weaving Stainless Steel Woven Mesh 316 Ss Wire Mesh

FAQ
1.What's the order process?
1) Inquiry---provide us all clear requirements (total qty and package details).
2) Quotation---official quotation from with all clear specifications from our professional team.
3) Marking Sample --- confirm all quotation details and the final sample.
4) Production---mass production.
5) Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms, it depends on the total amount.
3.How do you ship the products?
By Sea, By Air, By courier, TNT, DHL, Fedex, UPS etc. It is up to you.
4.What is the average delivery time?
Sample usually takes about 5-10 days depending on product type. Bulk order usually takes about 20-35 days.
5.How would I get a price list for a wholesaler?
Please e-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
