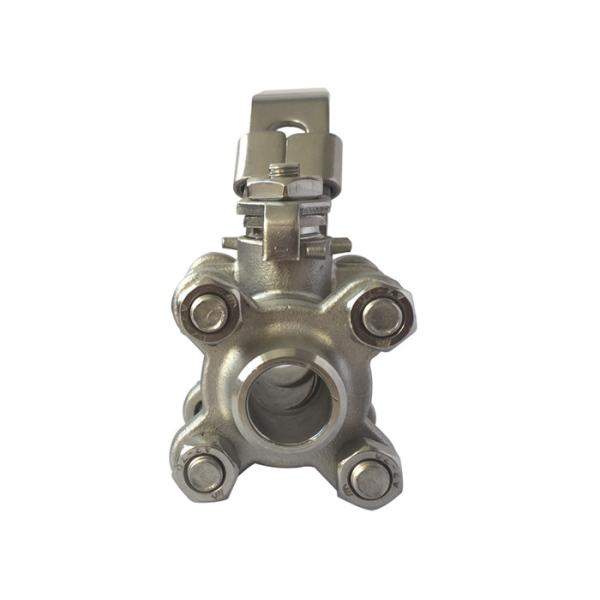

3 PC Stainless Steel Ball Valve , Butt Weld Ball Valve PN1.6MPa - PN7MPa
3 PC Stainless Steel Ball Valve , Butt Weld Ball Valve PN1.6MPa - PN7MPa
3 PC Stainless Steel Ball Valve , Butt Weld Ball Valve PN1.6MPa - PN7MPa
3 PC Stainless Steel Ball Valve , Butt Weld Ball Valve PN1.6MPa - PN7MPa
3 PC Stainless Steel Ball Valve , Butt Weld Ball Valve PN1.6MPa - PN7MPa
3 PC Stainless Steel Ball Valve , Butt Weld Ball Valve PN1.6MPa - PN7MPa
Specifications
Model Number :
YH-3 PC-02
Certification :
ISO& CE
MOQ :
5 PCS
Delivery Time :
30-45 days
Packaging Details :
Polywood box/ Pallet
Body Material :
CF8M/ CF8
Samples :
Free samples are available
Working Pressure :
-20-180
MOQ :
5 PCS
Pressure Class :
PN1.6-PN7MPa
Connection :
Female Thread
OEM Service :
Available
Package :
Polywood box/ Pallet
Description

3 PC Stainless Steel Ball Valve , Butt Weld Ball Valve PN1.6MPa - PN7MPa

1. Introduction

This type of construction is of swing-out design and easy inline maintenance. By removing body bolts & nuts the complete valve may be lifted out of the line or swing-out by keeping one bolt. The valve can easily swing out of the line providing complete entry and fast disassembly or maintenance. The swing away feature also maintains pipe alignment during inline maintenance. The 3-piece design offers the function of both valve as well as a union.

2. Application

The 3-piece design is available for various schedule pipes. It can be used in screw pipe ends, socket weld pipe ends, butt weld ends, extended butt weld pipe ends.

Standard

Design: ANSI B 16.34

Testing: API 598

Butt Weld End: ANSI B 16.25/GB 1224

Application

For general chemical and industrial service

Working Pressure: 6.3MPa, 1000 PSI

Applicable Medium: Water, Oil, Gas

Body Material: CF8, CF8M, CF3M

Optionals: Locking device

Design for in -line reparable and simple maintenance.

3. Pictures

SIZE 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3"
D 12.5 12.5 15 20 25 32 38 50 65 76
L 64 64 72 80 85 105 113 132 170 186
H 68.4 68.4 72 78 90.3 95.3 107 122 155 164
W 135 135 135 135 152 152 188 188 233 233
H1 38.4 38.4 42 48 55 60 70 85 109 118
h 9 9 9 9 11 11 15 15 20 20
ISO5211 F03/F04 F03/F04 F03/F04 F03/F04 F04/F05 F04/F05 F05/F07 F05/F07 F07/F10 F07/F10

3 PC Stainless Steel Ball Valve , Butt Weld Ball Valve PN1.6MPa - PN7MPa
