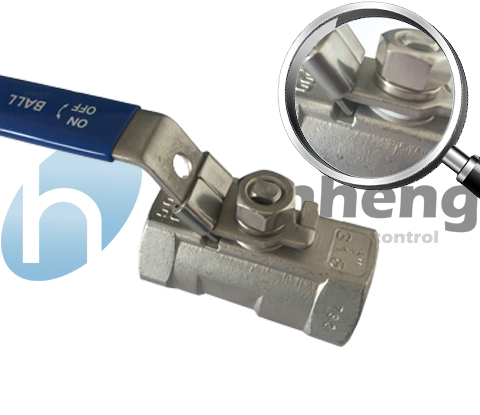

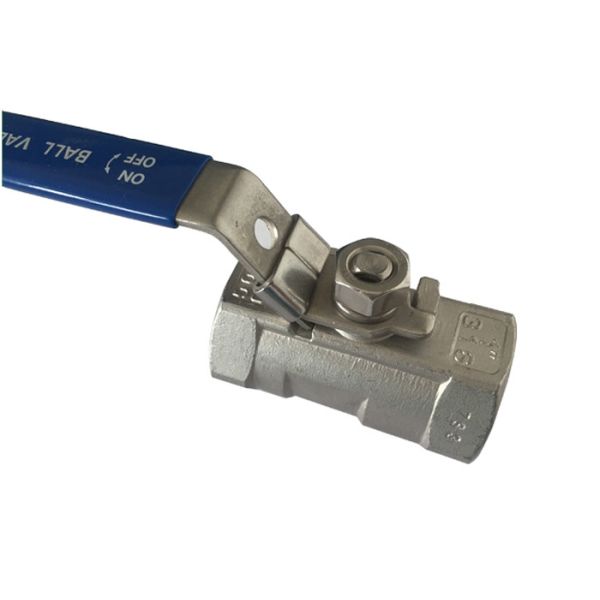

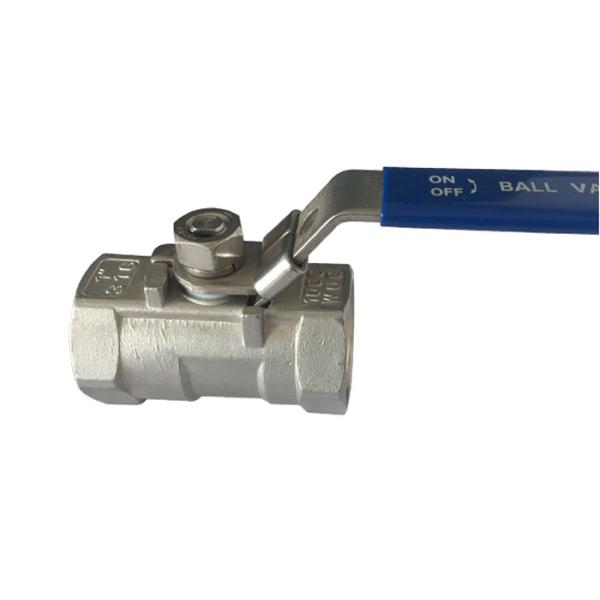

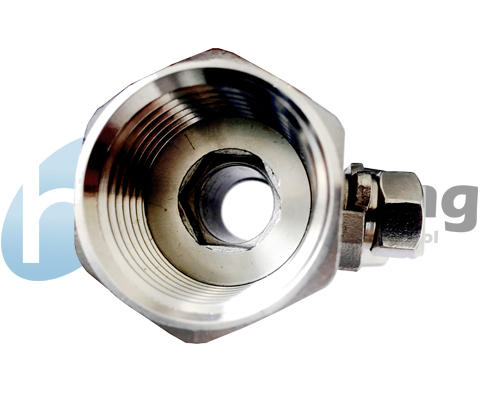

1000 PSI 1 pc ball valve stainless steel 316 npt bsp threaded
1000 PSI 1 pc ball valve stainless steel 316 npt bsp threaded
1000 PSI 1 pc ball valve stainless steel 316 npt bsp threaded
1000 PSI 1 pc ball valve stainless steel 316 npt bsp threaded
Specifications
Model Number :
1PBV
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 4.14- 4.22 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Body material :
Stainless Steel 316/304
Media :
Water Oil Gas
Handle Color :
Blue/Red
Working pressure :
1.0-1.6Mpa (10-25bar)
Certificate :
CE
Connection type :
Thread
Description

1000 PSI 1 pc ball valve stainless steel 316 npt bsp threaded

1, 1 pc ball valve are mainly made by 304, 316 stainless steel. Other stainless materials are also available.

2, The working pressure is around 1000 WOG, about 6.4 MPA.

3, Working temperature is from -4F-392F.

4, Connection type: Butt welding, threaded, Socket welded.

5, Certificates: ISO 9001, CE.

6, Normal sizes: From 1/4" to 4".

7, Thread type: NPT, BSP, BSPT

8, Bore type: Reduced.

Material and specification

Item ITEM Material
1 PLASTIC COVER PLASTIC
2 HANDLE 304
3 LOCKING 304
4 STEM NUT 304
5 SPRING WASHER 304
6

STEM

 304/316
7 PAKCING RING PTFE
8 STEM PACKING PTFE
9 CAP CF8/CF8M
10 BODY CF8/CF8M
11 BALL SEAT (A) R-PTFE
12 BALL CF8M
13 BALL SEAT (B) R-PTFE


1000 PSI 1 pc ball valve stainless steel 316 npt bsp threaded

SIZE 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3"
D 5 7 9.2 12.5 15 20 25 32 38 50
L 39 44 57 59 71 78 83 100 128 153
H 33 35 40 44 51 57 64 70 70 77
W 68.5 90 98 98 111 111 139 139 189 189

1000 PSI 1 pc ball valve stainless steel 316 npt bsp threaded

1000 PSI 1 pc ball valve stainless steel 316 npt bsp threaded

Material SUS201, SUS304,SUS316, SUS 304L , SUS 316L(CF8, CF8M),etc.
Size 1/4" -4" (DN6-DN100)
pressure 1000psi
Temperature range -20-300 degree C
connection Butt weld
sealing PTFE,RPTFE,PPL ETC
Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
Certification CE, ISO, our factory has been inspected by SGS and TUV
Locking With or without
Capacity to produce 100,000.00pcs/week
Main products Includes ball valve, butterfly valve, check valve, gate valve, strainer, etc.
Application Suitable for water, oil, air and some corrosive liquid etc
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
