Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4 inch with actuator mounting pad
Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4 inch with actuator mounting pad
Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4 inch with actuator mounting pad
Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4 inch with actuator mounting pad
Specifications
Model Number :
3PBVWM
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 10.22-10.89 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Temperature :
-20-250 degree
Material :
Stainless steel
Handle Color :
Blue/Red
Working pressure :
6.9 Mpa
Thread type :
NPT, BSP, BSPT
Connection type :
Threaded
Description

Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4" inch with actuator mounting pad

1 Main material SS304/316
2 Working pressure 1000 PSI
3 Working Temperature -20-240℃
4 Connection type Butt welding, Thread, Socket welding
5 Certificate ISO 9001/CE
6 Size 1/4" to 4"
7 Thread type NPT, BSP, BSPT
8 Bore type Full bore

Material and specification

Item ITEM Material
1 STEM PACKING PTFE
2 BODY SEAL PTFE
3 BALL SEAT PTFE
4 BALL CF8M
5 CAP CF8M
6

BOLT

 304
7 NUT 304
8 THRUST WAHSER 304
9 STEM SEAL PTFE
10 YOKE CF8M
11 STEM 304
12 GLAND PACKING 304


Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4

size 1/4" 3/8" 1/2" 3/4" 1"
D 12.5 12.5 15 20 25
L 64 64 72 80 85
H 68.4 68.4 72 78 90.3
W 135 135 135 135 152
H1 38.4 38.4 42 48 55
H 9 9 9 9 11

size 1-1/4" 1-1/2" 2" 2-1/2" 3"
D 32 38 50 65 76
L 105 113 132 170 186
H 95.3 107 122 155 164
W 152 188 188 233 233
H1 60 70 85 109 118
H 11 15 15 20 20

Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4

Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4

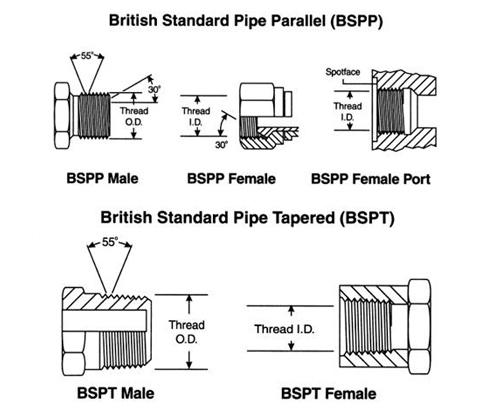

The differences between bspp, bspt, npt threads.

Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4

Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4

Product Name

3PC BSPT High Mounting Pad CF8M CF8 Screwed Ball Valve
Material
stainless steel 304/316/WCB
Size
1/4" -4"
Standard
DIN GB ISO JIS ANSI
Pressure
1000WOG
Suitable medium
water, oil, air and some corrosive liquid etc.(WOG)
Temperature Range
-20 - 180 degree C
Sealing
RPTFE,PTFE,PPL,etc.
Connection
threaded, flange ,welded ,clamp.
Certification
CE, ISO,DIN ,API,etc. Our factory has been inspected by SGS and TUV
Guarantee Period
18 months
Casting
Investment
MOQ
100 PCS/size
Operated
Manual
Brand name
WOD,SJFM, we accept customers' brand
Capacity to produce
100, 000.00 PCS/week
Terms of payment
30% TT deposit, the balance is paid before shipping the goods
Delivery time
30-45 days after received the deposit
Package detail
inner CTN, outside ply-wooden case
Sample
Customers' drawing and samples are accepted.
