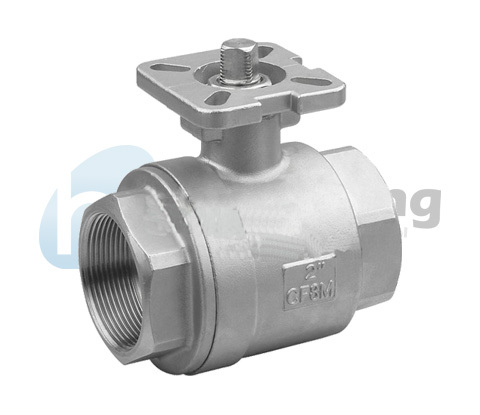

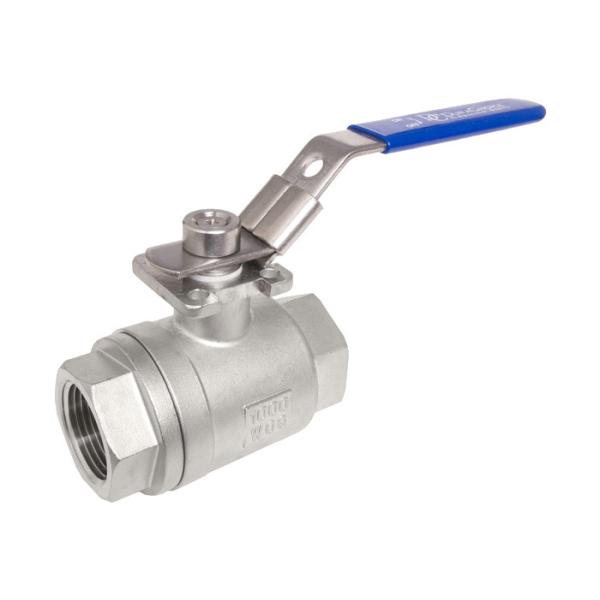

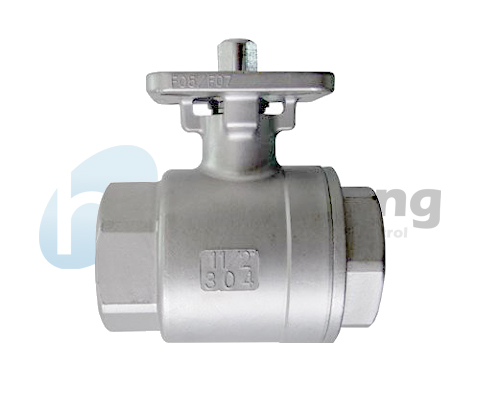

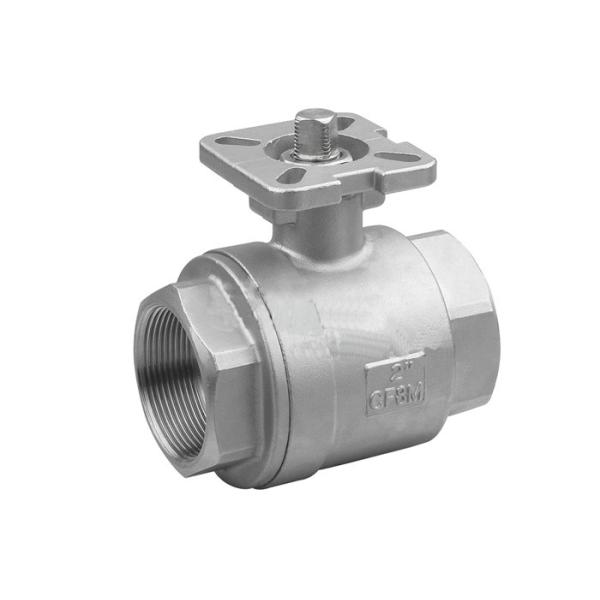

Stainless Steel Ball Valve , 316 stainless steel ball valve 1000 PSI with actuator mounting pad
Stainless Steel Ball Valve , 316 stainless steel ball valve 1000 PSI with actuator mounting pad
Stainless Steel Ball Valve , 316 stainless steel ball valve 1000 PSI with actuator mounting pad
Stainless Steel Ball Valve , 316 stainless steel ball valve 1000 PSI with actuator mounting pad
Specifications
Model Number :
2PBVM
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 31.62-33.86 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Working pressure :
6.9 Mpa
Media :
Water Oil Gas
Handle Color :
Blue/Red
Thred type :
NPT, BSPT, BSP, DIN 2999
Certificate :
CE
Connection type :
Thread
Body material :
Stainless Steel 316/304
Description

Stainless Steel Ball Valve , 316 stainless steel actuator 1000 PSI with mounting pad

1 Main material SS304/316
2 Working pressure 1000 PSI
3 Working Temperature -20-240℃
4 Connection type Butt welding, Thread, Socket welding
5 Certificate ISO 9001/CE
6 Size 1/4" to 4"
7 Thread type NPT, BSP, BSPT
8 Bore type Full bore


Material and specification

Item ITEM Material
1 BOLT 304
2 COVER 304
3 ADJUSTABLE 304
4 GLAND 304
5 STEM PACKING PTFE
6

BONNET

 CF8M
7 BALL CF8M
8 BALLSEAT RPTFE
9 BODY SEAL PTFE
10 BODY CF8M
11 STEM 304
12 THRUST WAHSER PTFE
13 O-RING NBR/VITON
14 LOCKING DEVICE 304
15 HANDLE 304
16 HANDLE COVER PLA


For 2 pc stainless steel ball valves, it got the following advantages:
1, Simple structure, simple size, light weight.
2, It is compact and reliable. The seals of the ball valve is wide spreadly using the plastic, the seal effect is outstanding. It is
also applied to the vacuum system.
3, Operation simple and convenient. It can be opened and closed rapidly. From on to off, only needs 90 degrees rotation.
4, It is easy for maintenance. The structure is simple, the seal is separate from the ball, so it is easy to disassemble.
5, When it is totally open or close, the seal surface of the ball seat will not touch the fluid. So, it won't lead to corrosion to the
seal surface.
6, It got a very wide range of application. From several milimeter to serval meter. From high vacuum to high pressure.


Stainless Steel Ball Valve , 316 stainless steel ball valve 1000 PSI with actuator mounting pad

Stainless Steel Ball Valve , 316 stainless steel ball valve 1000 PSI with actuator mounting pad



Differences among npt, bsp, bspt threades:

Stainless Steel Ball Valve , 316 stainless steel ball valve 1000 PSI with actuator mounting pad

Stainless Steel Ball Valve , 316 stainless steel ball valve 1000 PSI with actuator mounting pad
