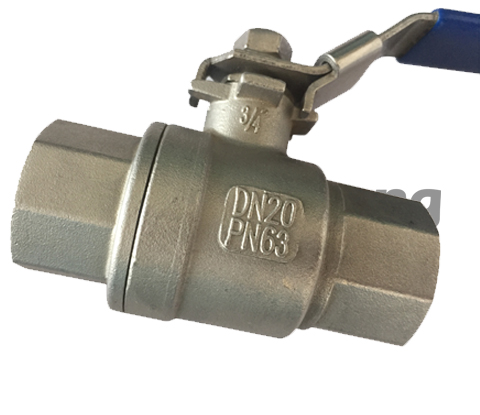

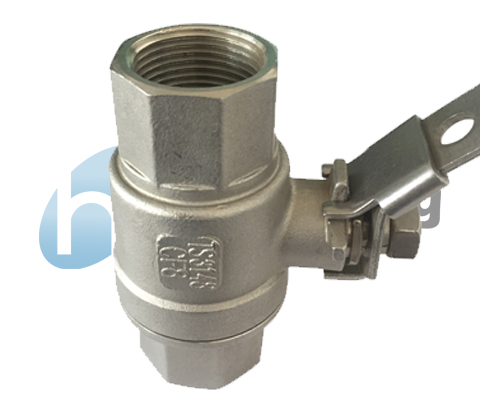

304, 316 Stainless Steel Npt, bsp, bspt Female Threaded Heavy Type 1/4-4 2 Pc Ball Valve
304, 316 Stainless Steel Npt, bsp, bspt Female Threaded Heavy Type 1/4-4 2 Pc Ball Valve
304, 316 Stainless Steel Npt, bsp, bspt Female Threaded Heavy Type 1/4-4 2 Pc Ball Valve
304, 316 Stainless Steel Npt, bsp, bspt Female Threaded Heavy Type 1/4-4 2 Pc Ball Valve
Specifications
Model Number :
2PBV
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 9.05-9.97 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Material :
304/316
Business type :
Factory
Handle Color :
Blue/Red
Working pressure :
6.9 Mpa
Guarantee :
1 year
Way of connection :
Thread
Description

2 Pc Stainless Steel Ball Valve Npt Female Threaded Heavy Type

1 Main material SS304/316
2 Working pressure 1000 PSI
3 Working Temperature -20-240℃
4 Connection type Butt welding, Thread, Socket welding
5 Certificate ISO 9001/CE
6 Size 1/4" to 4"
7 Thread type NPT, BSP, BSPT
8 Bore type Full bore

Material and specification

Item ITEM Material
1 BODY CF8M
2 BALL SEAT R-PTFE
3 BALL 316
4 CAP CF8M
5 STEM 316
6

THRUST WAHSER

 PTFE
7 STEM PACKING PTFE
8 GLAND NUT 304
9 HANDLE 304
10 NUT 304
11 LOCK DEVIECE 304
12 HANDLE COVER PLASTIC


304, 316 Stainless Steel Npt, bsp, bspt Female Threaded Heavy Type 1/4

DN L H W
IN MM
1/4" 11.6 53 46 91.5
3/8" 12.7 53 46 91.5
1/2" 15 60 52 101.5
3/4" 20 70 57.5 116.5
1" 25 82 68 141.5
1-1/4" 32 97 73 141.5
1-1/2" 37 103 83 166.5
2" 49 122 92 166.5
2-1/2" 65 154 125 250
3" 80 190 150 250


304, 316 Stainless Steel Npt, bsp, bspt Female Threaded Heavy Type 1/4

304, 316 Stainless Steel Npt, bsp, bspt Female Threaded Heavy Type 1/4

Specifications

1.Process:lost wax casting
2.Material:SS 201,304,316
3.Certificate:CE,ISO9001:2008
4.Recyclable & Environmental

Stainless steel ball valve 1000 WOG

(1) Materials of main parts:

Valve body: CF8, CF8M
Stem: 304, 316
BALL: 304, 316
Packing: PTFE
Sealing: PTFE
(2)Thread: DIN2999/BSP thread (F/F)/NPT, Various Thread Standard Available
(3)Applicable media: Water Oil, Steam, Nitric acid, Acetic acid
(4) Inspection & Testing: API 598
(5) Main size: 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

(6) Body Processing: Investment casting

(7) Locking Device Available

(8) Minimum order: 100PCS

(9) Delivery time: 30 days

(10) Packing: Seaworthy packing (plastic bag-carton-plywood pallet)

(11) Terms of shipment: FOB, CFR, CIF

(12) Payment terms: T/T or Irrevocable L/C at sight

(13) Market: Japan, UK, German, Holland, France, Italy, Spain, Pakistan, Brazil, UAE, Canada, Malaysia, Korea and so on
