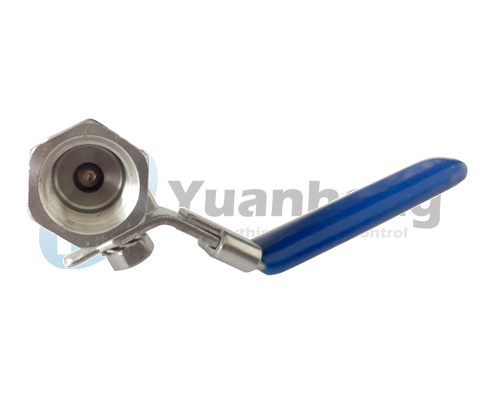

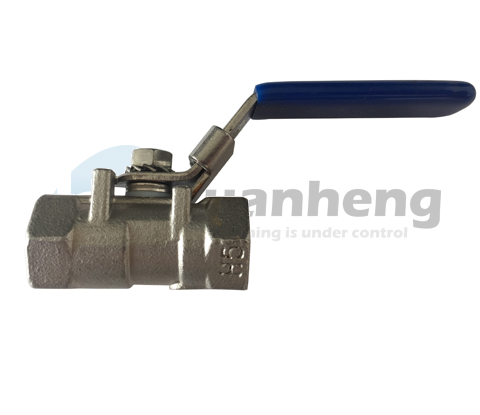

1/4'' 316 Stainless Steel Ball Valve bsp threaded with locking device

1, 1 pc ball valve are mainly made by 304, 316 stainless steel. Other stainless materials are also available.

2, The working pressure is around 1000 WOG, about 6.9 MPA.

3, Working temperature is from -4F-392F.

4, Connection type: Butt welding, threaded, Socket welded.

5, Certificates: ISO 9001, CE.

6, Normal sizes: From 1/4" to 4".

7, Thread type: NPT, BSP, BSPT

8, Bore type: Reduced.

1. Product Type

Ball Valve, Butterfly Valve, Gate Valve, Knife Gate Valve, Globe Valve, Check Valve,

Reducing Valve, Safety Valve, Strainer, etc.;

2. Standards

American Standard (API), German standard (DIN), International Standard(ISO),

GB (GB), British standard (BS), Japanese Industrial Standards(JIS), GOST, etc.;

3. Features:

Design - API 608/ API 6D/ BS5351/ ANSI B16.34/ ISO 14313/MSS SP 72
Face to Face & End to End - ASME B16.10/ ISO5752

Ends - Wafer, Flange RF, RTJ, SW, BW,
Fire Safe - API 607/ API 6FA
Test - API 598
Seat - PTFE/ RPTFE/ VITON/ UR/ EPDM/ NBR/ NR/ Graphite/ Metal to Metal
Bore - Full Bore/ Reduced Bore
Fabrication - One Piece/ Two Pieces/ Three Pieces Body

4. Material

ASTM A216 WCB , A351 CF8, CF8M, CF3, CF3M, CF3MN, CN7M
A890 4A, A352 LCB , ASTM A105, A182 F304, F304L, F316, F316L F51,LF2

5. Nominal Diameter (Size)

150#~2500# : 1/2"~80" (DN15~DN2000)

6. Nominal Pressure
Class 150---Class 2500 (PN16-PN420)

7. Operating Temperature

-196 °C --- 650 °C;

8. Application

Chemical, Petrochemical, Oil & Gas, Power Plant, General Industry etc.;

9.Certificate :
API 6D, API 6FA, CE, ISO 9001

Material and specification
