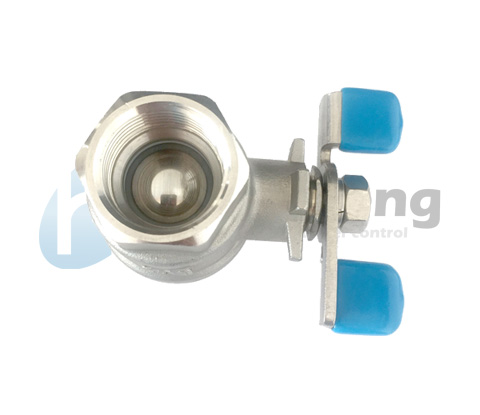

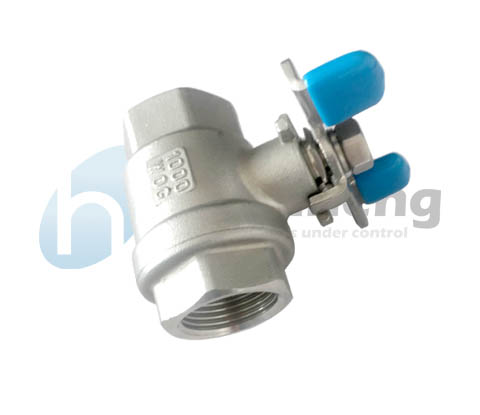

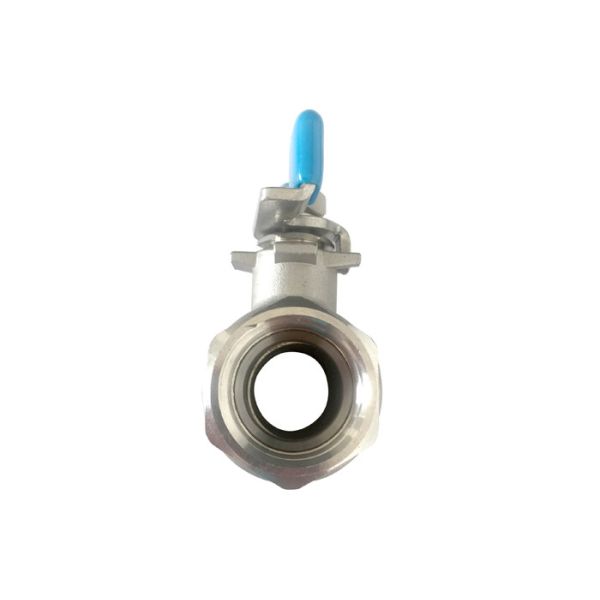

Butterfly Handled 304 Stainless Steel Ball Valve CE Certificate
Butterfly Handled 304 Stainless Steel Ball Valve CE Certificate
Butterfly Handled 304 Stainless Steel Ball Valve CE Certificate
Butterfly Handled 304 Stainless Steel Ball Valve CE Certificate
Specifications
Model Number :
2PBVB
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 8.50-8.98 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Body material :
Stainless Steel 316/304
Thread type :
npt, bsp, bspt
Handle type :
Butterfly
Working pressure :
6.9 Mpa
Certificate :
CE
Connection type :
Threaded, socket welded, butt weldied.
Description

Butterfly Handled 304 Stainless Steel Ball Valve CE Certificate

1 Main material SS304/316
2 Working pressure 1000 PSI
3 Working Temperature -20-240℃
4 Connection type Butt welding, Thread, Socket welding
5 Certificate ISO 9001/CE
6 Size 1/4" to 4"
7 Thread type NPT, BSP, BSPT
8 Bore type Full bore

Material and specification

Item ITEM Material
1 BODY CF8M
2 BALL SEAT R-PTFE
3 BALL 316
4 CAP CF8M
5 STEM 316
6

THRUST WAHSER

 PTFE
7 STEM PACKING PTFE
8 GLAND NUT 304
9 HANDLE 304
10 NUT 304
11 LOCK DEVIECE 304
12 HANDLE COVER PLASTIC


Butterfly Handled 304 Stainless Steel Ball Valve CE Certificate

DN L H W
IN MM
1/4" 11.6 53 46 91.5
3/8" 12.7 53 46 91.5
1/2" 15 60 52 101.5
3/4" 20 70 57.5 116.5
1" 25 82 68 141.5
1-1/4" 32 97 73 141.5
1-1/2" 37 103 83 166.5
2" 49 122 92 166.5
2-1/2" 65 154 125 250
3" 80 190 150 250


Butterfly Handled 304 Stainless Steel Ball Valve CE Certificate

Butterfly Handled 304 Stainless Steel Ball Valve CE Certificate

Differences among npt, bsp, bspt threads.

Butterfly Handled 304 Stainless Steel Ball Valve CE Certificate

Butterfly Handled 304 Stainless Steel Ball Valve CE Certificate

Funcation description:

Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

Standards:

Design Standard:ANSI B16.34 / API 600 / API 602
Inspection & Test: API 598
Face To Face: ANSI B16.10
Flange Connection: ANSI B16.5 (For NPS≤24) / ANSI B16.47 SERIES B, ANSI 16.47

Application:

Applicable Temperature: -196℃ ~ 649 ℃
Main Materials: WCB/CF8/CF8M/304/316/316L

Applicable Medium: Water / Oil / Gas / Causticity Medium

Pressure Rating: 1000WOG/2000WOG

Size Range: 1/4" ~ 4"
