ISO9001 Metal Ball Valve 316 npt or bsp , 3 pc 1 inch ball valve
ISO9001 Metal Ball Valve 316 npt or bsp , 3 pc 1 inch ball valve
ISO9001 Metal Ball Valve 316 npt or bsp , 3 pc 1 inch ball valve
ISO9001 Metal Ball Valve 316 npt or bsp , 3 pc 1 inch ball valve
Specifications
Model Number :
3PBV
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 14.31-15.20 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Body material :
Stainless Steel 316/304
Media :
Water Oil Gas
Handle Color :
Blue/Red
Working pressure :
6.9 Mpa
Certificate :
CE&ISO 9001
Connection type :
Threaded
Description

ISO9001 Metal Ball Valve 316 npt or bsp , 3 pc 1 inch ball valve

1 Main material SS304/316
2 Working pressure 1000 PSI
3 Working Temperature -20-240℃
4 Connection type Butt welding, Thread, Socket welding
5 Certificate ISO 9001/CE
6 Size 1/4" to 4"
7 Thread type NPT, BSP, BSPT
8 Bore type Full bore

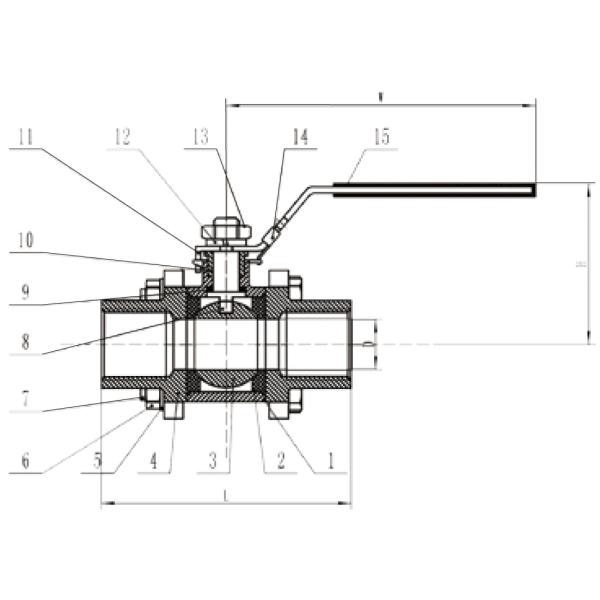

Material and specification

Item ITEM Material
1 BODY CF8M
2 BALL SEAT R-PTFE
3 BALL 316
4 CAP CF8M
5 SPING WASHER 316
6

NUT

 304
7 BOLT 304
8 STEM 304
9 THRUST WAHSER PTFE
10 GALND NUT 304
11 HANDLE 304
12 SPING WASHER 304
13 NUT 304
14 LOCK DEVICE 304
15 HANDLE COVER PLASTIC


ISO9001 Metal Ball Valve 316 npt or bsp , 3 pc 1 inch ball valve

size 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
D 12.5 12.5 15 20 25 32 38 50 65 76 94
L 72 72 72 80 85 105 113 132 170 186 220
H 48 48 50 52 65 70 85 93 116 125 180
W 105 105 105 126 144 144 189 189 224 224 251

ISO9001 Metal Ball Valve 316 npt or bsp , 3 pc 1 inch ball valve

ISO9001 Metal Ball Valve 316 npt or bsp , 3 pc 1 inch ball valve

1, 3 pc ball valve is widely applied in the piping systems of food, environmental protection, metalurgy, petrochemical industry, etc, and has the function of adjusting or stopping the flow in pipeline.

2, According to the differences of valve body and sealing material, this valve can be used in the pipeline for supplying steam, petroleum, general corrosive fluid or other medium at working temperature between -20 to 250 ℃.

3, The body of the valve is made by the technic of lost wax investment casting. The thread type is connected by thread. It is machined by CNC lathe, the precision is very high, the tolerance is about 0.2 mm.

4, The maximum pressure it can hold is about PN 64, it got high corrosion resistence ability. It can be applied to many industries with high corressive features. It got the advantages of steady, simple to operate, long life span, etc.

5, The product is grinded strictly, the surface is soomth. The package of the product can be custmized also.
