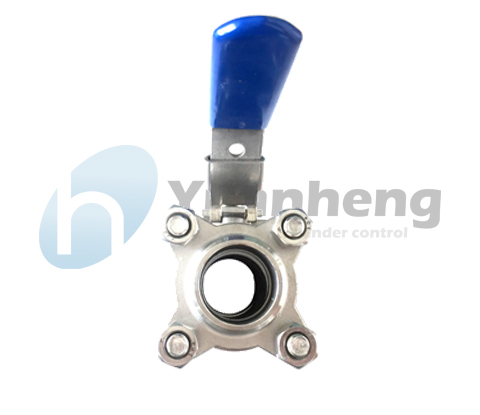

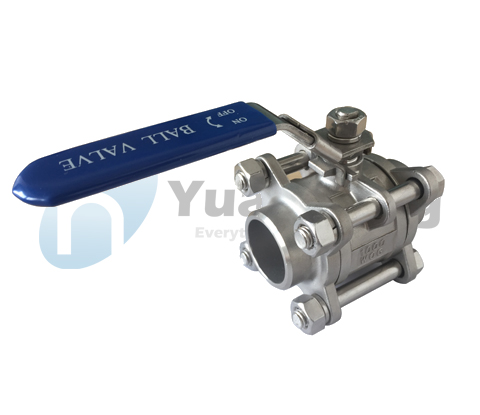

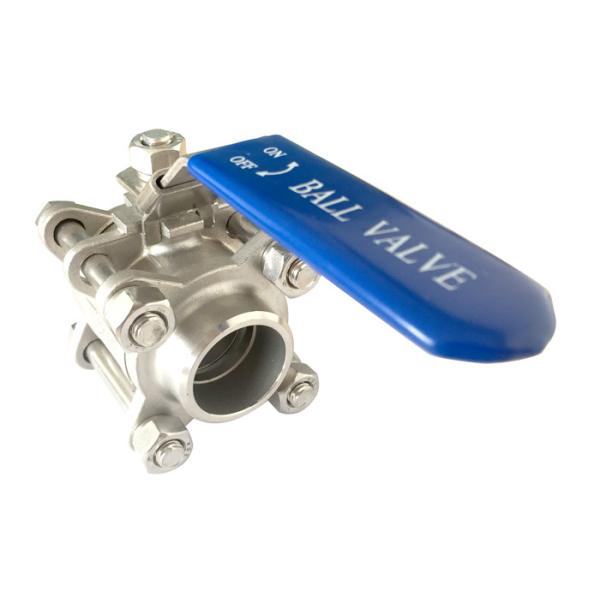

3 Inch Butt Welded Stainless Steel Ball Valve Ansi Jis Standard
3 Inch Butt Welded Stainless Steel Ball Valve Ansi Jis Standard
3 Inch Butt Welded Stainless Steel Ball Valve Ansi Jis Standard
3 Inch Butt Welded Stainless Steel Ball Valve Ansi Jis Standard
Specifications
Model Number :
3PBWV
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 81.20-85.63 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Standard :
ASTM, JIS, ANSI ETC.
Media :
Water Oil Gas
Handle Color :
Blue/Red
Working pressure :
6.9 Mpa
Certificate :
CE&ISO 9001
Connection type :
Butt welding
Body material :
Stainless Steel 316/304
Description

3 inch butt welded Stainless Steel Ball Valve ansi jis standard

1 Main material SS304/316
2 Working pressure 1000 PSI
3 Working Temperature -20-240℃
4 Connection type Butt welding, Thread, Socket welding
5 Certificate ISO 9001/CE
6 Size 1/4" to 4"
7 Thread type NPT, BSP, BSPT, DIN 2999
8 Bore type Full bore

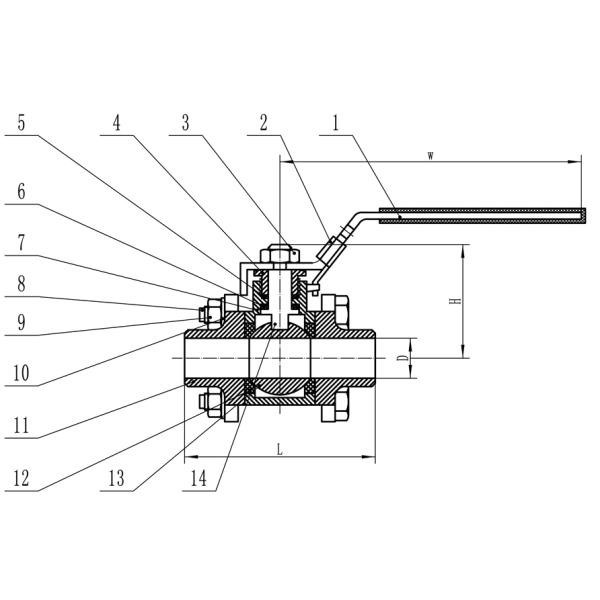

Material and specification

Item ITEM Material
1 HANDLE 304
2 LOCK 304
3 NUT 304
4 GLAND NUT 304
5 STEM PACKING PTFE
6

THRUST WASHER

 PTFE
7 BODY CF8M
8 BOLT 304
9 NUT 304
10 SPRING WAHSER 304
11 CAP CF8M
12 BALL SEAT R-PTFE
13 BALL 316
14 STEM 304


3 Inch Butt Welded Stainless Steel Ball Valve Ansi Jis Standard

size 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
D 12.5 12.5 15 20 25 32 38 50 65 76 94
L 72 72 72 80 85 105 113 132 170 186 220
H 48 48 50 52 65 70 85 93 116 125 180
W 105 105 105 126 144 144 189 189 224 224 251

3 Inch Butt Welded Stainless Steel Ball Valve Ansi Jis Standard

3 Inch Butt Welded Stainless Steel Ball Valve Ansi Jis Standard
