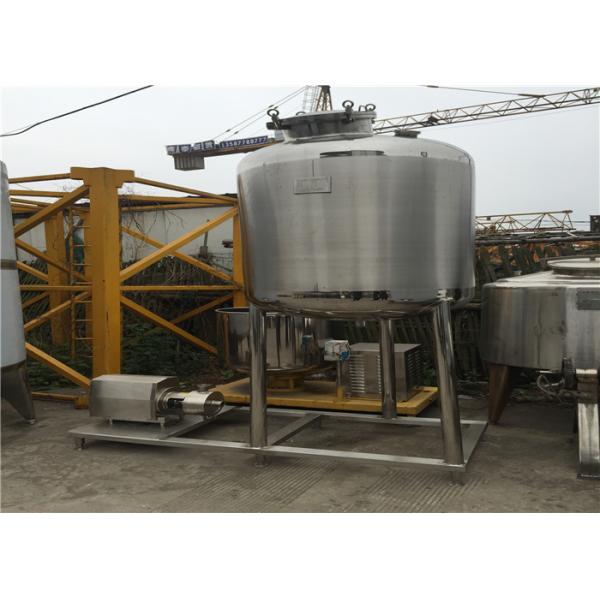

Big Capacity 316 Stainless Steel Fermentation Tanks Jacketed Tank Mixing Tank

1. Tank Instruction :

Main parameters and configuration
1) nominal volume:50L-20000L and other general specifications and non-standard design and production.
2) the structure of the form: vertical, the use of conical, oval, dish shaped head, also apply to the need to close the heating, mixing, reaction, enzymatic hydrolysis and other process operation.
3) jacket forms: hollow heat conducting oil or water), semicircular coil pipe, honeycomb jacket (on demand system), heating or cooling efficiency is high.
4) insulation material: filling pearl cotton, rock wool, polyurethane foam, with good thermal insulation effect.
5) exterior surface of the cylinder body: use mirror polishing or 2B color matte or 2B matte surface polishing treatment, beautiful and clean appearance.
6) stirring device: at the top of the tank in the (partial) heart stirring, stirring side; agitator types: frame type, anchor type, push type, blade, scraping wall blade etc.
7) stirring speed: Low speed stirrer, high speed disperser or high speed homognizer.
8) level meter form: glass tube liquid level gauge, static pressure sensing type liquid level meter and so on (for selection).
9) feet form: adjustable three pyramid form or cylindrical tube.
10) equipment accessories configuration: quick open sanitary manhole, mirror, (liquid crystal digital display type or dial pointer type) thermometer, respirators, CIP cleaning machines, material liquid inlet and outlet, circular mouth, hot and cold media import and export interface, the nozzle can be according to the process of selection may increase or decrease).

2. Technical Parameter :

Summary:

This equipment is mainly used in storing material used in food, medicine, chemical industries and it is indispensable storage equipment for them.You can have it made by SUS304, SUS316L stainless steel or Q235B carbon steel. It is reasonably designed, produced by advanced technology and confirm to GMP requirement.

The inner surface of the tank can be mirror polished and the roughness can meet as high as Ra <=0.8 um. The outer surface is polished as follows: the cover and bottom will be mirror polished and the remaining part will be mat polished. All the polish meet international standard.

Features:

Material: SUS304 or S.S.316L
Mixing type: anchor type, frame type or paddle type
Mixing structure: cycloid pin wheel reducer or stepless reducer
Sealing equipment: Mechanical sealing
Heating way: steam heating, electrical heating or heat conduct oil.
Volume: can be made as per customer requirements
Measure: can be made as per customer requirements
