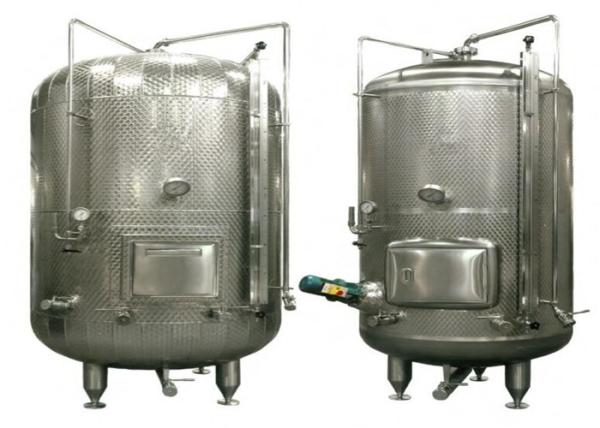

Food Grade Stainless Steel Wine Fermentation Tanks For Fruit Wine / Red Wine
Food Grade Stainless Steel Wine Fermentation Tanks For Fruit Wine / Red Wine
Food Grade Stainless Steel Wine Fermentation Tanks For Fruit Wine / Red Wine
Food Grade Stainless Steel Wine Fermentation Tanks For Fruit Wine / Red Wine
Food Grade Stainless Steel Wine Fermentation Tanks For Fruit Wine / Red Wine
Food Grade Stainless Steel Wine Fermentation Tanks For Fruit Wine / Red Wine
Specifications
Model Number :
KQ Series
Certification :
CE ,ISO
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 Sets Per Month
Delivery Time :
30 days after get your advance payment .
Packaging Details :
Standard Export Wooden Box / Wooden Pallets
Name :
stainless steel fermentation vessel
Material :
Sanitary Stainless Steel 304 / 316
Type :
Single Wall , Jacketed Wall
Surface Treatment :
Inside Mirror and Outside Polished
Function :
Heating ,Mixing , Storaging ,Fermentation
Speed of mixer :
18RPM ,36RPM ,48RPM ,72RPM ,2900RPM
Motor :
Siemens ,ABB , SEW .
Capacity :
100L to 30000L
Description

Food Grade Fruit Wine Red Wine Stainless Steel Fermentation Tank Storage Tank

1. Introduction of Red Wine Fermentation :

Steam / Electric heating Jacketed Tank with mixing agitator for pasteurizing, mixing and heating yogurt, milk powder and water
steam heating tank with mixer and blender,US $ 1 - 5000 / Set, Mixer,mixing&storage tank
Three-layered cooling and heating tank with mixer is mainly used for storing, mixing and heating liquid. It's the ideal mixing, heating and cooling equipment for chemical, food and beverage factory and pharmacy industry.
Yogurt Fermentation Tank for Europe Market
Material: Ss304
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down manhole
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube
(5) Rack & blender etc.
(6) the electric motor (0.75KW, 380V, 50Hz)

2. Technical Parameter :

Work Volume Dimension of tank Total height Insulated layer Diameter of inlet&outlet Motor Power Blending speed
(L) (mmxmm) (mm) (mm) (mm) (kw) (r/min)
500 840*1000 2300 60 38 0.75 Siemens Rotating 18,36,78,
1700,3600
Stepless speed reducer or inverter reducer available
600 920*1000 2400 60 38

0.75

Siemens
700 990*1000 2400 60 38

0.75

Siemens
800 950*1220 2550 60 38

0.75

Siemens
900 1010*1220 2700 60 38

0.75

Siemens
1000 1060*1220 2700 60 51

1.1

Siemens
2000 1340*1500 2750 60 51

2.2

Siemens
3000 1410*2000 3500 60 51

4

Siemens
5000 1910*2000 3850 60 51

5.5

Siemens
10000 2300*2440 4500 60 51

7.5

Siemens
15000 2530*3000 5200 60 51

7.5

Siemens
20000 2640*3660 5800 60 51

7.5

Siemens

Food Grade Stainless Steel Wine Fermentation Tanks For Fruit Wine / Red Wine
