Electronics Fusible Resistors Fusible ResistorsCeramic Tube Fuse 100mA ～ 10A
Electronics Fusible Resistors Fusible ResistorsCeramic Tube Fuse 100mA ～ 10A
Specifications
Place of Origin :
China
Brand Name :
TYOHM
MOQ :
1K
Price :
Please contact us for details
Packaging Details :
T/B
Delivery Time :
7-10 work days
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Size Specifications :
Φ3.6 × 10mm
Rated Current Range :
100mA ～ 10A
Rated Voltage :
125V / 250V AC
Breaking Capacity :
50A ( 125V / 250V AC )
Fuse Element :
Alloy
Lead Wire Material :
Tin Plated Copper
Description

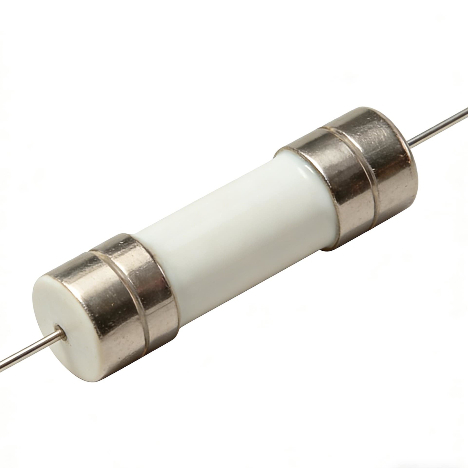

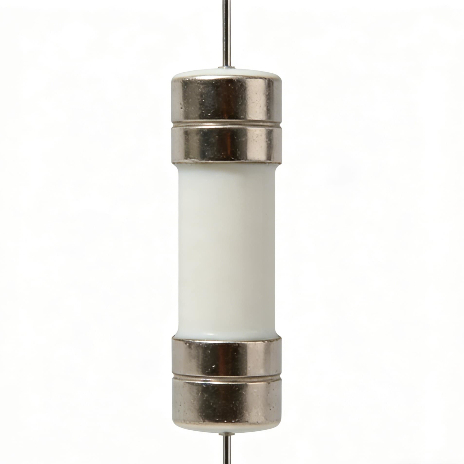

Time-Lag Ceramic Tube Fuse
Product Overview

Slow-blow ceramic tube fuses utilize a standard φ3.6×10mm ceramic tube structure and are specifically designed for efficient overcurrent protection.

This series employs high-strength ceramic tubes and alloy fuse wires, possessing excellent high-temperature and high-voltage resistance, effectively preventing damage to circuits from short circuits or transient surge currents.

Its delayed-blow characteristic avoids malfunctions caused by transient currents, making it suitable for high-power circuits requiring protection but where frequent melting is undesirable.

Electronics Fusible Resistors Fusible ResistorsCeramic Tube Fuse 100mA ～ 10A

Product Parameters
Item Parameter Description
Size Specifications Φ3.6 × 10mm ( Customizable )
Fuse Type Time-Lag
Fuse Material Alloy
Tube Material Non-Transparent Ceramic Tube
End Cap Material Nickel Plated Brass
Lead Wire Material Tin Plated Copper
Key Features

The slow-blow ceramic tube fuse uses a ceramic tube body, possessing excellent pressure and high-temperature resistance, ensuring long-term stable operation under high-current environments. Its slow-blow characteristic prevents malfunctions during sudden current surges and provides appropriate delay protection under overload conditions, preventing accidental power outages. The product uses nickel-plated copper caps and tin-plated copper leads, ensuring excellent conductivity and solderability. The ceramic tube body has high electrical insulation performance, adapting to complex environments.

Electronics Fusible Resistors Fusible ResistorsCeramic Tube Fuse 100mA ～ 10A

Applications
  • Power supply equipment and charging adapters
  • Power tools and household appliances
  • LED lighting and display equipment protection
  • Communication equipment and power control systems
  • Instrumentation and battery protection circuits
