Plastic Black Fuse Resistor Smd Encapsulated Square Fuse For Circuit Protection
Plastic Black Fuse Resistor Smd Encapsulated Square Fuse For Circuit Protection
Specifications
Place of Origin :
China
Brand Name :
TYOHM
MOQ :
2K
Price :
Please contact us for details
Packaging Details :
T/B
Delivery Time :
7-10 work days
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Operating Temperature Range :
-40℃ ～ +125℃
Fusion Time (210%) :
1s ～ 120s
Rated Voltage Range :
250V / 300V / 350V AC
Breaking Capacity :
VDE 100 at 250V/300V AC ( 125mA~10A )
Welding Conditions :
Wave soldering 260℃ ≤ 5 seconds; Hand soldering 360℃ ≤ 1 second
Material Composition :
Fusion: Alloy; Shell: Flame-retardant plastic
Description
Plastic Encapsulated Square Fuse
Product Overview

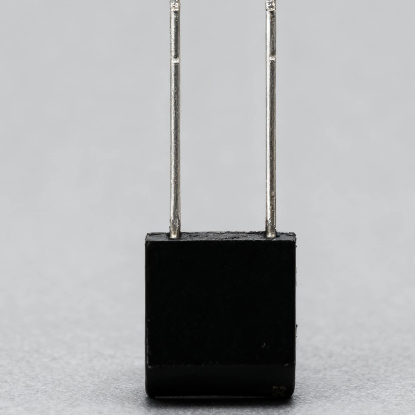

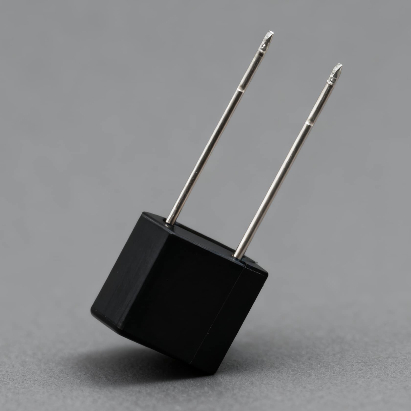

This plastic-encapsulated square fuse features a high-performance alloy fusible element encapsulated in a flame-retardant plastic shell. Its compact internal structure provides excellent voltage withstand performance and stable fusing characteristics.

The product has obtained multiple international certifications, including UL, VDE, and CQC, and is suitable for high-voltage, high-current protection circuits.

The square package facilitates installation and provides excellent dust and moisture protection, enabling long-term reliable operation in harsh environments.

The leads are made of tinned copper wire, offering excellent solderability and conductivity.

Plastic Black Fuse Resistor Smd Encapsulated Square Fuse For Circuit Protection

Technical Specifications
Item Parameter Description
Rated Current Range 0.08A ～ 16A
Rated Voltage Range 250V / 300V / 350V AC
Fusion Time (210%) 1s ～ 120s
Fusion Time (275%) 400ms ～ 10s
Fusion Time (400%) 150ms ～ 3s
Lead Material Tin Plated Copper
Product Performance

Fully Encapsulated Design – Utilizes a molded encapsulation structure, providing excellent moisture, dust, and shock resistance;

Non-Inductive Design – Optimized fuse structure effectively suppresses inductive effects, ensuring stability for high-frequency applications;

High-Reliability Solder Terminals – Tin-plated leads offer superior conductivity, suitable for automated wave soldering assembly;

Strong Environmental Adaptability – Operates stably within a temperature range of -40℃ to +125℃;

Compliant with International Standards – Certified by UL, VDE, CQC, and other safety regulations, ensuring reliable quality and safety.

Plastic Black Fuse Resistor Smd Encapsulated Square Fuse For Circuit Protection

Applications

Molded Square Fuses are widely used in:

  • Power adapter and transformer protection circuits;
  • Home appliances and intelligent control systems;
  • Lighting drivers, power tools, and industrial control boards;
  • Electric vehicle charging equipment and new energy modules;
  • Overcurrent protection for communication and instrumentation equipment.
