Ceramic Tube R1032 Fusible Resistors Time Lag Fuse For Slow Blow Circuit Safety
Ceramic Tube R1032 Fusible Resistors Time Lag Fuse For Slow Blow Circuit Safety
Specifications
Place of Origin :
China
Brand Name :
TYOHM
MOQ :
1K
Price :
Please contact us for details
Packaging Details :
T/B
Delivery Time :
7-10 work days
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Operating Temperature Range :
-55℃ ～ +125℃ (Derating required)
Package Type :
Surface Mount
Tube Material :
Ceramic Tube
Electrode Material :
Copper or Silver-plated Copper Cap
Color :
White and gold
Environmental Protection :
Lead-Free and RoHS compliant
Description

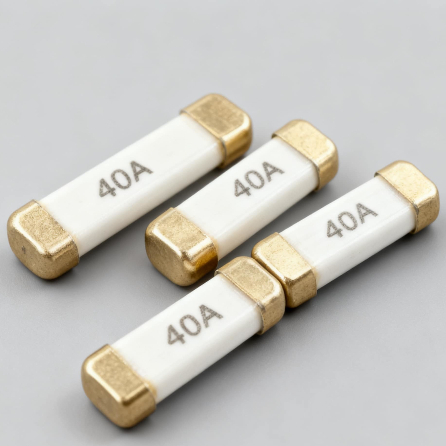

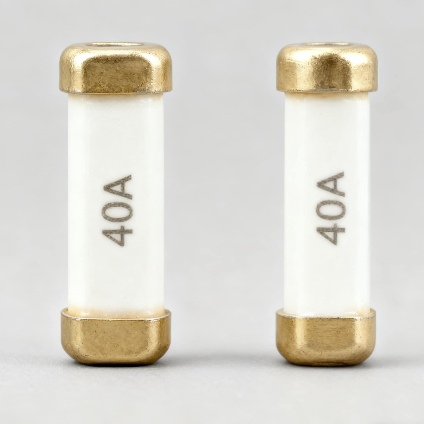

Surface Mount Time-Lag Fuse
Product Overview

The R1032 series surface-mount time-delay fuses utilize high-strength ceramic tubes and metal end caps, offering excellent time-delay characteristics and reliable overcurrent protection. This series complies with RoHS environmental standards and halogen-free requirements, and is UL/CSA international safety certified, ensuring safe and stable operation.

The products are suitable for 75V, 125V, and 250V DC systems. The end caps are available in copper or silver-plated brass, offering excellent conductivity. The R1032 time-delay fuse provides delayed protection against sudden current surges, preventing equipment failure, and is particularly suitable for power supplies and control systems requiring surge current protection.

Ceramic Tube R1032 Fusible Resistors Time Lag Fuse For Slow Blow Circuit Safety

Product Parameters
Item Parameter Description
Product Series R1032 Series
Rated Current Range 0.05A ～ 15A
Rated Voltage 75V / 125V / 250V
Interrupting Rating 50A@250V / 200A@125V / 500A@75V
Fusible Connection (100% Rated Current) >4 hours
Fusible Connection (200% Rated Current) <120 seconds
Key Features

The R1032 series time-delay fuses feature a wide current coverage range (0.05A–15A), flexibly meeting the design requirements of various electronic devices. Utilizing a high heat-resistant ceramic matrix and alloy fuse element, they possess excellent arc resistance and high-temperature resistance. Their time-delay characteristic provides buffer protection against instantaneous starting current or surge current, reducing the risk of accidental melting. The all-welded structure and high-sealing design ensure long-term stable operation, while the product is compatible with reflow soldering and wave soldering processes, facilitating automated production.

Ceramic Tube R1032 Fusible Resistors Time Lag Fuse For Slow Blow Circuit Safety

Applications
  • LED drivers and backlight power modules
  • Computer and laptop power systems
  • Network communication equipment and industrial control systems
  • Power adapters and charging equipment
  • Digital cameras, instruments, and power control equipment
