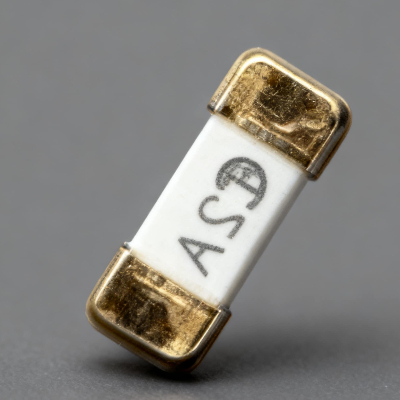

Short Circuit Protection Fusible Resistors 0~15A SMD Type Fuse For High Power Devices
Short Circuit Protection Fusible Resistors 0~15A SMD Type Fuse For High Power Devices
Specifications
Place of Origin :
China
Brand Name :
TYOHM
MOQ :
1K
Price :
Please contact us for details
Packaging Details :
T/B
Delivery Time :
7-10 work days
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Operating Temperature Range :
-40°C ~ 125°C
Rated Current Range :
0.1A ～ 15A
Color :
Gold and white
Pin Material :
Tin Plated Copper
Rated Voltage Range :
250V / 300V / 350V
Material :
Nickel Plated Brass ; Glass Tube ; Alloy ; Tin Plated Copper
Description

2JSD SMD Type Fuse

Product Overview

The 2JSD series SMD fuses are high-reliability overcurrent protection components designed specifically for high-density circuits. They feature a fully encapsulated design, are compact, and suitable for automated surface mount technology (SMT). The fuses utilize high-quality alloy fuse wire and a heat-resistant plastic housing, ensuring excellent stability and consistency even in high-temperature and high-humidity environments. The products comply with international certification standards such as UL, VDE, and CQC, and are suitable for power input and circuit protection designs in various electronic devices.

Short Circuit Protection Fusible Resistors 0~15A SMD Type Fuse For High Power Devices

Technical Specifications
Item Parameter Description
Product Model 2JSD Series SMD Fuse
Rated Current Range 0.1A ～ 15A
Rated Voltage Range 125V / 250V / 300V / 350V AC
Breaking Capacity 100A @250V AC (125mA～10A)
Operating Temperature Range -40℃ ～ +125℃
Soldering Conditions Wave soldering 260℃ ≤ 5 seconds; Hand soldering 360℃ ≤ 1 second
Fusion Time (125%) > 1 hour
Fusion Time (200%) 1 second ～ 120 seconds
Fusion Time (1000%) 10ms ~ 100ms
Pin Material Tin Plated Copper
Product Performance

High Reliability Structure — Fully encapsulated design, excellent moisture-proof, dust-proof, and shock-proof performance;

Non-Inductive Characteristics — Low inductance design, suitable for high-speed and high-frequency circuit environments;

Excellent Soldering Compatibility — Compatible with wave soldering and manual soldering processes, stable and reliable;

Excellent Long-Term Stability — Alloy melt and glass tube structure effectively reduces annual drift;

Multiple Safety Certifications — Certified by international safety standards such as UL, VDE, and CQC, ensuring safe use.

Short Circuit Protection Fusible Resistors 0~15A SMD Type Fuse For High Power Devices

Applications

2JSD SMD Fuse is widely used in:

  • Various Power Adapters and Battery Protection Modules;
  • Communication Equipment, Intelligent Control Systems, Lighting Driver Circuits;
  • Automotive Electronics, Power Tools, Industrial Control Boards;
  • Overcurrent Protection Circuits for Home Appliances and Audio-Visual Equipment;
  • Test Instruments and Power Conversion Equipment and other high-density electronic systems.
