Compact Fusible Wire Wound Resistor 100mA - 10A Fast Acting Subminiature Fuse
Compact Fusible Wire Wound Resistor 100mA - 10A Fast Acting Subminiature Fuse
Specifications
Place of Origin :
China
Brand Name :
TYOHM
MOQ :
1K
Price :
Please contact us for details
Packaging Details :
T/B
Delivery Time :
7-10 work days
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Size Specifications :
φ3 × 7mm
Rated Current Range :
100mA ～ 10A
Rated Voltage :
250V / 125V AC
Breaking Capacity :
50A ( 125V / 250V AC )
Packaging :
Epoxy Coated
Lead Material :
Tin Plated Copper
Description
Fast-Acting Subminiature Fuse
Product Overview

The 2F series fast-acting subminiature fuses feature a compact φ3×7mm miniature package design, providing excellent instantaneous overcurrent protection. Developed specifically to protect precision components in electronic circuits, this product offers rapid response to overload currents, effectively preventing circuit damage. The 2F series complies with international safety standards (UL, CUL, JET) and is suitable for space-constrained electronic devices requiring high reliability. It is widely used in home appliances, communications, industrial control, and power modules.

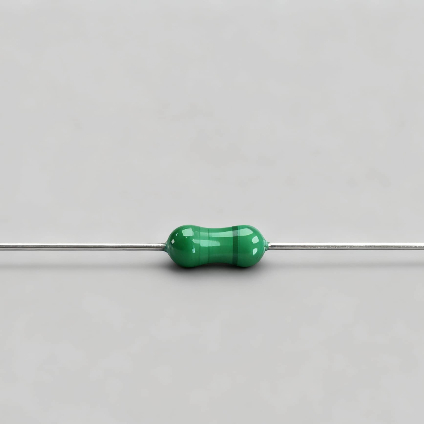

Compact Fusible Wire Wound Resistor 100mA - 10A Fast Acting Subminiature Fuse

Product Parameters
ItemParameter Description
Product Series2F Series
Size Specificationsφ3 × 7mm
Rated Current Range100mA ～ 10A
Rated Voltage250V / 125V AC
Breaking Capacity50A @ 125V / 250V AC
Fuse CharacteristicsFast-Acting
Fuse MaterialAlloy
Tube MaterialNon-Transparent Ceramic Tube
PackagingEpoxy Coated
Lead MaterialTin Plated Copper
Product Characteristics

The 2F series miniature fuses feature extremely high response speed and thermal stability, interrupting abnormal current within milliseconds. Utilizing a high-strength ceramic tube body, they offer superior explosion-proof performance, and the outer encapsulation is coated with heat-resistant epoxy resin, ensuring excellent mechanical strength and insulation properties. Nickel-plated brass end caps and tin-plated leads effectively reduce contact resistance and prevent oxidation. The products comply with RoHS environmental standards and have passed multiple international safety certifications, making them suitable for automated placement and mass production.

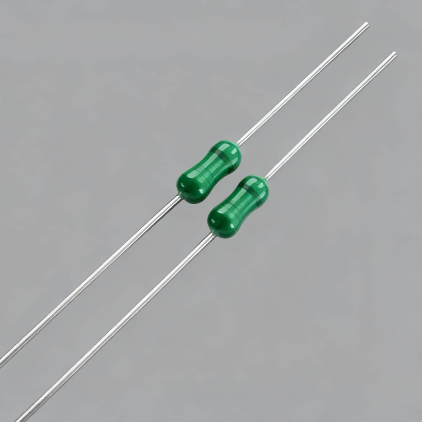

Compact Fusible Wire Wound Resistor 100mA - 10A Fast Acting Subminiature Fuse

Applications
  • Switching power supplies and battery protection circuits
  • LED driver power supplies and display devices
  • Communication modules and modems
  • Home appliances and industrial automation systems
  • Instrumentation and control circuits
