32VDC 63VDC 72VDC SMD Fuse Fast Acting Fuse For Quick Response To Overcurrent Faults
32VDC 63VDC 72VDC SMD Fuse Fast Acting Fuse For Quick Response To Overcurrent Faults
Specifications
Brand Name :
TYOHM
Place of Origin :
China
MOQ :
1K
Price :
Please contact us for details
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Delivery Time :
7-10 work days
Packaging Details :
T/B
Rated Voltage :
32VDC / 63VDC / 72VDC
Rated Current Range :
250mA ～ 30A
Breaking Capacity :
50A～100A (depending on rated voltage)
Operating Temperature Range :
-55℃ ～ +125℃ (Derating required)
Environmental protection :
Lead-Free and RoHS compliant
Package Size :
1206 SMD
Description

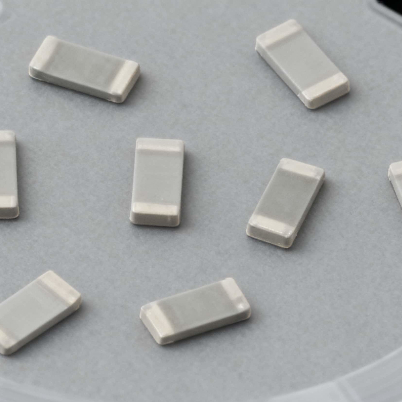

Fast Acting SMD Fuse

Product Overview

Fast-blow surface mount fuses utilize a precision ceramic substrate and metal end caps, offering high reliability, rapid response, and excellent overcurrent protection.

The R12.000 series supports systems up to 72VDC and can quickly interrupt abnormal current, effectively preventing damage to circuit components.

The products comply with RoHS and lead-free environmental standards and are suitable for the high-density surface mount processes of modern electronic devices.

Their small 1206 package helps save PCB space and improve overall assembly efficiency.

32VDC 63VDC 72VDC SMD Fuse Fast Acting Fuse For Quick Response To Overcurrent Faults

II. Product Parameters
Item Parameter Description
Product Series R12.000 Series
Cold Resistance (Typical) 2.9mΩ～3700mΩ
Voltage Drop (Typical) 70mV～1350mV
Action Time (100% Rated Current) Over 4 hours
Action Time (250% Rated Current) ≤5 seconds
Key Features

This series of fuses features excellent transient overcurrent withstand capability, maintaining stable performance even under high inrush current conditions. Its low impedance design minimizes power loss while improving system efficiency. The product is compatible with reflow and wave soldering processes, ensuring full compatibility with mainstream surface mount equipment. The robust ceramic housing and high-purity metal end caps provide excellent environmental sealing and mechanical strength, ensuring long-term stable operation in high-temperature and high-humidity environments.

32VDC 63VDC 72VDC SMD Fuse Fast Acting Fuse For Quick Response To Overcurrent Faults

Applications

Fast-blow surface mount fuses are widely used in various DC and low-voltage circuit overcurrent protection applications, including:

  • USB charger and laptop power protection
  • Digital camera and mobile phone circuits
  • LCD monitor and printer power modules
  • DVD players, game consoles, and portable devices
  • Automated control systems and industrial electronic equipment
