SWIR PET Flakes Sorter VPMC Plastic Color Sorter Machine With RGB Camera
SWIR PET Flakes Sorter VPMC Plastic Color Sorter Machine With RGB Camera
Specifications
Brand Name :
PHOENIX
Model Number :
VPMC SWIR Sorter
Place of Origin :
Hefei
MOQ :
1
Price :
Price Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
5-8 work days
Model :
VPMC1
Chute :
1
Air Nozzle :
64
Throughput (t/h) :
0.2-0.8
Air Pressure (MPa) :
0.6-0.8
Air Consumption (m³/min) :
<0.5
Description

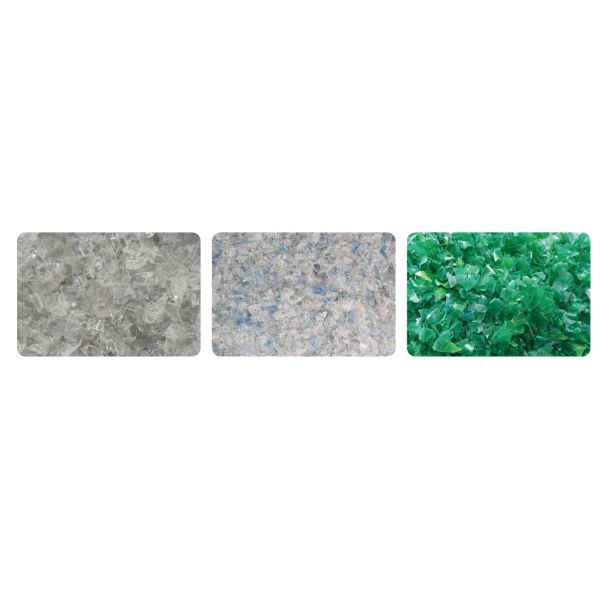

VPMC SWIR Sorter Premium Detection Of Both Polymer And Color To Plastic Flakes; Separation Of PET Flakes From Non-PET Polymers
Technical Features
  • Tailored Sorting Solution for Polymer and Color Detection to Plastic Flakes
    • Innovative high-capacity 2-layer vibratory feeder evenly distributes plastic flakes into a single layer to minimize overlapping
    • Sealed scanning and control boxes provide machine with high-level dust protection
    • Field-proven Dust Control System integrated maintains high operation reliability and performance consistency, and minimizes downtime
    • Modular design of vertical frame size from 4 to 8 chutes (4/6/8) provides processors more flexibility
  • Premium Industrial Inspection System
    • Dual-Band InGaAs-SWIR Camera System
      • Accurate detection to polymer types (PET/HDPE/PP/ABS/PC/PS/PMMA, etc.) based on molecular composition
      • Stable Air Cooling System maintains InGaAs sensor and Halogen Lighting System stabilities in hot environments
    • High-Resolution RGB Camera System
      • High-precision identification of color variations and contaminants
      • High-Intensity LED Illumination System enables detection to subtle color differences, minimizing false rejects
  • High-Performance Ejector System
    • Engineered for enhanced durability, optimized speed and air consumption
    • Accurate rejection and reliable performance at high-capacity sorting
    • Adjustable settings for typical plastic flake sizes (3-15 mm)
  • 15-inch Industrial Touchscreen Control Panel
    • Intuitive HMI with multilingual support
    • Instant switching between product profiles
    • Comprehensive remote support system
      • Remote Access and Monitoring
      • Real-time Performance Dashboard
      • Live Expert Diagnosis
      • Interactive Troubleshooting
SWIR PET Flakes Sorter VPMC Plastic Color Sorter Machine With RGB Camera

Specifications

Model Chute Air Nozzle Throughput (t/h) Air Pressure (MPa) Air Consumption (m³/min) Power (kW) Unpacked Weight (kg) Dimension (mm)
VPMC1 1 64 0.2-0.8 0.6-0.8 <0.5 1.3 660 1135*1928*2385
VPMC4 4 256 0.8-3.0 0.6-0.8 <2.0 5.7 1241 1936*2110*2409
VPMC6 6 384 1.0-4.0 0.6-0.8 <3.0 7.6 1620 2566*2110*2409
VPMC8 8 512 2.0-6.0 0.6-0.8 <4.0 9.6 2035 3256*2110*2409
