NIR Polymer Sorter Machine VPM Series Plastic Color Sorting Machine
NIR Polymer Sorter Machine VPM Series Plastic Color Sorting Machine
Specifications
Brand Name :
PHOENIX
Model Number :
VPM SWIR Sorter
Place of Origin :
Hefei
MOQ :
1
Price :
Price Negotiable
Payment Terms :
,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
5-8 work days
Model :
VPM1
Chute :
1
Air Nozzle :
64
Throughput (t/h) :
0.2-0.8
Air Pressure (MPa) :
0.6-0.8
Air Consumption (m³/min) :
<0.5
Unpacked Weight (kg) :
660
Dimension (mm) :
1135*1928*2385
Description
VPM Series NIR Polymer Sorter Machine

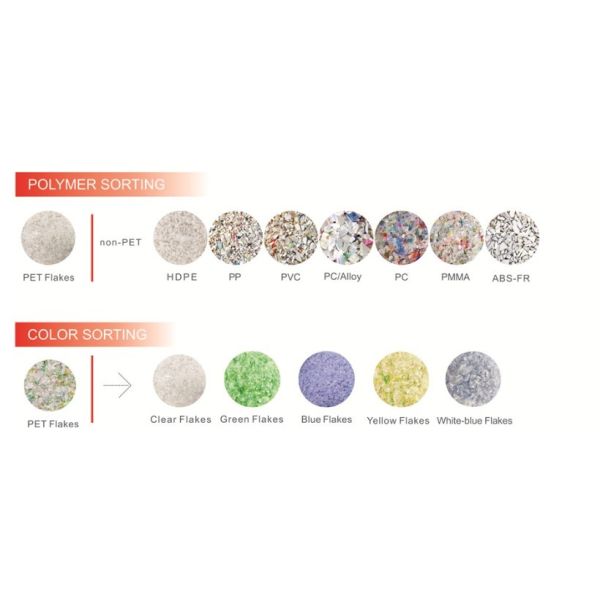

Discover VPM advanced NIR-based sorting solutions for efficient PET and non-PET plastic separation. The high-output, low-loss VPM series polymer sorter machines detect and remove non-PET flakes like PP, PC, PS, ABS, PE, PET-G, PVC, and PMMA. Integrating visible light, they sort by color and material simultaneously

Main Applications
  • Effectively detects and removes non-PET materials from PET flakes
  • Customized model for the separation of HDPE/PP flakes
  • Optional HD version available for enhanced purification of PET powder
  • The VPM sorter combines near-infrared and color sensor to accurately separate flakes by polymer and color.

NIR Polymer Sorter Machine VPM Series Plastic Color Sorting Machine

Specifications
ModelChuteAir NozzleThroughput (t/h)Air Pressure (MPa)Air Consumption (m³/min)Power (kW)Unpacked Weight (kg)Dimension (mm)
VPM11640.2-0.80.6-0.8<0.51.36601135*1928*2385
VPM442560.8-3.00.6-0.8<2.04.212502150*1928*2385
VPM663841.0-4.00.6-0.8<3.06.218502825*1928*2385
VPM885122.0-6.00.6-0.8<4.08.223003518*1928*2385
