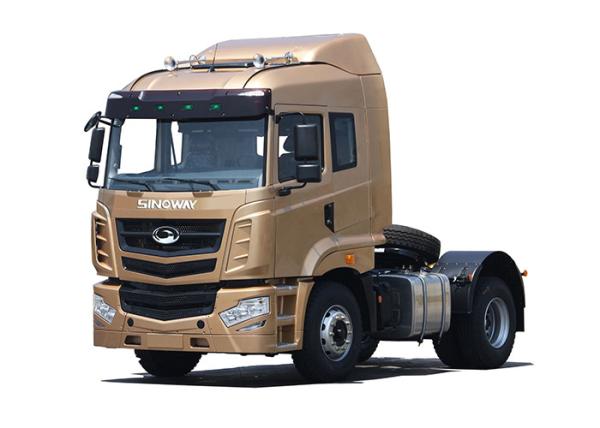

4x2 2 Axles 6 Wheeler Head Trucks / Tractor Truck SWTT37542HHH2
4x2 2 Axles 6 Wheeler Head Trucks / Tractor Truck SWTT37542HHH2
Specifications
Brand Name :
SINOWAY
Model Number :
SWTT37542HHH2
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Engine :
SW6D18 375
Rated power :
276kw/1900rpm
Max. torque :
1720N.m/1250rpm
Displacement :
9.84 L
Kerb weight :
7900kg
Peak traction capacity :
40 ton
Description

4x2 2 Axles 6 Wheeler Trucks Head Trucks For Sale Construction Dump Truck Tractor Truck

Engine 　
Model SW6D18 375
Description German tech, AVL developed,
mechanical type, diesel fue
Type Inline, six-cylinder, four-valve,
water-cooled wet cylinder liners,
turbocharged and intercooled
Rated power 276kw/1900rpm
Max. torque 1720N.m/1250rpm
Displacement 9.84 L
Main Technical Specification 　
Kerb weight 7900kg
Peak traction capacity 40000kg
Max.traveling speed 104km/h
Min. turning radius 4808mm
Grade ability 30%
Min.ground clearance 255mm
Approach angle 19°
Departure angle 45°
Fuel tank capacity 500L
The fifth wheel JOST2.0"
Fuel consumption 32L/100km
Dimensions 　
Overall size(L×W×H) 5850×2495(2975)×3950mm
Wheel base 3400mm
Tread(F/R) 2065/1860mm
Overhang(F/R) 1495/1020mm
Axle And Tyre 　
Front axle capacity 7.5 ton
Front axle type Disk
Rear axle capacity 16 ton
Rear axle type Drum
Ratio 3.876
Tyre size 12R22.5
Steering System 　
Driving position Left hand drive
Type Power steering
Transmission System 　
Type ZF tech mechanical transmission with
synchronizer and sevo,16 forward & 2 reverse
Ratio 　
Forward 1 15.2
Forward 2 11.6
Forward 3 10.4
Forward 4 8
Forward 5 7.46
Forward 6 5.73
Forward 7 5.31
Forward 8 4.07
Forward 9 3.72
Forward 10 2.86
Forward 11 2.56
Forward 12 1.96
Forward 13 1.83
Forward 14 1.41
Forward 15 1.3
Forward 16 1
Reverse 1 12.3
Reverse 2 9.41
Clutch And Brake 　
Clutch German SACHS
ABS German WABCO
Service brake Foot operated compressed air
braking system,two circuits,front/rear distribution
Parking brake Hand operated
spring brake system,
brake force applies on the rear axle
Auxiliary brake Exhaust brake
Emergency brake Two circuits,
front/rear distribution
Electric System 　
Batteries 24 Volt/165Ah
System voltage 24V
Suspension 　
Front suspension 9 semi-elliptic leaf spring
Rear suspension 9+6 semi-elliptic leaf spring
