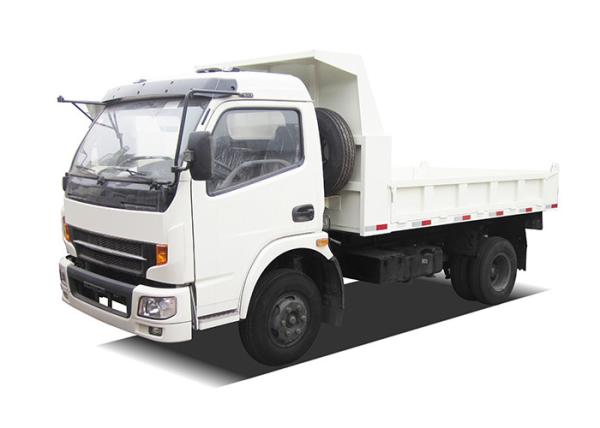

4x2 6 Wheeler Tipper Construction Giant Dump Truck With 92KW Cummins Engine
4x2 6 Wheeler Tipper Construction Giant Dump Truck With 92KW Cummins Engine
Specifications
Brand Name :
SINOWAY
Model Number :
SWDT12042CY
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Dump Truck Tipper
Engine :
CUMMINS
Rated power :
92KW
Max. torque :
410N.m/1500~1700rpm
Max. payload capacity :
6000Kg
G.V.W :
10708Kg
Description

6x4 6 Wheeler Tipper Construction Dump Truck With 92KW Cummins Engine

Engine 　
Make CUMMINS
Type Four cylinder, direct injection water cooled, diesel engine
Rated power 92KW
Torque 410N.m/1500~1700rpm
Fuel consumption 13L/100km
Main Technical Specification 　
N.V.W 3270Kg
Max. payload capacity 6000Kg
G.V.W 10708Kg
Axle loading capacity(F/R) 3008/7700Kg
Max. traveling speed 110km/h
Grade ability 30%
Approach angle 20°
Departure angle 13°
Min. Turning radius 15m
Ground clearance 176mm
Dimensions 　
Overall size(L×W×H) 5995×2150×2350mm
Wheel base 3308mm
Front tread 1740mm
Rear tread 1610mm
Overhang(F/R) 1130/1565mm
Transmission System 　
6 forward & 1 reverse 　
Ratio 　
Forward 6.64, 4.00, 2.41, 1.52, 1, 0.78
Reverse 6.11
Dump Body 　
Overall length 3700mm
Overall width 2000mm
Overall height 400mm
Side plate thickness 6mm
Under floor thickness 8mm
Hoist Engineering lifting, single lifting
Steering System 　
Driving position Right hand drive
Axle And Tyre 　
Front axle Reinforced
Rear axle Reinforced
Rear axle ratio 4.33
Tyre size 215/75R17.5
Electric System 　
Batteries 2*12 Volt – 150 AH*2
Alternator 24 Volt/70A
Starter 24 Volt/7.80kw
Clutch And Brake 　
Single-plate dry coil-spring clutch, hydraulically operated with air assistance
Service brake Dual circuit compressed air brake
Parking brake Spring energy operating on rear wheels
Auxiliary brake Engine exhaust brake
Suspension 　
Front suspension 9 semi-elliptic leaf spring
Rear suspension 12 semi-elliptic leaf spring
