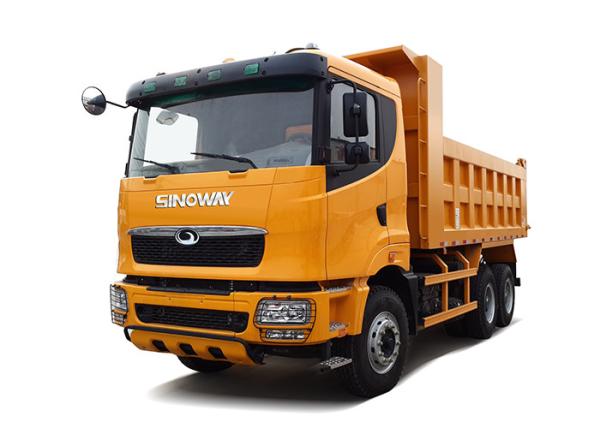

375hp Horsepower Dump Tipper Truck FULLER Tech Transmission With Synchronizer
375hp Horsepower Dump Tipper Truck FULLER Tech Transmission With Synchronizer
Specifications
Brand Name :
SINOWAY
Model Number :
SWDT37564CF9
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Dump Truck Tipper
Engine :
CUMMINS
Transmission System :
FULLER tech transmission with synchronizer 12 forward & 1 reverse
Hoist :
HVYA front lifting
Tyre size :
12R22.5/12.00R20
Front/Rear axle :
Reinforced
Description

Cummins Engine 375hp Horsepowerheavy Duty Dump/Tipper Truck FULLER Tech Transmission With Synchronizer

Engine 　
Make CUMMINS
Type Six cylinder,direct injection turbocharged,water cooled
Rated power 275KW
Torque 2200rpm
Main Technical Specification 　
Curb Weight 14000kg
Payload capacity 25500kg
G.V.W 39500kg
Axle loading capacity(F/R) 7500/2×16000kg
Max. traveling speed 85km/h
Grade ability 48%
Approach angle 25°
Departure angle 24°
Fuel consumption ＜38L/100km
Fuel tank capacity 350L
Dimensions 　
Overall size(L×W×H) 8450×2500×3650mm
Wheel base 3900+1350mm
Front overhang 1512mm
Rear overhang 1895mm
Transmission System 　

FULLER tech transmission with synchronizer 12 forward & 1 reverse

　
Ratio 　
Forward 12.10,9.41,7.31,5.71,4.46,3.48, 2.71,2.11,1.64,1.28,1.00,0.78
Reverse 11.56,2.59
Dump Body 　
Overall length 5400mm
Overall width 2300mm
Overall height 1300mm
Side plate thickness 5mm
Under floor thickness 8mm
Hoist HVYA front lifting
Steering System 　
Driving position Left hand drive
Axle And Tyre 　
Front axle Reinforced
Rear axle Reinforced
Rear axle ratio 5.73
Tyre size 12R22.5/12.00R20
Electric System 　
Batteries 2*12 Volt – 150 AH*2
Alternator 24 Volt/70A
Starter 24 Volt/7.80kw
Clutch And Brake 　

Single-plate dry coil-spring clutch, hydraulically operated with air assistance

　
Service brake Dual circuit compressed air brake
Parking brake Spring energy operating on rear wheels
Auxiliary brake Engine exhaust brake
Suspension 　
Front suspension 9 semi-elliptic leaf spring
Rear suspension 12 semi-elliptic leaf spring

375hp Horsepower Dump Tipper Truck FULLER Tech Transmission With Synchronizer
