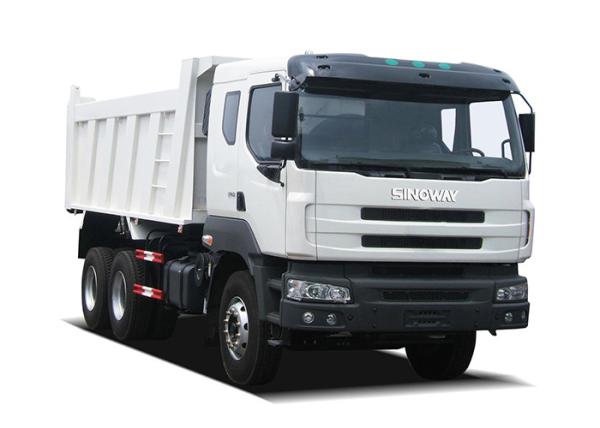

Heavy Duty Construction Dump Truck FULLER Transmission System 340hp Horsepower
Heavy Duty Construction Dump Truck FULLER Transmission System 340hp Horsepower
Specifications
Brand Name :
SINOWAY
Model Number :
SWDT34064YF
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Dump Truck Tipper
Engine :
YUCHAI
Engine type :
Six cylinder,direct injection turbocharged,water cooled
Curb Weight :
13000Kg
Payload capacity :
25500Kg
G.V.W :
38500Kg
Description

FULLER tech. Transmission System 340hp HorsepowerHeavy Duty Dump/Tipper Truck Construction Dump Truck

Engine 　
Make YUCHAI
Type Six cylinder,direct injection turbocharged,water cooled
Rated power 250KW
Torque 2200rpm
Main Technical Specification 　
Curb Weight 13000Kg
Payload capacity 25500Kg
G.V.W 38500Kg
Axle loading capacity(F/R) 6500/2×16000Kg
Max. traveling speed 85km/h
Grade ability 48%
Approach angle 25°
Departure angle 24°
Fuel consumption ＜38L/100km
Fuel tank capacity 350L
Dimensions 　
Overall size(L×W×H) 8807×2530×3400mm
Wheel base 3800+1450mm
Front overhang 1512mm
Rear overhang 1895mm
Transmission System 　

FULLER tech. 10GSD160 with synchronizer 10 forward & 2 reverse

　
Ratio 　
Forward 14.86, 11.02 , 8.07, 6.02, 4.46, 3.33, 2.47, 1.81, 1.35, 1.00
Reverse 14.24, 3.19
Dump Body 　
Overall length 5600mm
Overall width 2300mm
Overall height 1250mm
Side plate thickness 4mm
Under floor thickness 5mm
Hoist Middle lifting
Steering System 　
Driving position Left hand drive
Axle And Tyre 　
Front axle Reinforced
Rear axle Reinforced
Rear axle ratio 5.92
Tyre size 12R22.5
Electric System 　
Batteries 2*12 Volt – 150 AH*2
Alternator 24 Volt/70A
Starter 24 Volt/7.80kw
Clutch And Brake 　
Single-plate dry coil-spring clutch, hydraulically operated with air assistance 　
Service brake Dual circuit compressed air brake
Parking brake Spring energy operating on rear wheels
Auxiliary brake Engine exhaust brake
Suspension 　
Front suspension 9 semi-elliptic leaf spring
Rear suspension 12 semi-elliptic leaf spring

Heavy Duty Construction Dump Truck FULLER Transmission System 340hp Horsepower
