ZF Tech Transmission HITACHI Steering System
ZF Tech Transmission HITACHI Steering System
Specifications
Brand Name :
SINOWAY
Model Number :
SWDT38564HS9
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Dump Truck Tipper
Hoist :
HVYA front lifting
Steering System :
HITACHI
Transmission System :
ZF
Driving position :
Left hand drive
Tyre size :
12.00R20
Description

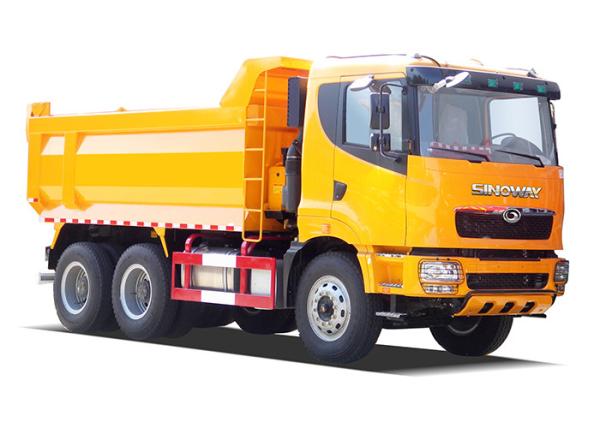

ZF Tech Transmission HITACHI Steering System 386HP 6x4 Dump Truck Construction Dump Truck

Engine 　
Make SINOWAY SW6D18.385
Type Mechanical, 6 cylinder,water-cooled turbocharged,direct-injection
Rated power 284KW
Rated speed 1900rpm
Max. Torque 1750N.m/1250rpm
Main Technical Specification 　
Curb Weight 16450Kg
Max. payload capacity 30000Kg
Axle loading capacity(F/R) 7500/2×16000Kg
Max. traveling speed 78km/h
Grade ability 30%
Ground Clearance 255mm
Approach angle 25°
Departure angle 24°
Fuel tank capacity 320L(Aluminum)
Min. turning radius 7m
Dimensions 　
Overall size(L×W×H) 8780×2500×3360mm
Wheel base 4100+1350mm
Front overhang 1370mm
Rear overhang 1130mm
Tread 2065/2065/1860mm
Transmission System 　
ZF tech transmission,mechanical with synchronizer and servo 　
Ratio 　
Forward 12.07, 8.35, 5.67, 4.07, 2.96, 2.05, 1.39, 1.00
Reverse 11.24
Dump Body 　
Overall length 5600mm
Overall width 2300mm
Overall height 1500mm
Side plate thickness 8mm
Under floor thickness 10mm
Hoist HVYA front lifting
Steering System 　
Hydraulic steering with power assistance(HITACHI)
Driving position Left hand drive
Axle And Tyre 　
Front axle Reinforced
Rear axle Reinforced
Rear axle ratio 5.263
Tyre size 12.00R20
Electric System 　
Batteries 2*12 Volt – 150 AH*2
Alternator 24 Volt/70A
Starter 24 Volt/7.80kw
Clutch And Brake 　
Single-plate dry coil-spring clutch, hydraulically operated with air assistance 　
Service brake Dual circuit compressed air brake
Parking brake Spring energy operating on rear wheels
Auxiliary brake Engine exhaust brake
Suspension 　
Front suspension 9 semi-elliptic leaf spring
Rear suspension 12 semi-elliptic leaf spring
