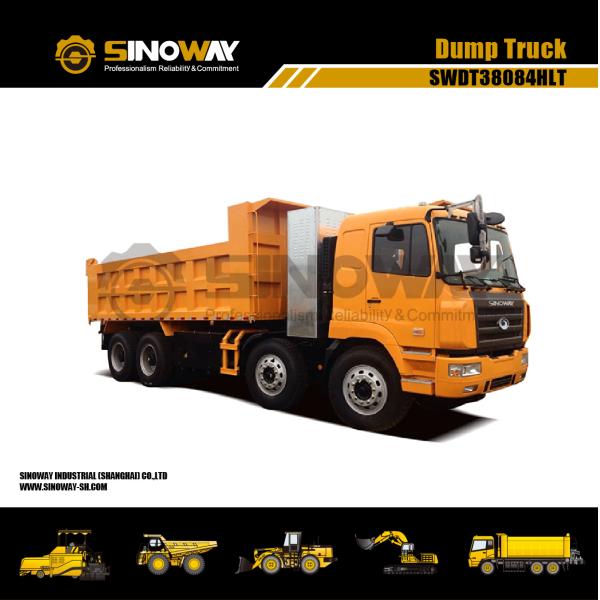

Heavy Duty Construction Dump Truck , 8x4 Dump Tipper Truck CNG Tank 351~450 hp
Heavy Duty Construction Dump Truck , 8x4 Dump Tipper Truck CNG Tank 351~450 hp
Specifications
Brand Name :
SINOWAY
Model Number :
SWDT38084HLT
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Dump Truck Tipper
Engine :
WP12NG380E40
Rated power :
280kw/2200rpm
Engine type :
Six-cylinder,in line, water cool,turbocharged intercooling
Fuel tank capacity :
320L
CNG tank capacity :
4×200L behind the cabin/4×80L beside the chassis
Description

CNG Tank 351~450hp Horsepower 8x4 Heavy Duty Dump/Tipper Truck For Sale Construction Dump Truck

Engine 　
Make WP12NG380E40
Type Six-cylinder,in line, water cool,turbocharged intercooling
Rated power 280kw
Rated speed 2200rpm
Max. Torque 1500N.m/1400-1600rpm
Main Technical Specification 　
Curb Weight 16000kg
Payload capacity 30000kg
Axle loading capacity(F/R) 2×7500/2×16000kg
Max. traveling speed 80km/h
Grade ability 30%
Approach angle 25°
Departure angle 24°
Fuel consumption 35L/100km
Fuel tank capacity 320L
CNG tank capacity 4×200L behind the cabin/4×80L beside the chassis
Dimensions 　
Overall size(L×W×H) 10500× 2500×3450mm
Wheel base 1940+3860+1450mm
Tread 2065/1860/1860/1860mm
Min. ground clearance 255mm
Transmission System 　
ZF16S1950 with synchronizer 16 forward & 2 reverse 　
Ratio 　
Forward 15.387,13.054,10.574,8.999,6.957,
5.920,4.583,3.900,3.357,2.875,2.307,
1.963,1.518,1.292,1.000,0.851
Reverse 12.440,10.587
Dump Body 　
Overall length 6500mm
Overall width 2300mm
Overall height 1300mm
Side plate thickness 6mm
Under floor thickness 8mm
Hoist HVYA front lifting
Steering System 　
Hydraulic steering with power assistance 　
Driving position Left hand drive
Axle And Tyre 　
Front axle Stub axle with double T-cross sectio Capacity: 7500kg
Rear axle Hub reduction and final drive Capacity: 16000kg
Rear axle ratio 5.263
Tyre size 12R22.5
Electric System 　
Batteries 2*12 Volt – 150 AH*2
Alternator 24 Volt/70A
Starter 24 Volt/7.80kw
Clutch And Brake 　
Single-plate dry coil-spring clutch, hydraulically operated with air assistance 　
Service brake Dual circuit compressed air brake
Parking brake Spring energy operating on rear wheels
Auxiliary brake Engine exhaust brake
Suspension 　
Front suspension 9 semi-elliptic leaf spring
Rear suspension 12 semi-elliptic leaf spring

Heavy Duty Construction Dump Truck , 8x4 Dump Tipper Truck CNG Tank 351~450 hp
