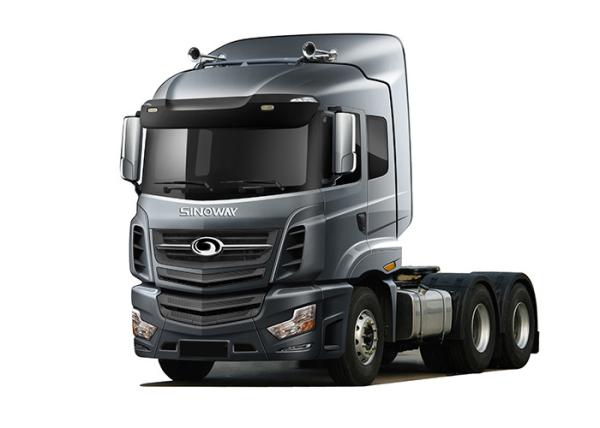

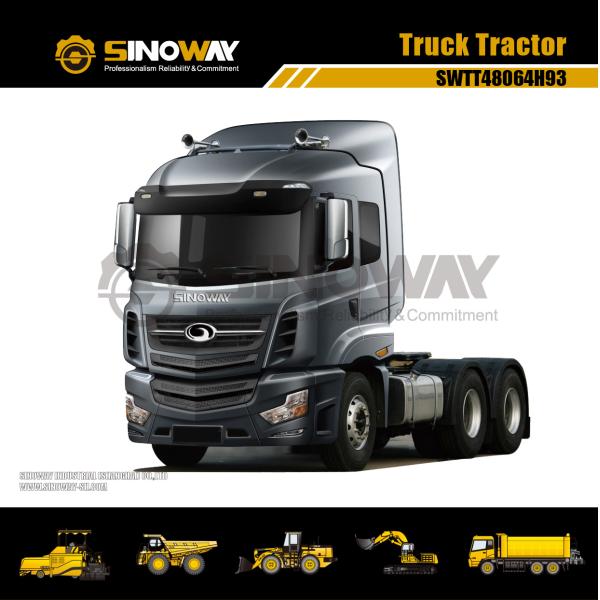

480HP Powerful Tractor Truck 6x4 Heavy Duty
480HP Powerful Tractor Truck 6x4 Heavy Duty
Specifications
Brand Name :
SINOWAY
Model Number :
SWTT48064H93
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Truck Tractor
Engine :
YC6K1248(German tech)
Rated power :
353kW/480Hp/1900rpm
Displacement :
11.8 L
The fifth wheel :
JOST3.5"
Peak traction capacity :
100000Kg
Description

480HP Powerful Tractor Truck 6x4 Heavy Duty Tractor Construction Dump Truck Truck Tractor With German Tech

Engine 　
Model YC6K1248(German tech)
Type Six cylinder,four-stroke,water-cooled,
in-line,dry-liner,direct-injection,turbo charged
Controller type Electronic
Air cleaner Dry paper element
Rated power 353kW / 480Hp
Rated speed 1900rpm
Max. torque 2250N.m/1100-1450rpm
Bore × stroke 128*153 mm
Displacement 11.8 L
Main Technical Specification 　
Kerb weight 10000Kg
GCW (Gross combination weight) 100000Kg
Max.traveling speed 80km/h
Min. turning radius 8318mm
Grade ability 30%
Min.ground clearance 290mm
Approach angle 19°
Departure angle 45°
Fuel tank capacity 600L
The fifth wheel JOST3.5"
Fuel consumption (empty loading) ＜30L/100km
Fuel consumption (full loading) ＜50L/100km
Dimensions 　
Overall size(L×W×H) 7640×2500(2980)×3950mm
Wheel base 3900+1350mm
Tread(F/R) 2065/1860mm
Overhang(F/R) 1550/840mm
Transmission System 　
FULLER tech mechanical transmission
with synchronizer
12 forward & 2 reverse		 　
Ratio 　
Forward 1 12.1
Forward 2 9.41
Forward 3 7.31
Forward 4 5.71
Forward 5 4.46
Forward 6 3.48
Forward 7 2.71
Forward 8 2.11
Forward 9 1.64
Forward 10 1.28
Forward 11 1
Forward 12 0.78
Reverse 1 11.56
Reverse 2 2.59
Steering System 　
Steering device ZF
Driving position Left hand drive
Type Hydraulic assistance
Axle And Tyre 　
Front axle capacity 10000kg
Front axle type Disk
Rear axle capacity 2×16000kg
Rear axle type Drum
Ratio 5.921
Tyre size 12.00R20
Clutch And Brake 　
Clutch EATON
ABS WABCO
Service brake Foot operated compressed air
braking system,two circuits,front/rear distribution
Parking brake Hand operated
spring brake system,
brake force applies on the rear axle
Auxiliary brake JACOB engine brake
Emergency brake Two circuits,
front/rear distribution
Electric System 　
Batteries 24 Volt/165Ah
System voltage 24V
Suspension 　
Front suspension Tapered leaf spring 4
semi-elliptic leaf spring
Rear suspension Tapered leaf spring 9+6
semi-elliptic leaf spring
