800V Gas Tube Arrester SC2E5-800LSMD 5KA GDT Surge Protection With 8/20μS Pulse
800V Gas Tube Arrester SC2E5-800LSMD 5KA GDT Surge Protection With 8/20μS Pulse
800V Gas Tube Arrester SC2E5-800LSMD 5KA GDT Surge Protection With 8/20μS Pulse
800V Gas Tube Arrester SC2E5-800LSMD 5KA GDT Surge Protection With 8/20μS Pulse
Specifications
Brand Name :
SOCAY
Model Number :
SC2E5-800LSMD
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
Gas Discharge Tube
Size :
5*5*4.2mm
DC Spark-over Voltage @100V/μs :
800V±20%
Max. Spark-over Impulse Voltage @100V/μs :
1200V
Max. Spark-over Impulse Voltage @1KV/μs :
1400V
Max. Capacitance :
1.0pF
Nom.Max. Impulse Discharge Current Impulse Discharge Current :
5KA
Max. Impulse Discharge Current :
10KA
Nom. Alternating Discharge Current :
5A
Impulse Life :
100A
Description

800V Gas Discharge Tube Arresters SC2E5-800LSMD, 5KA Surge Capability Tested with 8/20μs Pulse

DATASHEET: SC2E5-SMD_v2110.1.pdf

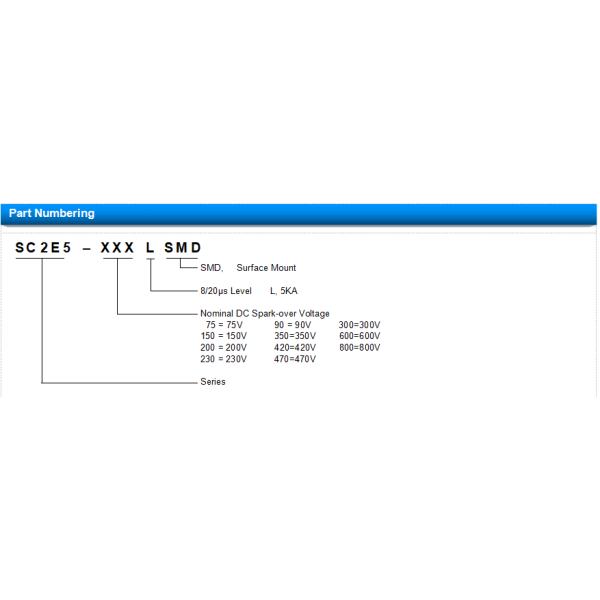

Part Number

DC

Spark-over Voltage

Maximum

Impulse Spark-over

Voltage

 Minimum Insulation Resistance Maximum Capacitance Arc Voltage Service Life

Nominal

Impulse Discharge Current

 Max Impulse Discharge Current Nominal Alternating Discharge Current

Impulse

Life
@100V/S @100V/μs @1KV/μs @1MHz @1A

@8/20μs

±5 times

@8/20μs

1 time

@50Hz

1 Sec

10 times

@10/1000μs

300 times
SC2E5-75LSMD 75V±20% ＜500V ＜650V 1 GΩ (at 50V DC) ＜1.0pF ~15V 5KA 10KA 5A 100A
SC2E5-90LSMD 90V±20% ＜500V ＜650V 1 GΩ (at 50V DC) ＜1.0pF ~15V 5KA 10KA 5A 100A
SC2E5-150LSMD 150V±20% ＜500V ＜650V 1 GΩ (at 50V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-200LSMD 200V±20% ＜500V ＜650V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-230LSMD 230V±20% ＜600V ＜700V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-300LSMD 300V±20% ＜700V ＜800V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-350LSMD 350V±20% ＜700V ＜800V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-420LSMD 420V±20% ＜800V ＜950V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-470LSMD 470V±20% ＜900V ＜1000V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-600LSMD 600V±20% ＜1100V ＜1200V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-800LSMD 800V±20% ＜1200V ＜1400V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A

Notes:

  • Terms in accordance with ITU-T K.12 and GB/T 9043-2008
  • At delivery AQL 0.65 level Ⅱ, DIN ISO 2859



Descriptions:

Gas discharge Tubes (GDT) are classical components for protecting the installations of the telecommunications. It is essential that IT and telecommunications systems -with their high-grade but sensitive electronic circuits - be protected by arresters. They are thus fitted at the input of the power supply system together with varistors and at the connection points to telecommunication lines. They have become equally indispensable for protecting base stations in mobile telephone systems as well as extensive cable television (CATV) networks with their repeaters and distribution systems.


800V Gas Tube Arrester SC2E5-800LSMD 5KA GDT Surge Protection With 8/20μS Pulse
Features:

  • Non-Radioactive
  • RoHS compliant
  • Low insertion loss
  • Excellent response to fast rising transients
  • Ultra low capacitance

  • 5KA surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5


800V Gas Tube Arrester SC2E5-800LSMD 5KA GDT Surge Protection With 8/20μS Pulse

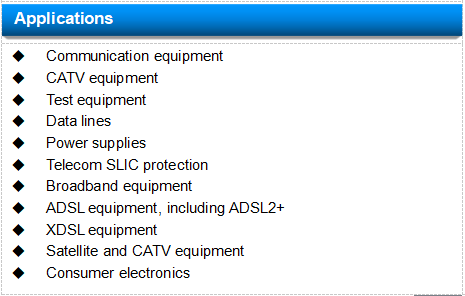

These protective components are also indispensable in other sectors, In AC power transmission systems, they are often used with current-limiting varistors, In customer premises equipment such as DSL modems, WLAN routers, TV sets and cable modems In air-conditioning equipment, the integral black-box concept offers graduated protection by combining arresters with varistors, PTC, diodes and inductor.

800V Gas Tube Arrester SC2E5-800LSMD 5KA GDT Surge Protection With 8/20μS Pulse

800V Gas Tube Arrester SC2E5-800LSMD 5KA GDT Surge Protection With 8/20μS Pulse
