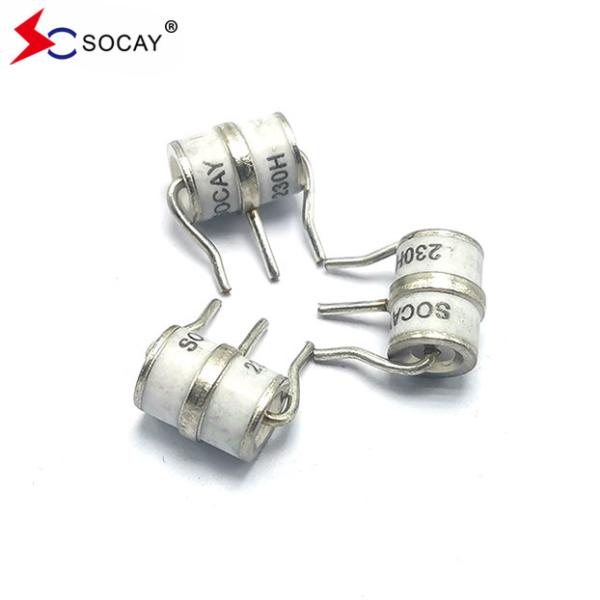

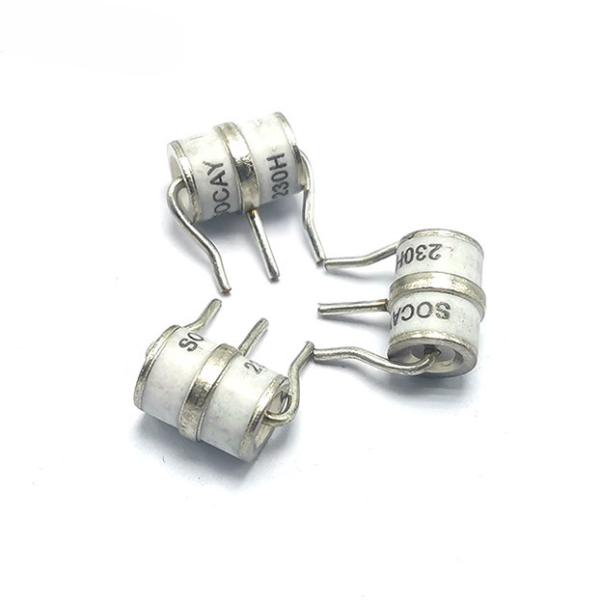

SOCAY Radial Leaded Gas Discharge Arrester GDT SC3E8-600HM Ultra Low Capacitance
SOCAY Radial Leaded Gas Discharge Arrester GDT SC3E8-600HM Ultra Low Capacitance
SOCAY Radial Leaded Gas Discharge Arrester GDT SC3E8-600HM Ultra Low Capacitance
SOCAY Radial Leaded Gas Discharge Arrester GDT SC3E8-600HM Ultra Low Capacitance
SOCAY Radial Leaded Gas Discharge Arrester GDT SC3E8-600HM Ultra Low Capacitance
SOCAY Radial Leaded Gas Discharge Arrester GDT SC3E8-600HM Ultra Low Capacitance
Specifications
Brand Name :
SOCAY
Model Number :
SC3E8-600HM
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
Gas Discharge Tube
Size :
φ8*10mm
DC Spark-over Voltage @100V/μs :
600V±20%
Max. Spark-over Impulse Voltage @100V/μs :
500V
Max. Spark-over Impulse Voltage @1KV/μs :
600V
Min. Insulation Resistance :
1GΩ (@25V)
Nom. Impulse Discharge Current :
10KA
Max. Impulse Discharge Current :
20KA
Storage Temperature :
-40°C~+90°C
Description

SOCAY Radial Leaded Devices GDT SC3E8-600HM, Ultra Low Capacitance

DATASHEET: SC3E8_v2308.1.pdf

Part Number Marking DC Spark-over Voltage Maximum Impulse Spark-over Voltage Minimum Insulation Resistance Maximum Capacitance Arc Voltage Service Life

Nominal

Impulse Discharge Current

 Max Impulse Discharge Current Nominal Alternating Discharge Current Impulse Life
@100V/S @100V/μs @1KV/μs @1MHz @1A

@8/20μs 4)

±5 times

@8/20μs 4)

1 time

@50Hz 4)

1 Sec

10 times

@10/1000μs 4)

300 times

SC3E8-75HM

SC3E8-75HMF

SC3E8-75HP

SC3E8-75H

SOCAY

75H

 75V±20% ＜500V ＜600V 1 GΩ (at 50V) ＜1.5pF ~25V 20KA 25KA 20A 200A

SC3E8-90HM

SC3E8-90HMF

SC3E8-90HP

SC3E8-90H

SOCAY

90H

 90V±20% ＜500V ＜600V 1 GΩ (at 50V) ＜1.5pF ~25V 20KA 25KA 20A 200A

SC3E8-150HM

SC3E8-150HMF

SC3E8-150HP

SC3E8-150H

SOCAY

150H

 150V±20% ＜500V ＜600V 1 GΩ (at 50V) ＜1.5pF ~25V 20KA 25KA 20A 200A

SC3E8-230HM

SC3E8-230HMF

SC3E8-230HP

SC3E8-230H

SOCAY

230H

 230V±20% ＜600V ＜700V 1 GΩ (at 100V) ＜1.5pF ~25V 20KA 25KA 20A 200A

SC3E8-250HM

SC3E8-250HMF

SC3E8-250HP

SC3E8-250H

SOCAY

250H

 250V±20% ＜600V ＜700V 1 GΩ (at 100V) ＜1.5pF ~25V 20KA 25KA 20A 200A

SC3E8-300HM

SC3E8-300HMF

SC3E8-300HP

SC3E8-300H

SOCAY

300H

 300V±20% ＜800V ＜900V 1 GΩ (at 100V) ＜1.5pF ~25V 20KA 25KA 20A 200A

SC3E8-350HM

SC3E8-350HMF

SC3E8-350HP

SC3E8-350H

SOCAY

350H

 350V±20% ＜800V ＜900V 1 GΩ (at 100V) ＜1.5pF ~25V 20KA 25KA 20A 200A

SC3E8-420HM

SC3E8-420HMF

SC3E8-420HP

SC3E8-420H

SOCAY

420H

 420V±20% ＜900V ＜1000V 1 GΩ (at 100V) ＜1.5pF ~25V 20KA 25KA 20A 200A

SC3E8-470HM

SC3E8-470HMF

SC3E8-470HP

SC3E8-470H

SOCAY

470H

 470V±20% ＜900V ＜1000V 1 GΩ (at 100V) ＜1.5pF ~25V 20KA 25KA 20A 200A

SC3E8-600HM

SC3E8-600HMF

SC3E8-600HP

SC3E8-600H

SOCAY

600H

 600V±20% ＜1100V ＜1200V 1 GΩ (at 100V) ＜1.5pF ~25V 20KA 25KA 20A 200A

SC3E8-800HM

SC3E8-800HMF

SC3E8-800HP

SC3E8-800H

SOCAY

800H

 800V±20% ＜1200V ＜1400V 1 GΩ (at 100V) ＜1.5pF ~25V 20KA 25KA 20A 200A

Notes:

1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008

2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859

3). Tip or ring electrode to center electrode

4). Total current through center electrode, half value through tip respectively ring electrode

SOCAY Radial Leaded Gas Discharge Arrester GDT SC3E8-600HM Ultra Low Capacitance

Features:

Non-Radioactive.

RoHS compliant.

Low insertion loss.

Excellent response to fast rising transients.

Ultra low capacitance.

20KA surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5.

Applications:

Communication equipment.

CATV equipment.

Test equipment.

Data lines.

Power supplies.

Telecom SLIC protection.

Broadband equipment.

ADSL equipment, including ADSL2+.

XDSL equipment.

Satellite and CATV equipment.

Consumer electronics.
