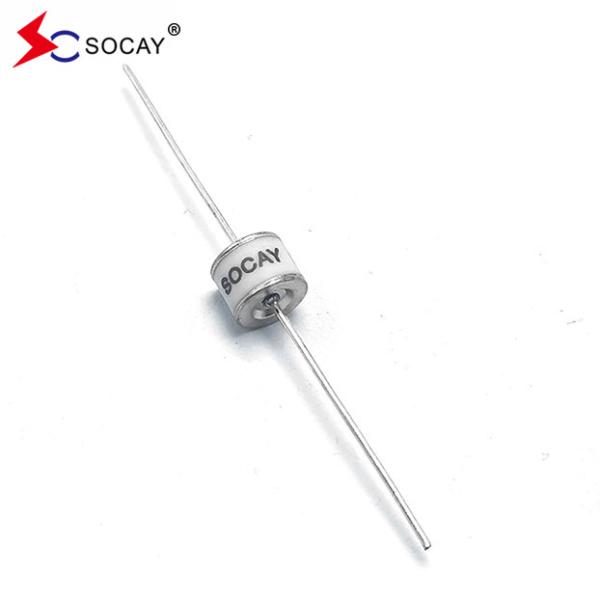

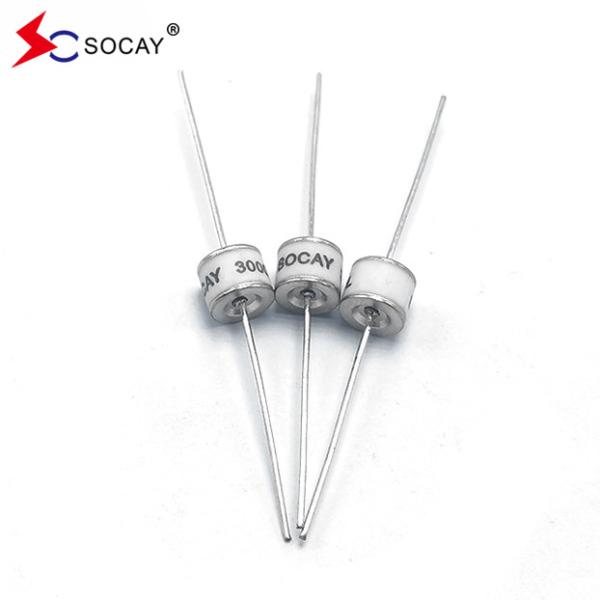

Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection
Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection
Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection
Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection
Specifications
Brand Name :
SOCAY
Model Number :
SC2E8-99L
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
Gas Discharge Tube
Size :
φ8*6mm
DC Spark-over Voltage @100V/μs :
90V±20%
Max. Spark-over Impulse Voltage @100V/μs :
500V
Max. Spark-over Impulse Voltage @1KV/μs :
600V
Min. Insulation Resistance :
1GΩ (@50V)
Nom. Impulse Discharge Current :
20KA
Max. Impulse Discharge Current :
25KA
Storage Temperature :
-40°C~+90°C
Max. Capacitance :
1.5pF
Description

90V±20% Ceramic Gas Discharge Tube SC2E8-90HL, Axial Leaded GDT for Telecom SLIC Protection

DATASHEET: SC2E8_v91.1.pdf

Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection

Part Number Marking

DC Spark-

over Voltage

 Maximum Impulse Spark-over Voltage Minimum Insulation Resistance Maximum Capacitance Arc Voltage Service Life

Nominal

Impulse Discharge Current

 Max Impulse Discharge Current

Nominal

Impulse Discharge Current

 Impulse Life
@100V/S @100V/μs @1KV/μs @1MHz @1A

@8/20μs

±5 times

@8/20μs

1 time

@50Hz

1 Sec

10 times

@10/1000μs

300 times

SC2E8-75H

SC2E8-75HL

SC2E8-75HSMD

SOCAY

75H

 75V±20% ＜500V ＜600V 1 GΩ (at 25V) ＜1.5pF ~15V 20KA 25KA 20A 200A

SC2E8-90H

SC2E8-90HL

SC2E8-90HSMD

SOCAY

90H

 90V±20% ＜500V ＜600V 1 GΩ (at 50V) ＜1.5pF ~15V 20KA 25KA 20A 200A

SC2E8-150H

SC2E8-150HL

SC2E8-150HSMD

SOCAY

150H

 150V±20% ＜500V ＜600V 1 GΩ (at 50V) ＜1.5pF ~20V 20KA 25KA 20A 200A

SC2E8-230H

SC2E8-230HL

SC2E8-230HSMD

SOCAY

230H

 230V±20% ＜600V ＜700V 1 GΩ (at 100V) ＜1.5pF ~20V 20KA 25KA 20A 200A

SC2E8-250H

SC2E8-250HL

SC2E8-250HSMD

SOCAY

250H

 250V±20% ＜700V ＜800V 1 GΩ (at 100V) ＜1.5pF ~20V 20KA 25KA 20A 200A

SC2E8-300H

SC2E8-300HL

SC2E8-300HSMD

SOCAY

300H

 300V±20% ＜800V ＜900V 1 GΩ (at 100V) ＜1.5pF ~20V 20KA 25KA 20A 200A

SC2E8-350H

SC2E8-350HL

SC2E8-350HSMD

SOCAY

350H

 350V±20% ＜800V ＜900V 1 GΩ (at 100V) ＜1.5pF ~20V 20KA 25KA 20A 200A

SC2E8-420H

SC2E8-420HL

SC2E8-420HSMD

SOCAY

420H

 420V±20% ＜900V ＜1000V 1 GΩ (at 100V) ＜1.5pF ~20V 20KA 25KA 20A 200A

SC2E8-470H

SC2E8-470HL

SC2E8-470HSMD

SOCAY

470H

 470V±20% ＜900V ＜1000V 1 GΩ (at 100V) ＜1.5pF ~20V 20KA 25KA 20A 200A

SC2E8-600H

SC2E8-600HL

SC2E8-600HSMD

SOCAY

600H

 600V±20% ＜1100V ＜1200V 1 GΩ (at 100V) ＜1.5pF ~20V 20KA 25KA 20A 200A

SC2E8-800H

SC2E8-800HL

SC2E8-800HSMD

SOCAY

800H

 800V±20% ＜1200V ＜1400V 1 GΩ (at 100V) ＜1.5pF ~20V 20KA 25KA 20A 200A

Notes:

1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008

2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859

Applications:

Communication equipment.

CATV equipment.

Test equipment.

Data lines.

Power supplies.

Telecom SLIC protection.

Broadband equipment.

ADSL equipment, including ADSL2+.

XDSL equipment.

Satellite and CATV equipment.

Consumer electronics.
