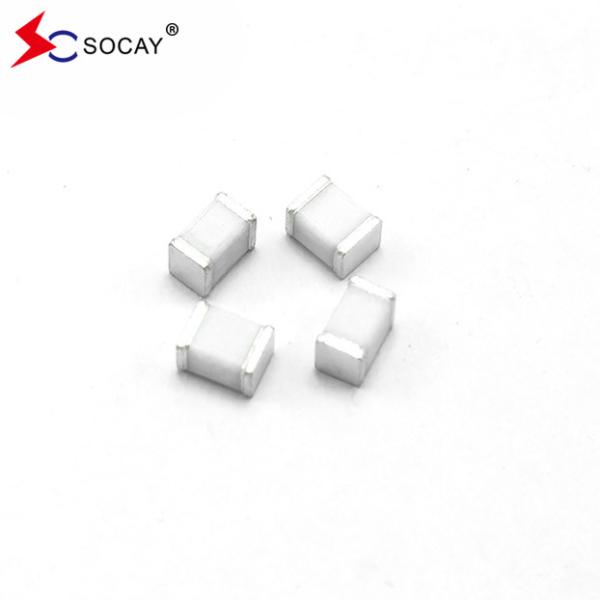

1.0pF 230V Gas Discharge Tube SC1812-230CSMD For Protecting Power Supplies
1.0pF 230V Gas Discharge Tube SC1812-230CSMD For Protecting Power Supplies
1.0pF 230V Gas Discharge Tube SC1812-230CSMD For Protecting Power Supplies
1.0pF 230V Gas Discharge Tube SC1812-230CSMD For Protecting Power Supplies
Specifications
Brand Name :
SOCAY
Model Number :
SC1812-230CSMD
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
2500PCS
Price :
Negotiable
Delivery Time :
1-2weeks
Description :
Gas Discharge Tube
pattern :
SMD surface amount
Shape :
Square
package :
4.5*3.2*2.7mm
DC Spark-over Voltage @100V/μs :
230V±20%
Max. Spark-over Impulse Voltage @100V/μs :
600V
Max. Spark-over Impulse Voltage @1KV/μs :
750V
Min. Insulation Resistance :
1GΩ (@50V DC)
Max. Capacitance :
1.0pF
Arc Voltage @1A :
15V
Nom. Impulse Discharge Current :
2KA
Description

1.0pF 230V Gas Discharge Tube SC1812-230CSMD, for Protecting Power Supplies

DATASHEET: SC1812_v2106.1.pdf

Classification

Surface Mount(package size):1206,1210,1812

DIP:2-Electrode,3-Electrode

DC Voltage:75V~800V

High DC Voltage :1000V~6000V

Current:0.5KA~20KA

Response Time≤100NS,SWITH components.

Part Number DC Spark-over Voltage Maximum Impulse Spark-over Voltage Minimum Insulation Resistance Maximum Capacitance Arc Voltage

Nominal

Impulse Discharge Current
@100V/S @100V/μs @1KV/μs @1MHz @1A

@8/20μs

±5 times
SC1812-230CSMD 230V±20% ＜600V ＜750V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA
SC1812-300CSMD 300V±20% ＜800V ＜900V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA
SC1812-350CSMD 350V±20% ＜800V ＜900V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA
SC1812-400CSMD 400V±20% ＜900V ＜1000V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA
SC1812-420CSMD 420V±20% ＜900V ＜1000V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA
SC1812-470CSMD 470V±20% ＜900V ＜1000V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA
SC1812-600CSMD 600V±20% ＜1100V ＜1200V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA

Notes:

  • Terms in accordance with ITU-T K.12 and GB/T 9043-2008
  • At delivery AQL 0.65 level Ⅱ, DIN ISO 2859




1.0pF 230V Gas Discharge Tube SC1812-230CSMD For Protecting Power Supplies
Features:

  • Non-Radioactive
  • RoHS compliant
  • Ultra low capacitance (<1.0 pF)
  • UL recognized
  • Excellent response to fast rising transients
  • 2KA surge capability tested with 8/20μs

1.0pF 230V Gas Discharge Tube SC1812-230CSMD For Protecting Power Supplies

FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ ?
A: MOQ depend on the type of product, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
