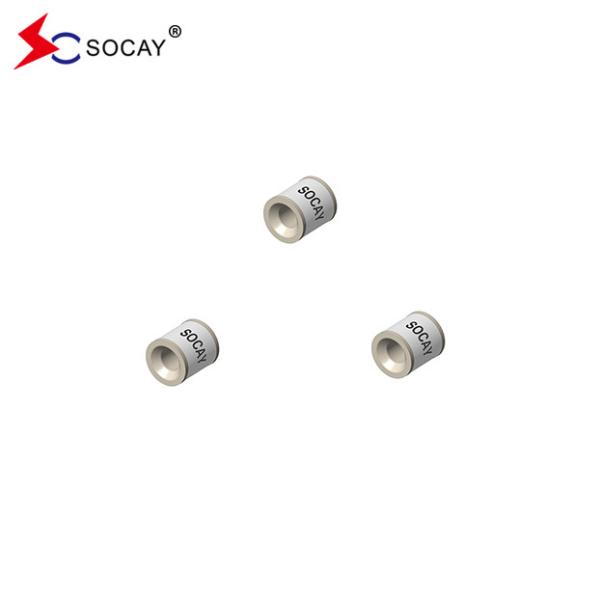

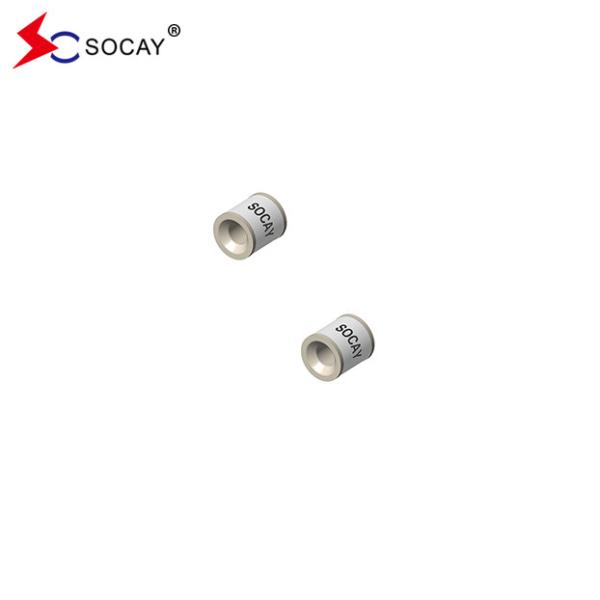

2-Electrode Ceramic Gas Tube Arrester GDT 5KA Surge Capability SC2E5-600L
2-Electrode Ceramic Gas Tube Arrester GDT 5KA Surge Capability SC2E5-600L
2-Electrode Ceramic Gas Tube Arrester GDT 5KA Surge Capability SC2E5-600L
2-Electrode Ceramic Gas Tube Arrester GDT 5KA Surge Capability SC2E5-600L
Specifications
Brand Name :
SOCAY
Model Number :
SC2E5-600L
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
Gas Discharge Tube
Size :
φ5.5*6mm
DC Spark-over Voltage @100V/μs :
600V±20%
Max. Spark-over Impulse Voltage @100V/μs :
1100V
Max. Spark-over Impulse Voltage @1KV/μs :
1200V
Max. Capacitance :
1.0pF
Nom.Max. Impulse Discharge Current Impulse Discharge Current :
5KA
Max. Impulse Discharge Current :
10KA
Nom. Alternating Discharge Current :
5A
Description

5KA Surge Capability Gas Discharge Tube SC2E5-600L, 2-Electrode Ceramic Gas Tube Arrester

DATASHEET: SC2E5_v91.1.pdf

2-Electrode Ceramic Gas Tube Arrester GDT 5KA Surge Capability SC2E5-600L

Part

Number

 Marking DC Spark-over Voltage

Maximum

Impulse Spark-over Voltage

 Minimum Insulation Resistance Maximum Capacitance Arc Voltage Service Life

Nominal

Impulse Discharge Current

 Max Impulse Discharge Current Nominal Alternating Discharge Current

Impulse

Life
@100V/S @100V/μs @1KV/μs @1MHz @1A

@8/20μs

±5 times

@8/20μs

1 time

@50Hz

1 Sec

10 times

@10/1000μs

300 times

SC2E5-75LL

SC2E5-75L

 SOCAY75L 75V±20% ＜500V ＜600V 1 GΩ (at 25V) ＜1.0pF ~15V 5KA 10KA 5A 100A

SC2E5-90LL

SC2E5-90L

 SOCAY90L 90V±20% ＜500V ＜600V 1 GΩ (at 50V) ＜1.0pF ~15V 5KA 10KA 5A 100A

SC2E5-150LL

SC2E5-150L

 SOCAY150L 150V±20% ＜500V ＜600V 1 GΩ (at 50V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-230LL

SC2E5-230L

 SOCAY230L 230V±20% ＜600V ＜700V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-250LL

SC2E5-250L

 SOCAY250L 250V±20% ＜700V ＜800V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-300LL

SC2E5-300L

 SOCAY300L 300V±20% ＜800V ＜900V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-350LL

SC2E5-350L

 SOCAY350L 350V±20% ＜800V ＜900V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-420LL

SC2E5-420L

 SOCAY420L 420V±20% ＜900V ＜1000V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-470LL

SC2E5-470L

 SOCAY470L 470V±20% ＜900V ＜1000V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-600LL

SC2E5-600L

 SOCAY600L 600V±20% ＜1100V ＜1200V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-800LL

SC2E5-800L

 SOCAY800L 800V±20% ＜1200V ＜1400V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

Notes:

1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008

2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859


2-Electrode Ceramic Gas Tube Arrester GDT 5KA Surge Capability SC2E5-600L

Applications

  • Communication equipment
  • CATV equipment
  • Test equipment
  • Data lines
  • Power supplies
  • Telecom SLIC protection
  • Broadband equipment
  • ADSL equipment, including ADSL2+
  • XDSL equipment
  • Satellite and CATV equipment

Consumer electronics
