Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment
Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment
Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment
Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment
Specifications
Brand Name :
SOCAY
Model Number :
SC2E5-800LL
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
Gas Discharge Tube

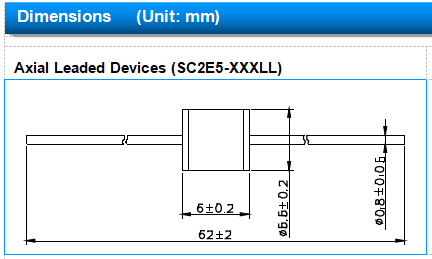

Size :
φ5.5*6mm
DC Spark-over Voltage @100V/μs :
800V±20%
Max. Spark-over Impulse Voltage @100V/μs :
1200V
Max. Spark-over Impulse Voltage @1KV/μs :
1400V
Max. Capacitance :
1.0pF
Arc Voltage @1A :
15V
Nom.Max. Impulse Discharge Current Impulse Discharge Current :
5KA
Storage Temperature :
-40°C~+90°C
Impulse Life :
100A
Description

Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment

DATASHEET: SC2E5_v91.1.pdf

Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment

Descriptions:

Gas discharge Tubes (GDT) are classical components for protecting the installations of the telecommunications. It is essential that IT and telecommunications systems -with their high-grade but sensitive electronic circuits - be protected by arresters. They are thus fitted at the input of the power supply system together with varistors and at the connection points to telecommunication lines. They have become equally indispensable for protecting base stations in mobile telephone systems as well as extensive cable television (CATV) networks with their repeaters and distribution systems.

Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment

Part

Number

 Marking DC Spark-over Voltage

Maximum

Impulse Spark-over Voltage

 Minimum Insulation Resistance Maximum Capacitance Arc Voltage Service Life

Nominal

Impulse Discharge Current

 Max Impulse Discharge Current Nominal Alternating Discharge Current

Impulse

Life
@100V/S @100V/μs @1KV/μs @1MHz @1A

@8/20μs

±5 times

@8/20μs

1 time

@50Hz

1 Sec

10 times

@10/1000μs

300 times

SC2E5-75LL

SC2E5-75L

 SOCAY75L 75V±20% ＜500V ＜600V 1 GΩ (at 25V) ＜1.0pF ~15V 5KA 10KA 5A 100A

SC2E5-90LL

SC2E5-90L

 SOCAY90L 90V±20% ＜500V ＜600V 1 GΩ (at 50V) ＜1.0pF ~15V 5KA 10KA 5A 100A

SC2E5-150LL

SC2E5-150L

 SOCAY150L 150V±20% ＜500V ＜600V 1 GΩ (at 50V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-230LL

SC2E5-230L

 SOCAY230L 230V±20% ＜600V ＜700V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-250LL

SC2E5-250L

 SOCAY250L 250V±20% ＜700V ＜800V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-300LL

SC2E5-300L

 SOCAY300L 300V±20% ＜800V ＜900V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-350LL

SC2E5-350L

 SOCAY350L 350V±20% ＜800V ＜900V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-420LL

SC2E5-420L

 SOCAY420L 420V±20% ＜900V ＜1000V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-470LL

SC2E5-470L

 SOCAY470L 470V±20% ＜900V ＜1000V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-600LL

SC2E5-600L

 SOCAY600L 600V±20% ＜1100V ＜1200V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

SC2E5-800LL

SC2E5-800L

 SOCAY800L 800V±20% ＜1200V ＜1400V 1 GΩ (at 100V) ＜1.0pF ~20V 5KA 10KA 5A 100A

Notes:

1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008

2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859


Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment
Features:

  • Non-Radioactive
  • RoHS compliant
  • Low insertion loss
  • Excellent response to fast rising transients
  • Ultra low capacitance

  • 5KA surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5


Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment

Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment
