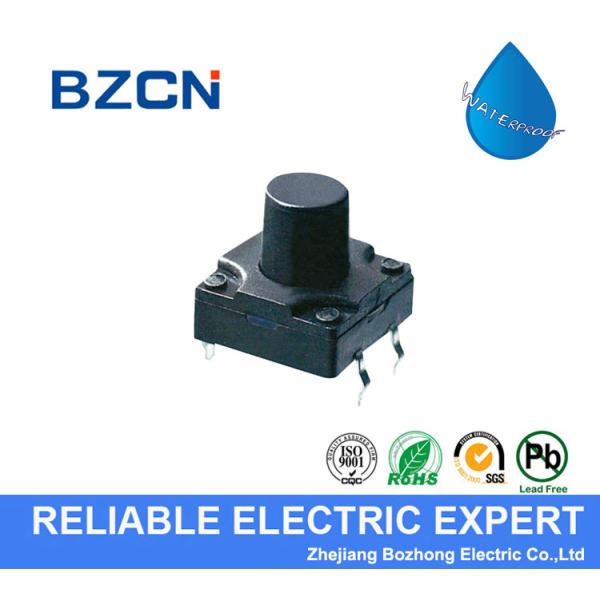

Black Thru Hole Waterproof Tactile Switch / Momentary Push Button Switch
Black Thru Hole Waterproof Tactile Switch / Momentary Push Button Switch
Black Thru Hole Waterproof Tactile Switch / Momentary Push Button Switch
Black Thru Hole Waterproof Tactile Switch / Momentary Push Button Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-G007
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
IP67
Material :
PA66
Size :
12 mm
Button :
Plastic button
Operation :
Momentary
Rating :
50mA
Description

Water proof black tactile switch thru hole momentary normal push button switch IP 67

• Surface mount PC board design
• Long Cycle Life of 200,000 Cycles
• Small package size of 2.80mm x 4.60mm x 1.90mm
• 200 gram force
• IP67 rating

Spec.

Model No. TS-G007
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

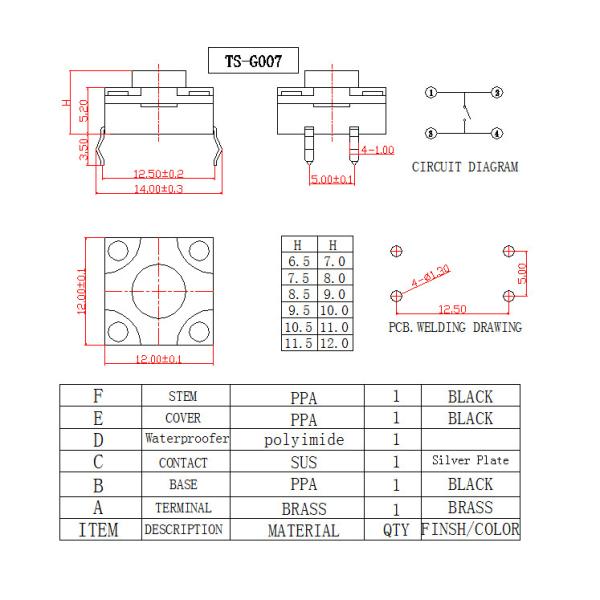

Drawing:

Black Thru Hole Waterproof Tactile Switch / Momentary Push Button Switch
