Taping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP Terminal
Taping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP Terminal
Taping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP Terminal
Taping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP Terminal
Taping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP Terminal
Taping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP Terminal
Taping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP Terminal
Taping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP Terminal
Taping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP Terminal
Taping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP Terminal
Specifications
Brand Name :
BZCN
Model Number :
TS-G005
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
IP67
Material :
PA66
Travel :
0.25 mm
Button :
Plastic button
Terminal :
Thru hole DIP
Rating :
50mA
Description

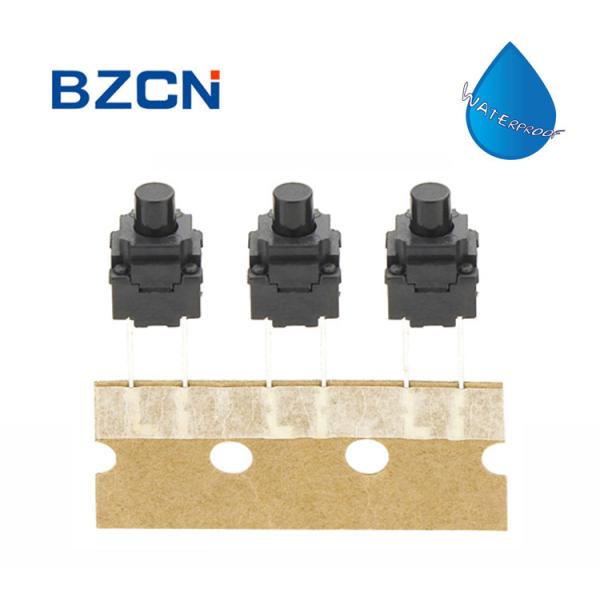

Taping type Water proof black tactile switch thru hole momentary push button switch IP 67

tactile switch is a thru hole switch that comes in radial packaging and is a sealed switch with IP67 rating.

tactile switch with radial leads is very popular in the appliance market, and other applications, including testing/instrumentation, medical, and more.

Feature.

Reflow solderable

packaging in tape reel

water proof available

dust proof in dusty enviroment

snap in type which can be derectly mounted on to PC Board

Spec.

Model No. TS-G005
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Taping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP TerminalTaping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP TerminalTaping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP TerminalTaping Type Waterproof Tactile Switch Plastic Button Thru Hole DIP Terminal
