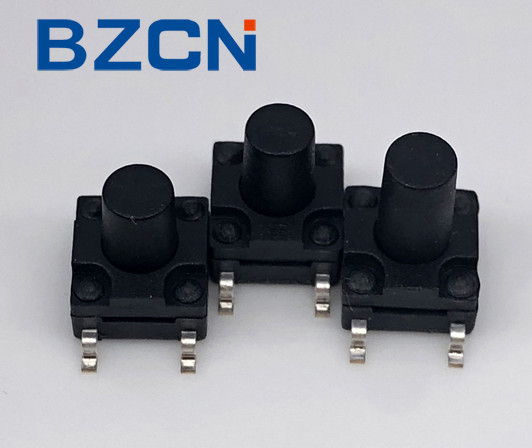

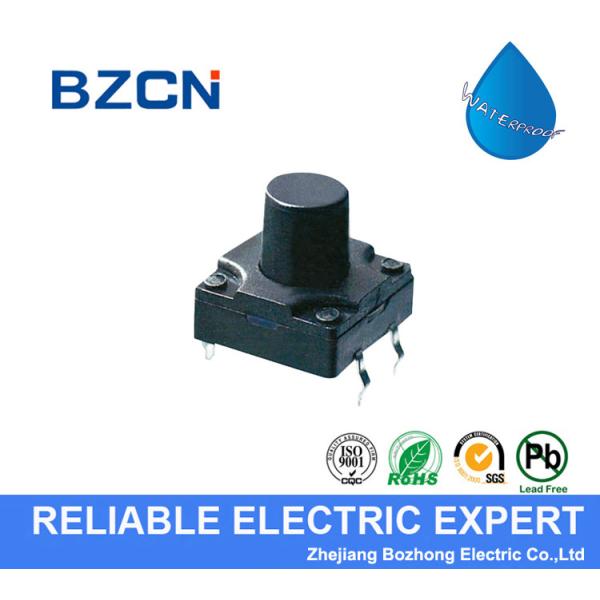

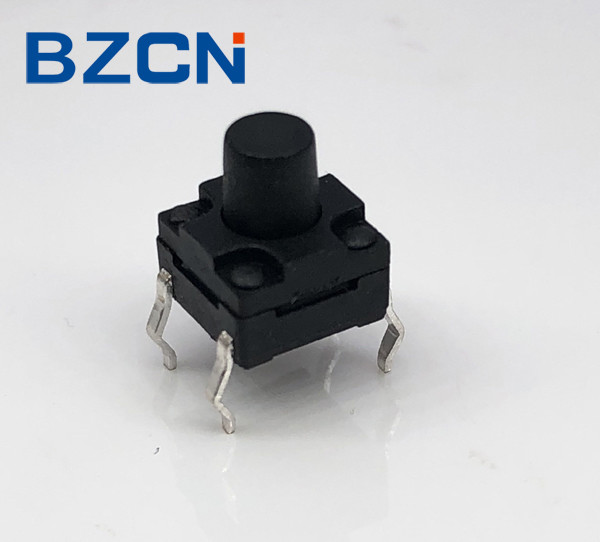

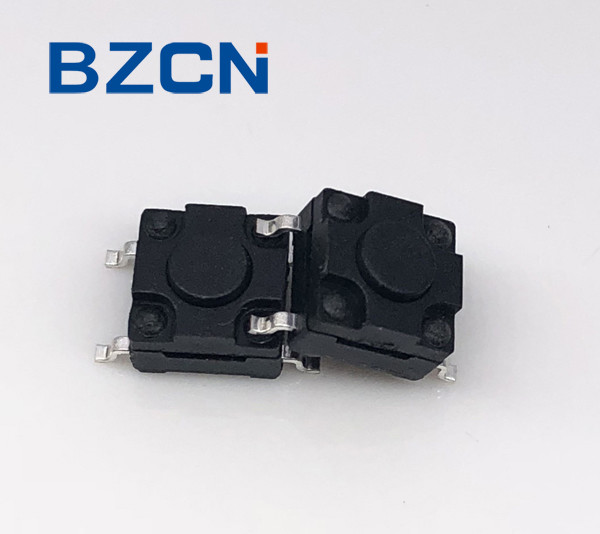

Dust Proof Waterproof Tactile Switch Round Button Multiple Actuator Heights
Dust Proof Waterproof Tactile Switch Round Button Multiple Actuator Heights
Dust Proof Waterproof Tactile Switch Round Button Multiple Actuator Heights
Dust Proof Waterproof Tactile Switch Round Button Multiple Actuator Heights
Specifications
Brand Name :
BZCN
Model Number :
TS-G002
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
IP67
Color :
Black
Travel :
Long travel
Button :
Round Button
Operation :
Momentary
Terminal :
SMD or DIP
Description

water proof black SMD DIP 6.2 mm tactile switch momentary switch

• 100,000 life cycle - long life
• Multiple actuator heights
• SMT or Thru Hole termination
• IP67 ratings

Feature.

Reflow solderable

packaging in tape reel

water proof available

dust proof in dusty enviroment

snap in type which can be derectly mounted on to PC Board

Spec.

Model No. TS-G002
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Dust Proof Waterproof Tactile Switch Round Button Multiple Actuator Heights
