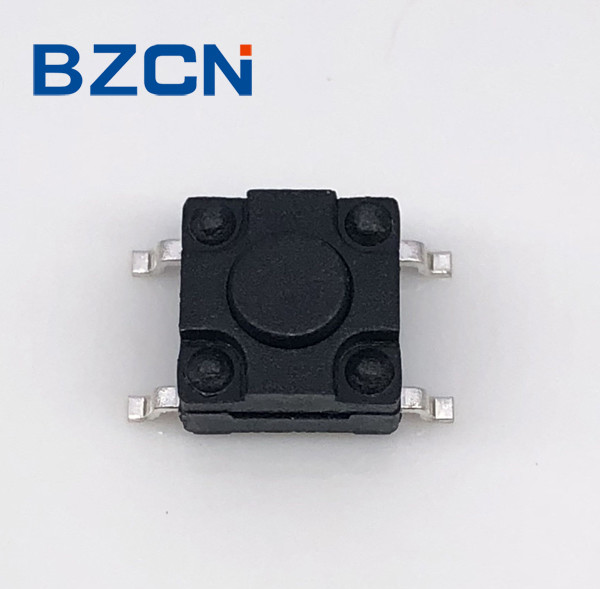

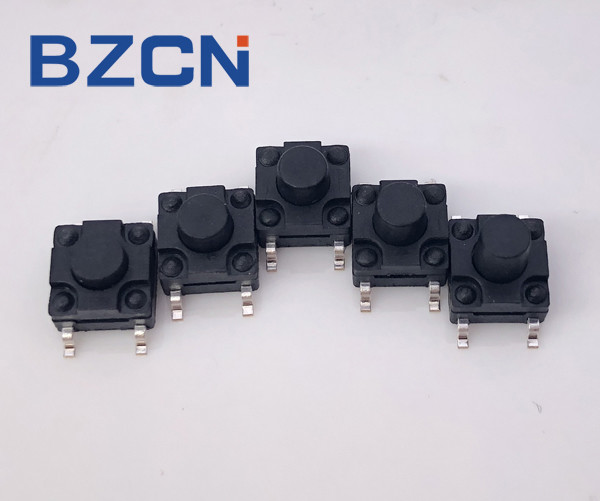

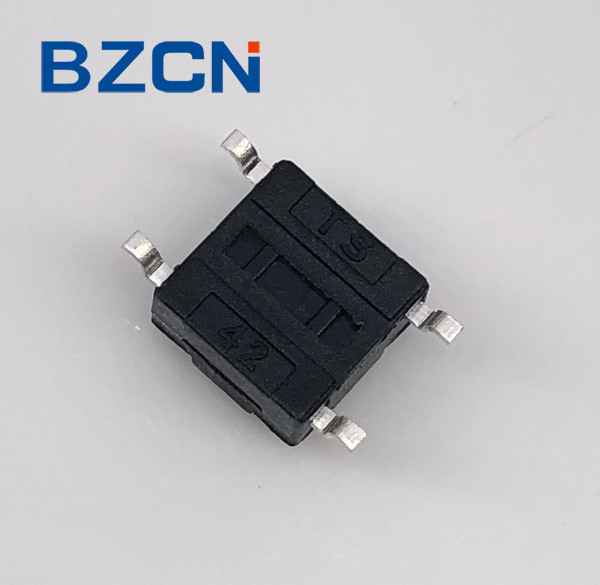

Surface Mount Push Button Switch / 12mm Tactile Switch Multiple Actuation Forces
Surface Mount Push Button Switch / 12mm Tactile Switch Multiple Actuation Forces
Surface Mount Push Button Switch / 12mm Tactile Switch Multiple Actuation Forces
Surface Mount Push Button Switch / 12mm Tactile Switch Multiple Actuation Forces
Specifications
Brand Name :
BZCN
Model Number :
TS-G002
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
washable
Material :
PA66 plastic
Travel :
0.2 mm
Button :
Black button
Operation :
Momentary
Rating :
50mA
Description

washable black surface mount 12 mm tactile switch momentary normal push button

• Single pole single throw
• Multiple actuation forces
• “Soft Touch” tactile switch
• Surface mount device

Feature.

Reflow solderable

packaging in tape reel

water proof available

dust proof in dusty enviroment

snap in type which can be derectly mounted on to PC Board

Spec.

Model No. TS-G002
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Surface Mount Push Button Switch / 12mm Tactile Switch Multiple Actuation Forces
