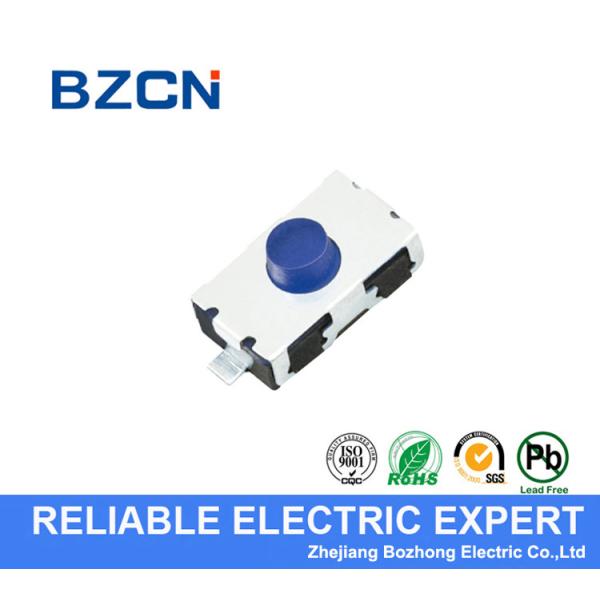

Silica Gel Blue Color Mini Push Button Switch PCB Tactile Switch With Long Travel
Silica Gel Blue Color Mini Push Button Switch PCB Tactile Switch With Long Travel
Specifications
Brand Name :
BZCN
Model Number :
TS-B009
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
IP67
Material :
PA66
Travel :
Long travel
Button :
Silicon button
Operation :
Momentary
Rating :
50mA
Description

silica gel blue color button 3.8*6mm momentary normally closed tact switch with long travel for PCB

An SMT Sealed Tactile switch, it is process sealed.

Great for use in portable handheld devices, consumer electronics, telecommunications and medical devices, car remote contral switch etc.

Feature.

Reflow solderable

packaging in tape reel

water proof available IP67

dust proof in dusty enviroment

Normally closed possible

washable

Spec.

Model No. TS-B009
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Drawing:

Silica Gel Blue Color Mini Push Button Switch PCB Tactile Switch With Long Travel
