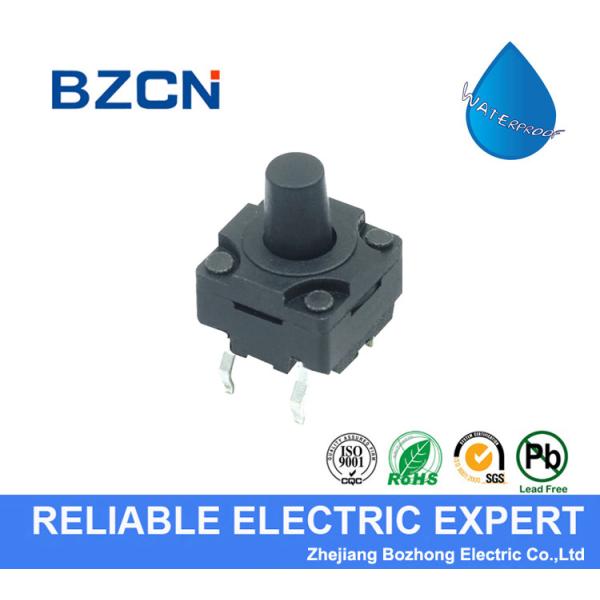

Momentary Waterproof Tactile Switch , Normally Open Push Button Switch
Momentary Waterproof Tactile Switch , Normally Open Push Button Switch
Momentary Waterproof Tactile Switch , Normally Open Push Button Switch
Momentary Waterproof Tactile Switch , Normally Open Push Button Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-G004
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
IP67
Size :
8 mm
Travel :
0.2 mm
Button :
Round Black
Operation :
Momentary
Rating :
50mA
Description

Water proof IP 67 black tact switch 8*8 mm momentary normally open push button switch

Tactile switch is a thru hole switch that comes in radial packaging .

If any doubt arise from the judgment, tests shall be conducted
at the following conditions:

Temperature………………………20℃±2℃

Relative humidity………………65%±5%

Air pressure…………………………86KPa～106Kpa

Spec.

Model No. TS-G004
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Drawing:

Momentary Waterproof Tactile Switch , Normally Open Push Button Switch
