IP67 Sealed PCB Mount Push Button Switch Through Hole Mount Design Momentary Type
IP67 Sealed PCB Mount Push Button Switch Through Hole Mount Design Momentary Type
IP67 Sealed PCB Mount Push Button Switch Through Hole Mount Design Momentary Type
IP67 Sealed PCB Mount Push Button Switch Through Hole Mount Design Momentary Type
Specifications
Brand Name :
BZCN
Model Number :
TS-G005
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
IP67
Type :
Sealed
Travel :
0.2 mm
Packing :
Radial
Operation :
SPST
Rating :
50mA
Description

Washable Round Long Foot PCB Tactile Switch momentary type push button tact switch​

tactile switch is a thru hole switch that comes in radial packaging and is a sealed switch with IP67 rating.

Feature.

• 8mm x 8mm tactile switch
• 160 ± 50; 260 ± 50 gram force options
• Through hole mount design
• IP67 sealed

Spec.

Model No. TS-G005
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

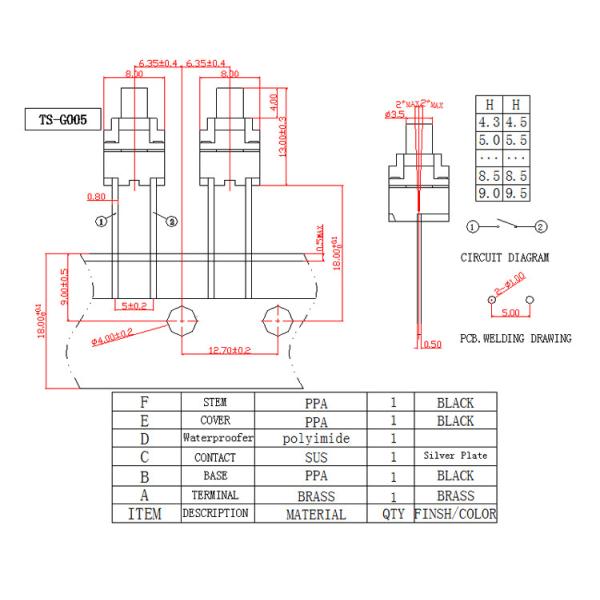

Reference:

IP67 Sealed PCB Mount Push Button Switch Through Hole Mount Design Momentary Type
