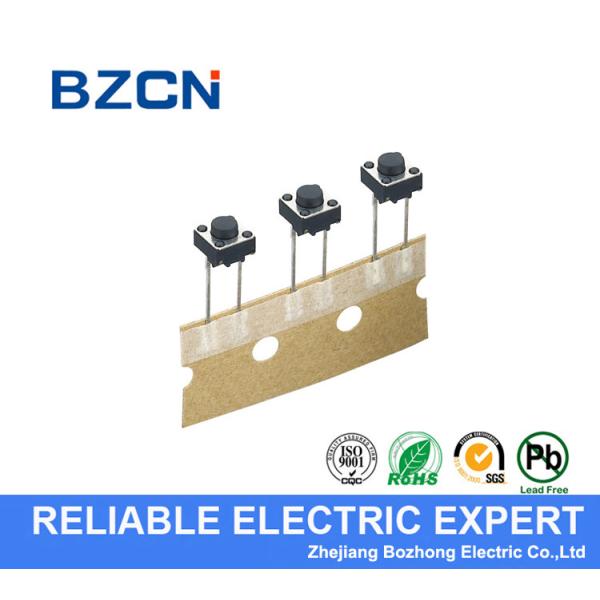

Round Long Foot PCB Tactile Switch , Momentary Push Button Switch 12 V
Round Long Foot PCB Tactile Switch , Momentary Push Button Switch 12 V
Specifications
Brand Name :
BZCN
Model Number :
TS-D015
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
IP65
Case :
PA66 black
Travel :
0.25 mm
Button :
white or black
Operation :
Directly press
Rating :
50mA
Description

12 v Round Long Foot PCB Tactile Switch momentary type push button tact switch​

Operating Temperature Range.

－20℃～80℃(Normal humidity, normal air pressure)

• 100 ± 50; 160 ± 50; 260 ± 50 gram force options
• Designed for automatic feed with radial lead packaging
• Vertical mount design

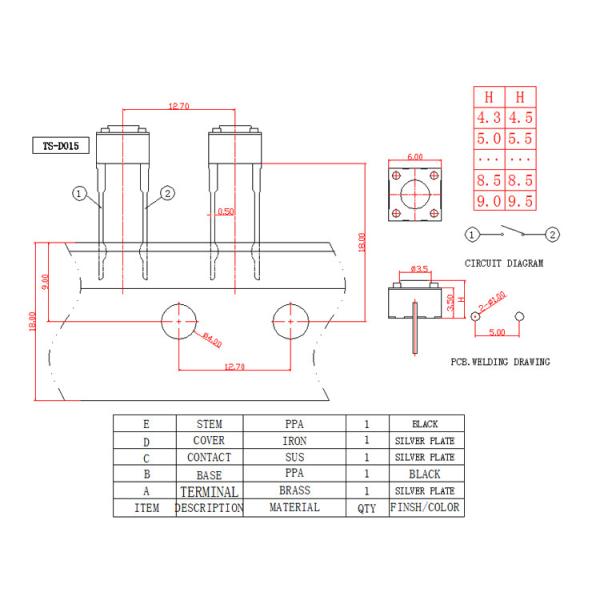

Spec.

Model No. TS-D015
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Round Long Foot PCB Tactile Switch , Momentary Push Button Switch 12 V
