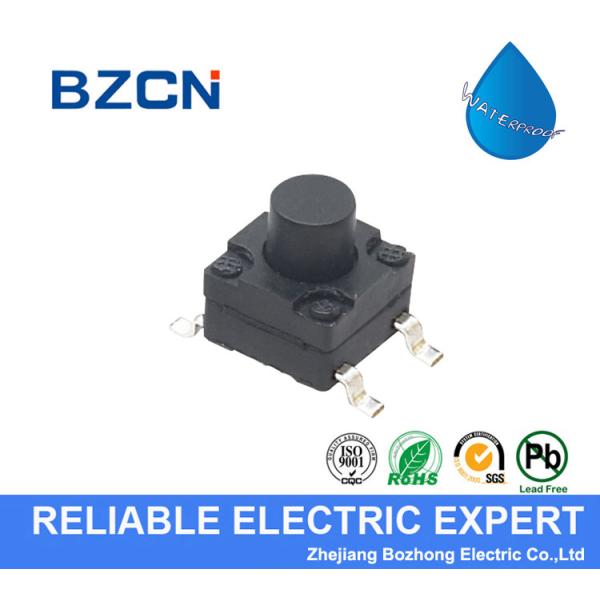

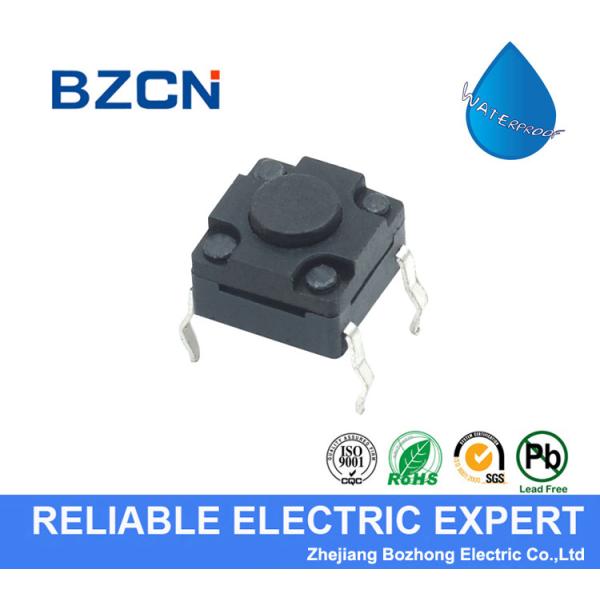

Vertical Press Waterproof Tactile Switch Stainless Steel Terminal Material
Vertical Press Waterproof Tactile Switch Stainless Steel Terminal Material
Vertical Press Waterproof Tactile Switch Stainless Steel Terminal Material
Vertical Press Waterproof Tactile Switch Stainless Steel Terminal Material
Specifications
Brand Name :
BZCN
Model Number :
TS-G002
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
Washable
Material :
PA66
Travel :
Long travel
Button :
Black round
Operation :
Vertical press
Rating :
50mA
Description

Water proof black tactile switch surface mount momentary normally open push button switch

New Low-Profile Used Mini Smd/Smt Tactile Normaly Closed Rohs Tact Switch

Case material: plastic

Housing and Button Color: Black

Terminal material: stainless steel

Dimension: 6x3.5xH mm

Height range: 4.3mm/5mm

Note:product height means the distance between button surface and switch , not including the length of terminal

Max. Current: DC 50mA

Max voltage: 12V

Welding conditions:

1) hand soldering

2) soldering tempreture: 350 °C Max

3) continuous solidering period: 3s Max

Spec.

Model No. TS-G002
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

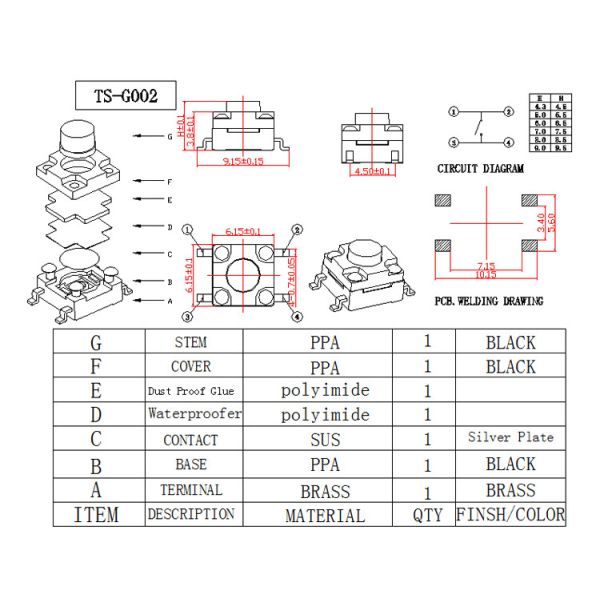

Drawing:

Vertical Press Waterproof Tactile Switch Stainless Steel Terminal Material
