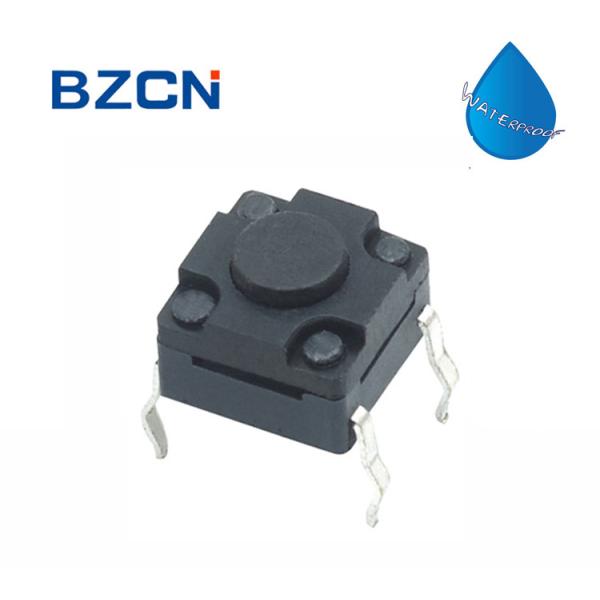

DIP Terminal Type Waterproof Tactile Switch Plastic Black Button 50mA Rating
DIP Terminal Type Waterproof Tactile Switch Plastic Black Button 50mA Rating
Specifications
Brand Name :
BZCN
Model Number :
TS-G001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
IP67
Terminal :
Snap in type
Travel :
0.2 mm
Button :
Plastic black
Operation :
SPST
Rating :
50mA
Description

Water proof black tactile switch through hole momentary normally open push button switch​

Normal Packing: 1000pcs/ polybag per box,

20boxes in one carton

Net weight: 27kg Gross weight: 30kg

Reference carton size: 45*35*28cm

(we also packing based on product using ,such as ringing style for SMD switches. )

Spec.

Model No. TS-G001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

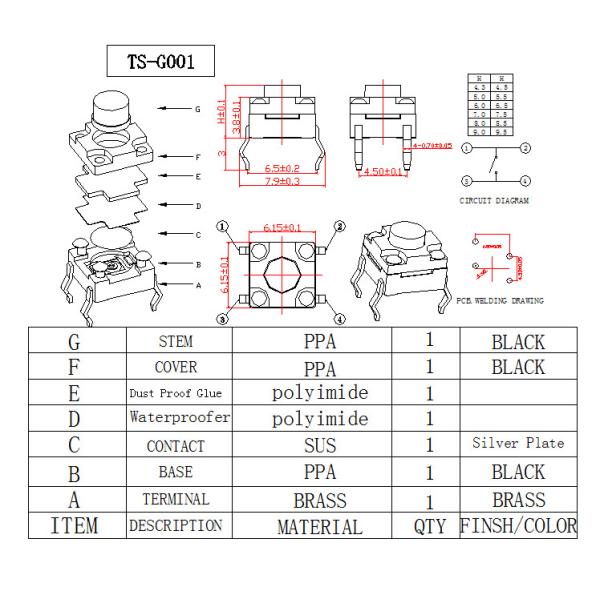

Drawing:

DIP Terminal Type Waterproof Tactile Switch Plastic Black Button 50mA Rating
