Anti Dust Black Waterproof Tactile Switch 0.15 Mm Travel With 2 Long Pin
Anti Dust Black Waterproof Tactile Switch 0.15 Mm Travel With 2 Long Pin
Anti Dust Black Waterproof Tactile Switch 0.15 Mm Travel With 2 Long Pin
Anti Dust Black Waterproof Tactile Switch 0.15 Mm Travel With 2 Long Pin
Specifications
Brand Name :
BZCN
Model Number :
TS-G003
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
IP67
Material :
PA66
Travel :
0.15 mm
Terminal :
Long radial
Operation :
Momentary
Rating :
50mA
Description

Water proof black tactile switch with 2 long pin momentary normal push button switch

tact switches come with radial lead packaging and are designed for automatic feed.

carbon contact point has the characteristics of contact resistance change due to push load. For voltage divider circuit, please use after fully confirmed.

Feature.

Reflow solderable

packaging in tape reel

water proof available

dust proof in dusty enviroment

snap in type which can be derectly mounted on to PC Board

Spec.

Model No. TS-G003
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

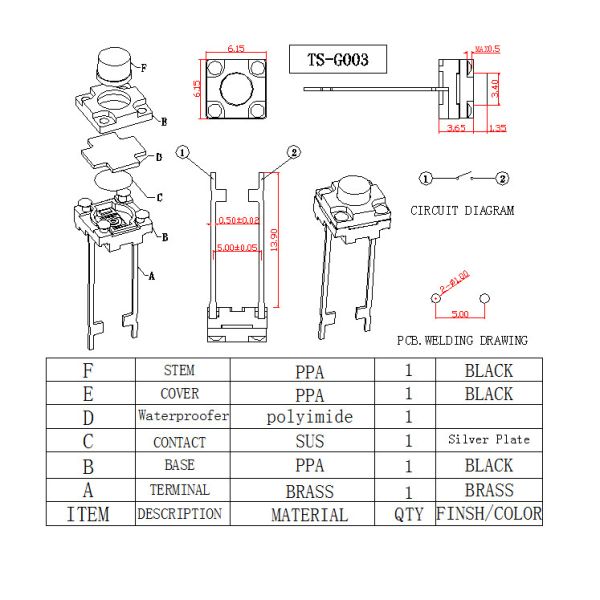

Drawing:

Anti Dust Black Waterproof Tactile Switch 0.15 Mm Travel With 2 Long Pin
