RED Surface Mount Push Button Switch , Surface Mount Tactile Switch PA66 Material
RED Surface Mount Push Button Switch , Surface Mount Tactile Switch PA66 Material
Specifications
Brand Name :
BZCN
Model Number :
TS-G002
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negociable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000000
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Waterproof :
IP67
Material :
PA66
Travel :
Long travel
Button :
Red plastic
Operation :
Momentary
Terminal :
SMD
Description

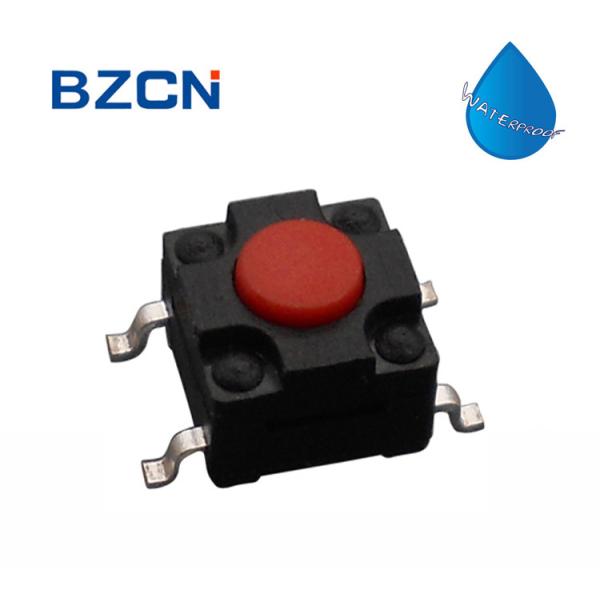

Water proof RED tactile switch surface mount momentary normally open push button switch​

This specification is applied to the requirements for TACTILE SWITCH (MECHANICAL CONTACT).

• 135 ± 50 gram force
• PC board mounting design
• Variety of caps available
• Silver plated contacts

Feature.

Reflow solderable

packaging in tape reel

water proof available

dust proof in dusty enviroment

snap in type which can be derectly mounted on to PC Board

Spec.

Model No. TS-G002
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Drawing:

RED Surface Mount Push Button Switch , Surface Mount Tactile Switch PA66 Material
