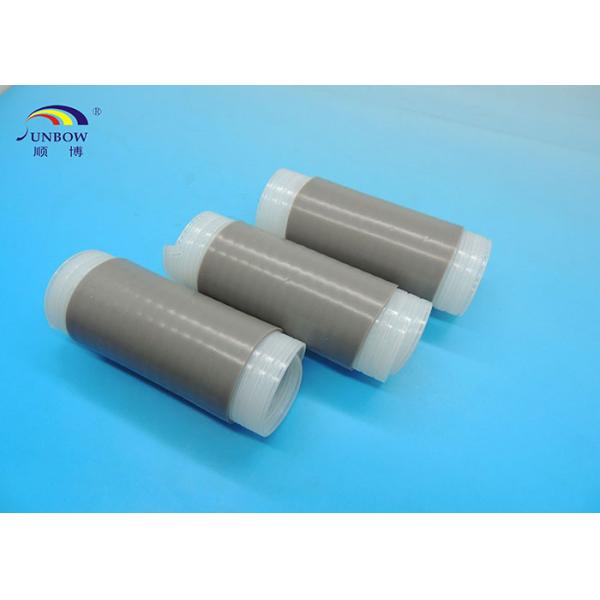

Power Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone Rubber
Power Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone Rubber
Power Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone Rubber
Power Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone Rubber
Power Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone Rubber
Power Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone Rubber
Power Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone Rubber
Power Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone Rubber
Specifications
Brand Name :
SUNBOW
Model Number :
SB-WCST
Certification :
ISO9001:2008
Place of Origin :
Shenzhen, China
MOQ :
1000 pcs each size each color
Packaging Details :
standard SUNBOW packing
Product name :
Cold Shrink Tubing
Color :
Grey
Size :
6.6mm-58mm
Brand :
SUNBOW
Raw material :
liquid silicone rubber
Description

Cable Accessories - Cold Shrink Tubing for the power station , power grid

Model number: SB-WCST

Power Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone RubberPower Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone Rubber

Description

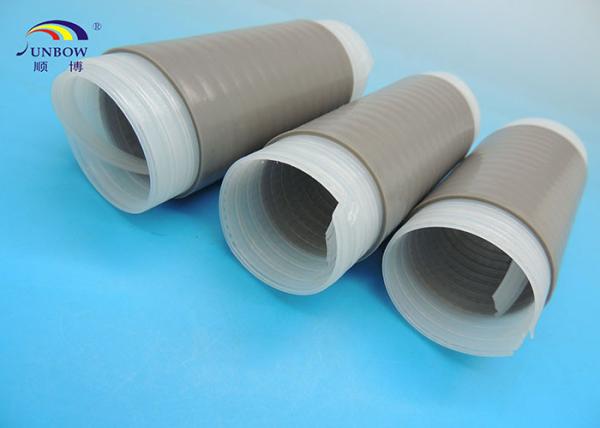

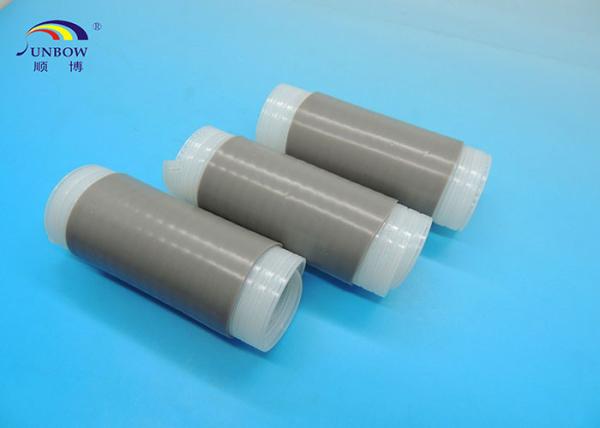

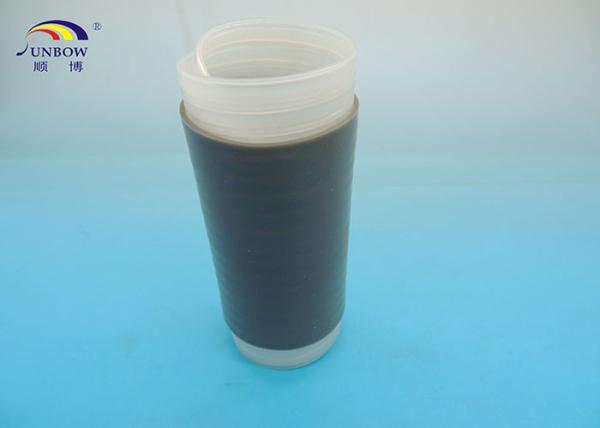

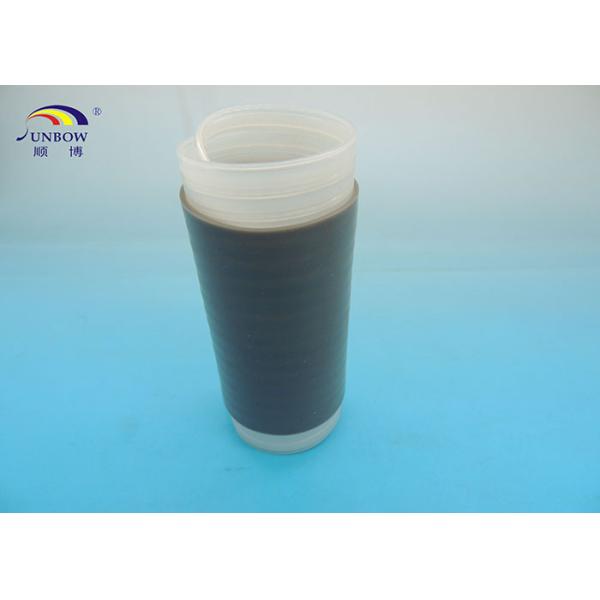

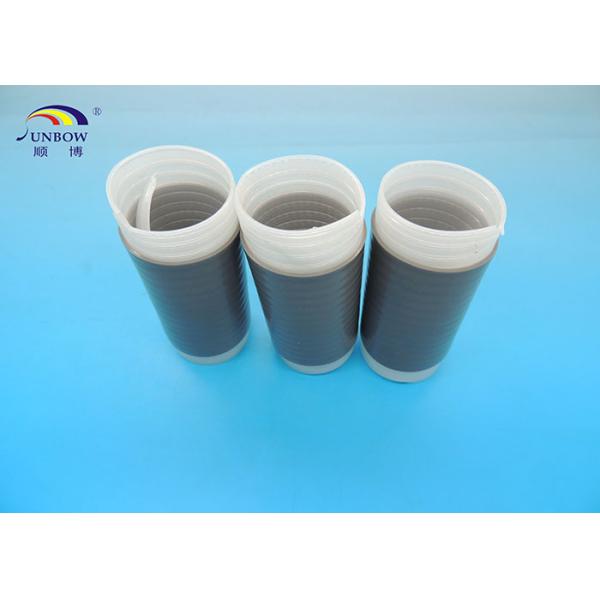

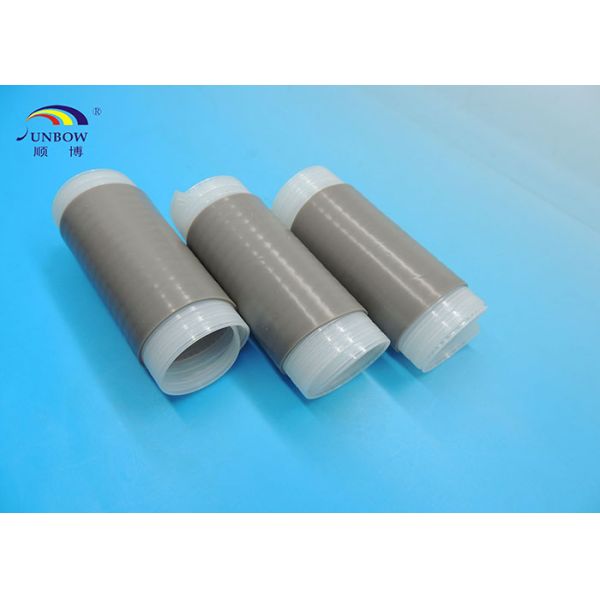

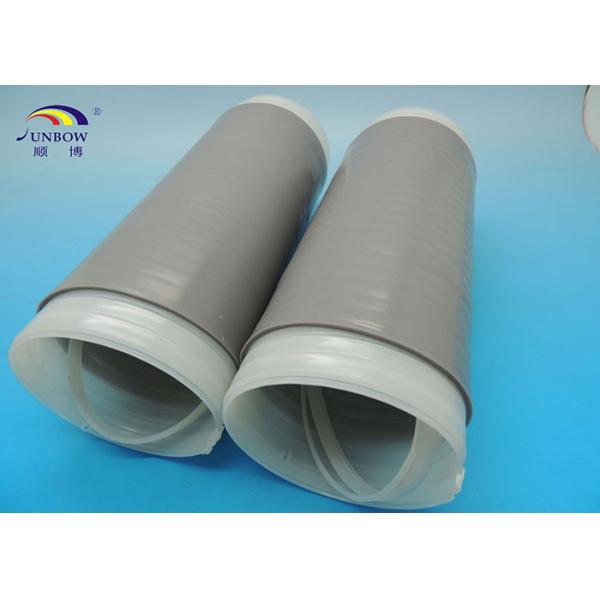

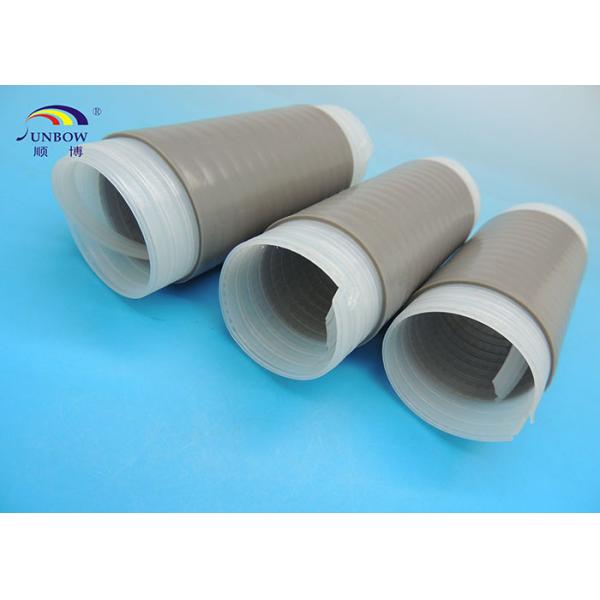

Cold shrink tubings are insulated, open-ended, rubber sleeve which is factory expanded and assembled

onto removable plastic cores. The core

is removed after the tubes have been positioned for installation over an inline connection, coupling cable

or terminations, allowing the tubes to shrink and form a water resistant seal. The cold shrink tubing are

made of liquid silicon rubber.

Dimension

ID* as Supplied (Min) /mm ID* after Recovered (Max) /mm Lengtd after Recovered(Nom)/mm Thickness after Recovered (±10%)/mm Application Range/mm
20 8 80 ~ 450 2±0.2 Ø10 ~ Ø 16
28 10 80 ~500 2.5±0.2 Ø12~ Ø 20
32 12 80 ~490 2.5±0.2 Ø13.2 ~ Ø22.4
32 13 80 ~490 2±0.2 Ø14 ~ Ø24
35 16 80 ~450 2±0.2 Ø18 ~ Ø29
40 18 80 ~450 2±0.2 Ø20 ~ Ø34
47 21 80 ~470 2±0.2 Ø23 ~ Ø41
53 25 80 ~500 2±0.2 Ø27~ Ø47
65 26 80 ~500 3±0.2 Ø28~ Ø50
70 30 80 ~500 3±0.2 Ø32 ~ Ø60
80 31 80 ~500 3±0.2 Ø33 ~ Ø72
80 36 80 ~500 3±0.2 Ø38 ~ Ø72
88 37 80 ~500 3±0.2 Ø39 ~ Ø80
104 42 80 ~500 3±0.2 Ø44 ~ Ø94
110 38 80 ~420 6±0.2 Ø40 ~ Ø100
110 60 80~420 6±0.2 Ø62 ~ Ø100

Competitive compared heat shrink tube

1. No heat required

2. Fast shrink in normal temperature

3. Easy to use

Power Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone RubberPower Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone RubberPower Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone RubberPower Grid Cold Shrink Tubing Cable Accessories with Liquid Silicone Rubber
